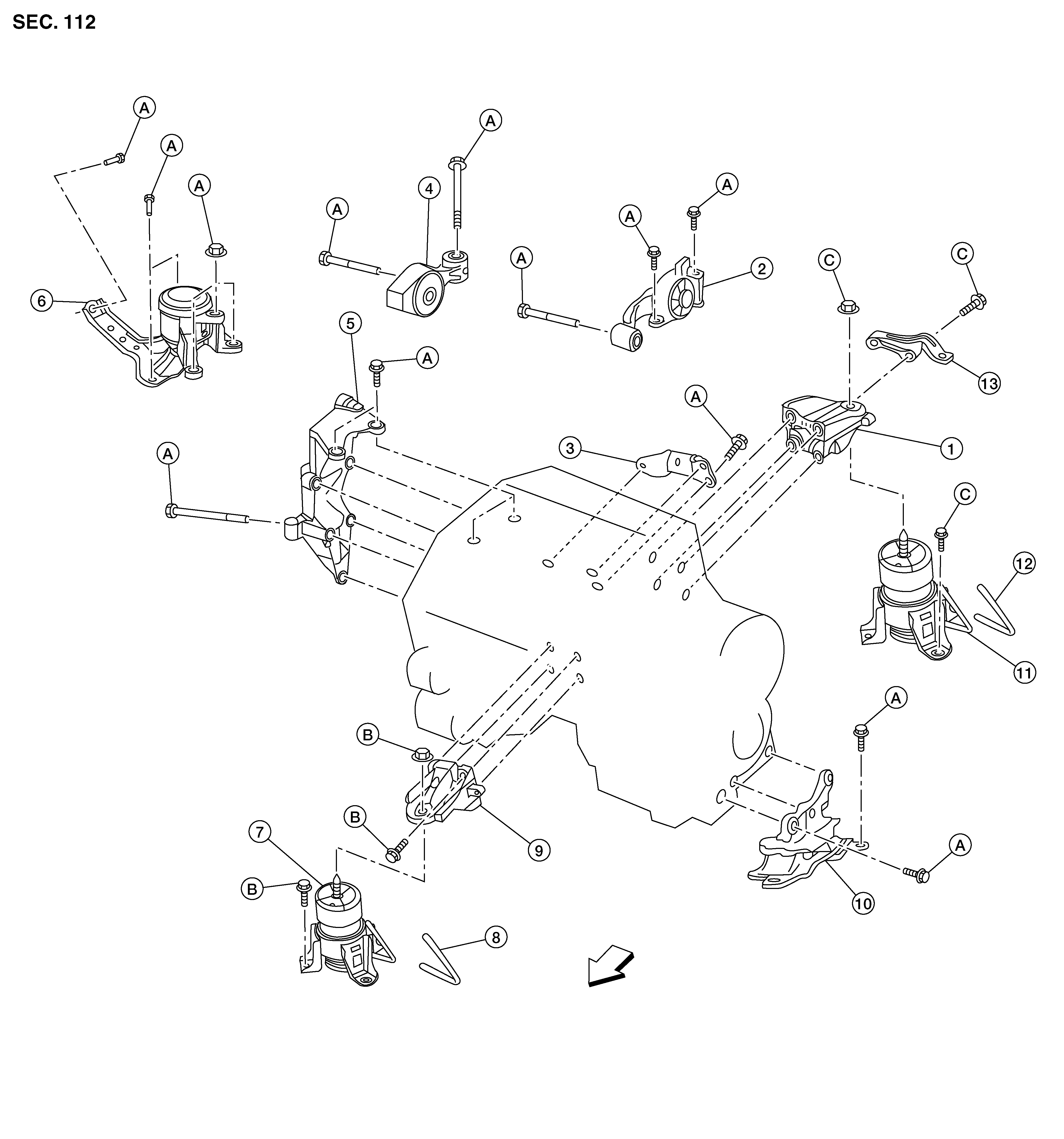

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Engine mounting bracket (rear) |
2. |
Rear torque rod |
3. |
Rear torque rod bracket |
|
4. |
Upper torque rod |
5. |
Engine mounting bracket (RH) |
6. |
Engine mounting insulator (RH) |
|
7. |
Engine mounting insulator (front) |
8. |
Harness connector |
9. |
Engine mounting bracket (front) |
|
10. |
Engine mounting insulator (LH) |
11. |
Engine mounting insulator (rear) |
12. |
Harness connector |
|
13. |
Engine mounting bracket support (rear) |
A. |
Refer to Removal and Installation . |
B. |
Refer to Removal and Installation (Engine Mount - Front) |
|
C. |
Refer to Removal and Installation (Engine Mount - Rear) |
|
Front |
