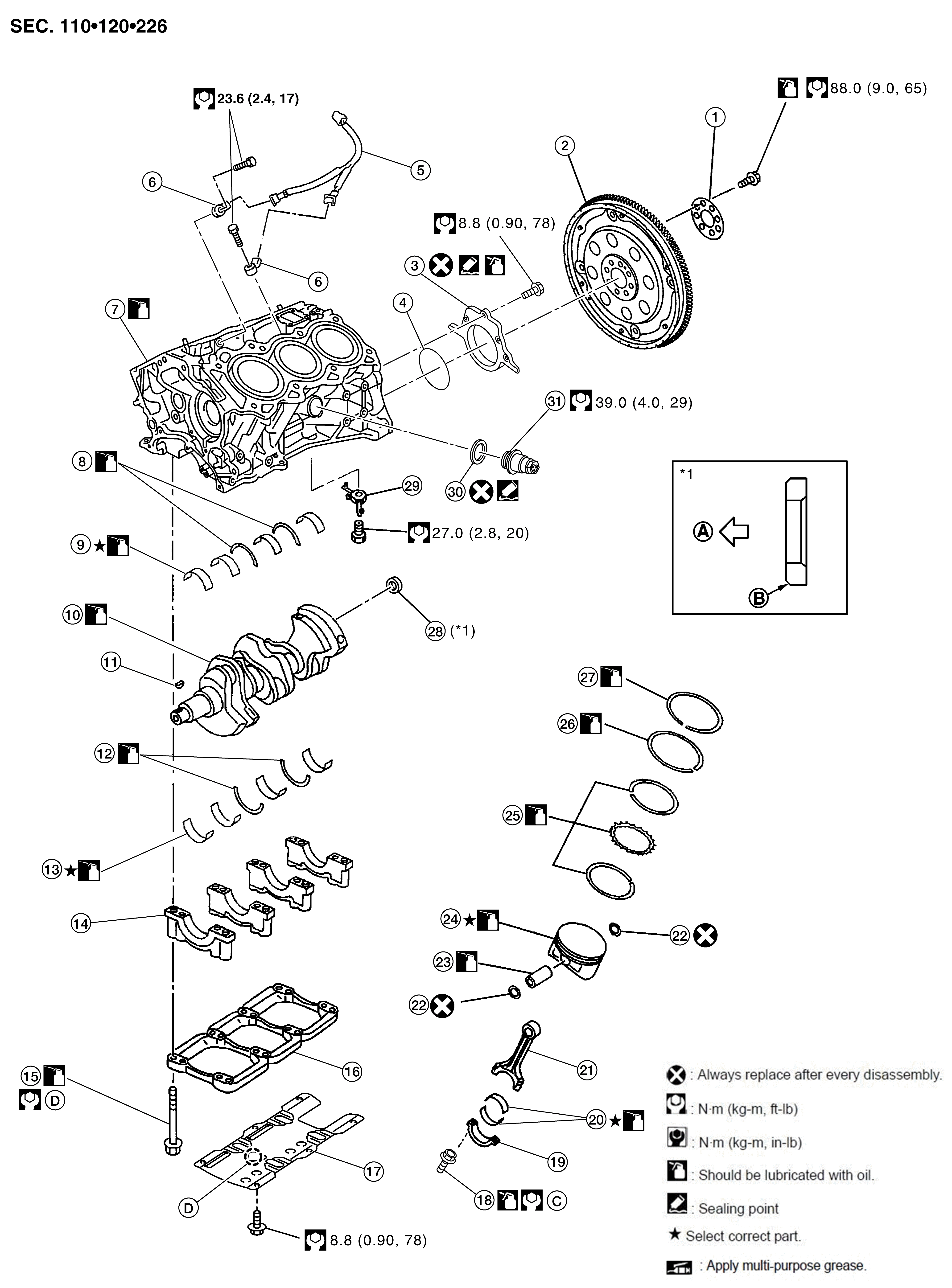

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Reinforcement plate |
2. |
Drive plate |
3. |
Rear oil seal retainer |
|
4. |
Rear oil seal |
5. |
Sub harness |
6. |
Knock sensor |
|
7. |
Cylinder block |
8. |
Thrust bearing (upper) |
9. |
Main bearing (upper) |
|
10. |
Crankshaft |
11. |
Crankshaft key |
12. |
Thrust bearing (lower) |
|
13. |
Main bearing (lower) |
14. |
Main bearing cap |
15. |
Main bearing cap bolt |
|
16. |
Main bearing beam |
17. |
Baffle plate |
18. |
Connecting rod bolt |
|
19. |
Connecting rod bearing cap |
20. |
Connecting rod bearing |
21. |
Connecting rod |
|
22. |
Snap ring |
23. |
Piston pin |
24. |
Piston |
|
25. |
Oil ring |
26. |
Second ring |
27. |
Top ring |
|
28. |
Pilot converter |
29. |
Oil jet |
30. |
Gasket (for Canada) |
|
31. |
Cylinder block heater (for Canada) |
A. |
Crankshaft side |
B. |
Chamfered |
|
C. |
Refer to ASSEMBLY . |
D. |
Front mark |
