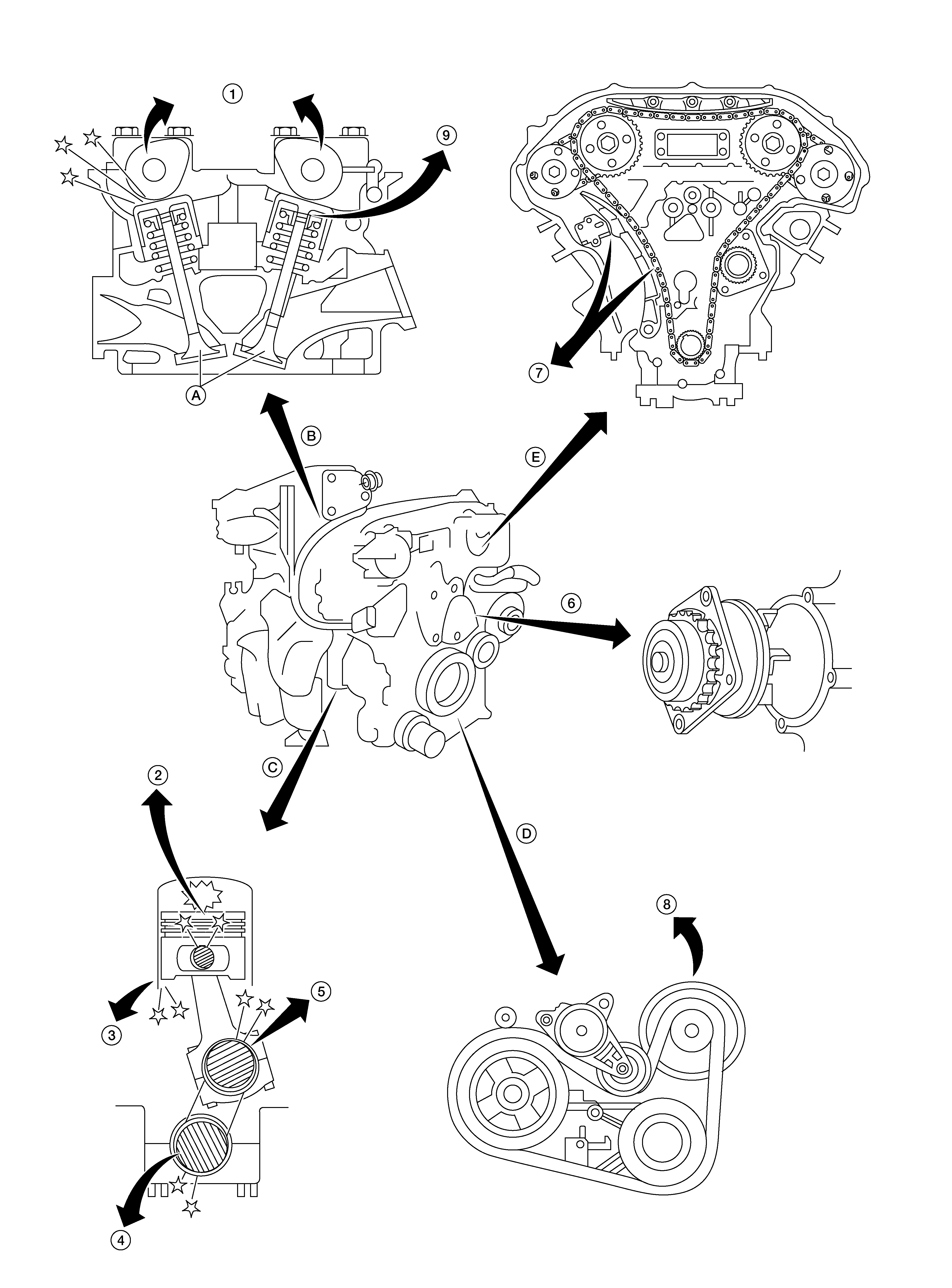

NVH Troubleshooting - Engine Noise
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Camshaft Bearing Noise |
2. |
Piston Pin Noise |
3. |
Piston Slap Noise |
|
4. |
Main Bearing Noise |
5. |
Connecting Rod Bearing Noise |
6. |
Water Pump Noise |
|
7. |
Timing Chain And Chain Tensioner Noise |
8. |
Drive Belt Noise (Sticking/Slipping) |
9. |
Tappet Noise |
|
A. |
Valve |
B. |
Valve Mechanism |
C. |
Rotation Mechanism |
|
D. |
Drive Belt |
E. |
Timing Chain |
