Removal and Installation (LH): Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room cover. Refer to Removal and Installation .
  2. Remove front air duct. Refer to Removal and Installation .
  3. Remove blow by hose from rocker cover.
  4. Remove camshaft position sensors.
    GNSALBIA0258Z-258Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Handle carefully to avoid dropping and shocks.
    • Do not disassemble.
    • Do not allow metal powder to cling to magnetic part at sensor tip (A).
    • Do not place sensors in a location where they are exposed to magnetism.
  5. Remove the ignition coils. Refer to Removal and Installation (LH) .
    CAUTION: Do not shock ignition coils.
  6. Remove oil level gauge guide.
  7. Remove (LH) rocker cover bolts from cylinder head in the reverse order as shown, below.

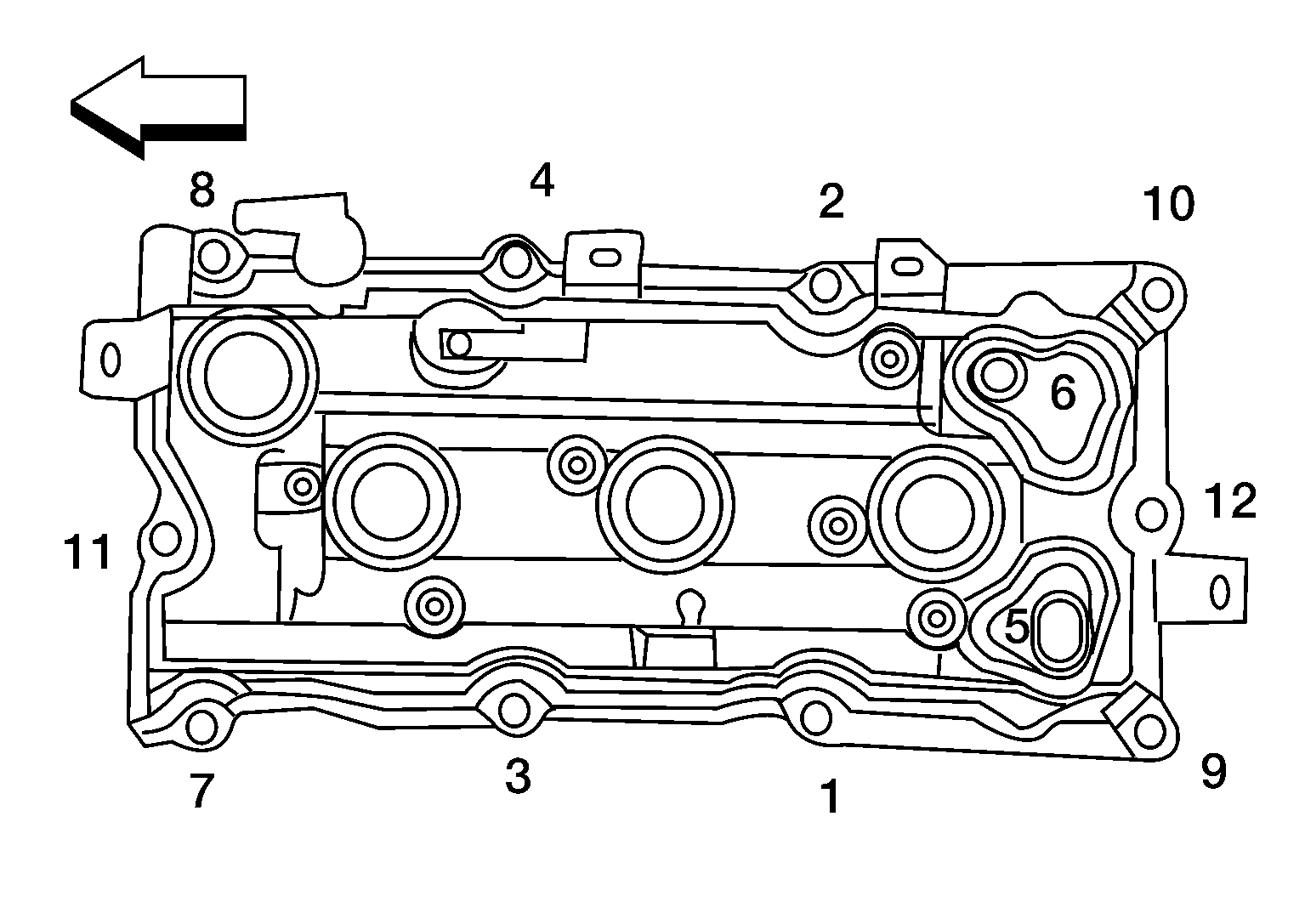

    Fig 1: Rocker Cover Bolt Tightening Sequence
    GNSAWBIA0703Z-703Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Engine front
  8. Remove the rocker cover and gasket.
