Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

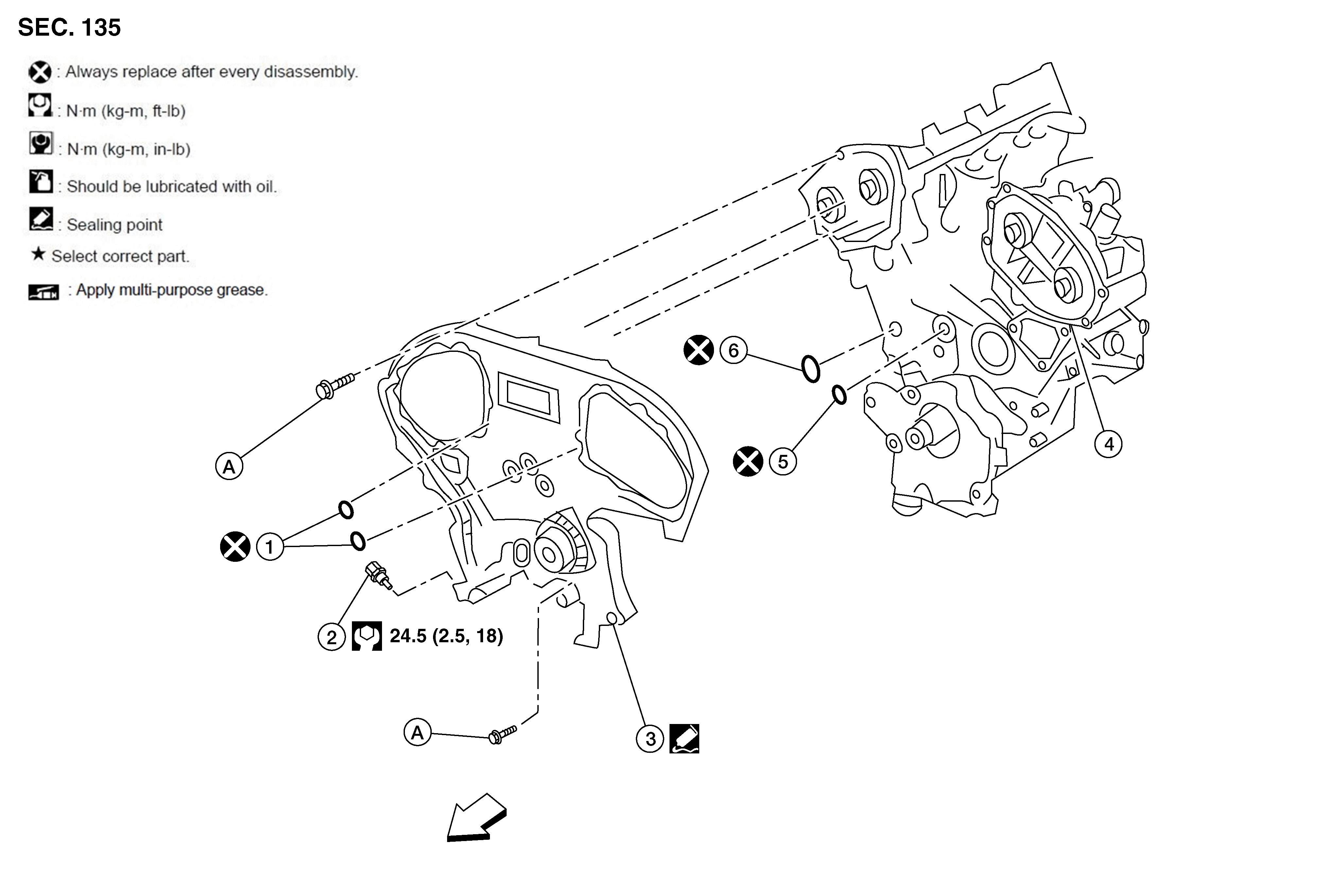

Fig 1: Rear Timing Chain Case With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Oil temperature sensor	3.	Rear timing chain case
4.	Cylinder block	5.	O-ring	6.	O-ring
A.	Refer to INSTALLATION .		Engine front
