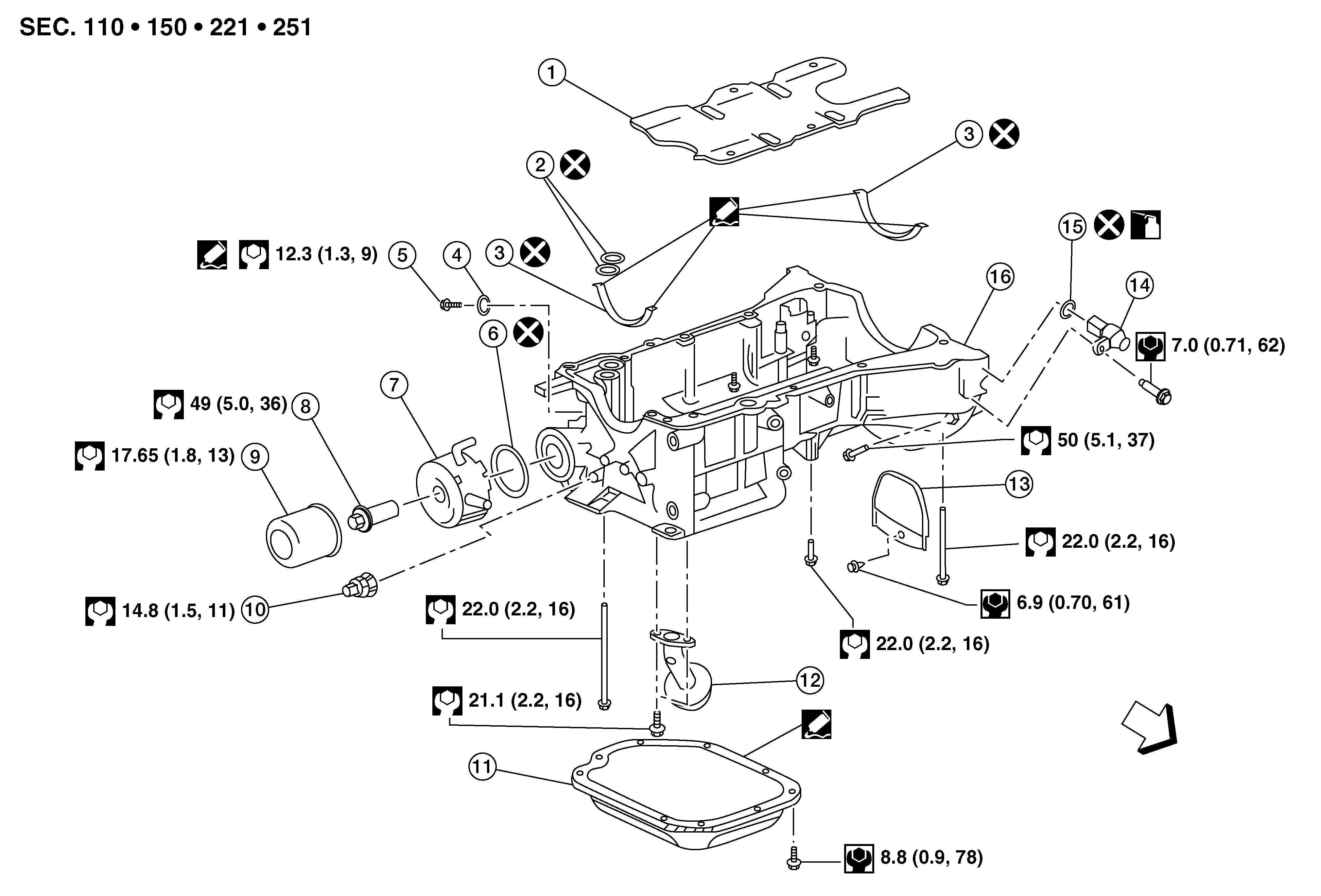

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Oil pan baffle |
2. |
O-ring |
3. |
Upper oil pan gasket |
|
4. |
Blind plug O-ring |
5. |
Blind plug |
6. |
Oil cooler O-ring |
|
7. |
Oil cooler |
8. |
Oil cooler connection |
9. |
Oil filter |
|
10. |
Oil pressure sensor |
11. |
Lower oil pan |
12. |
Oil strainer |
|
13. |
Rear cover plate |
14. |
Crankshaft position sensor (POS) |
15. |
O-ring |
|
16. |
Upper oil pan |
|
Front |
