Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

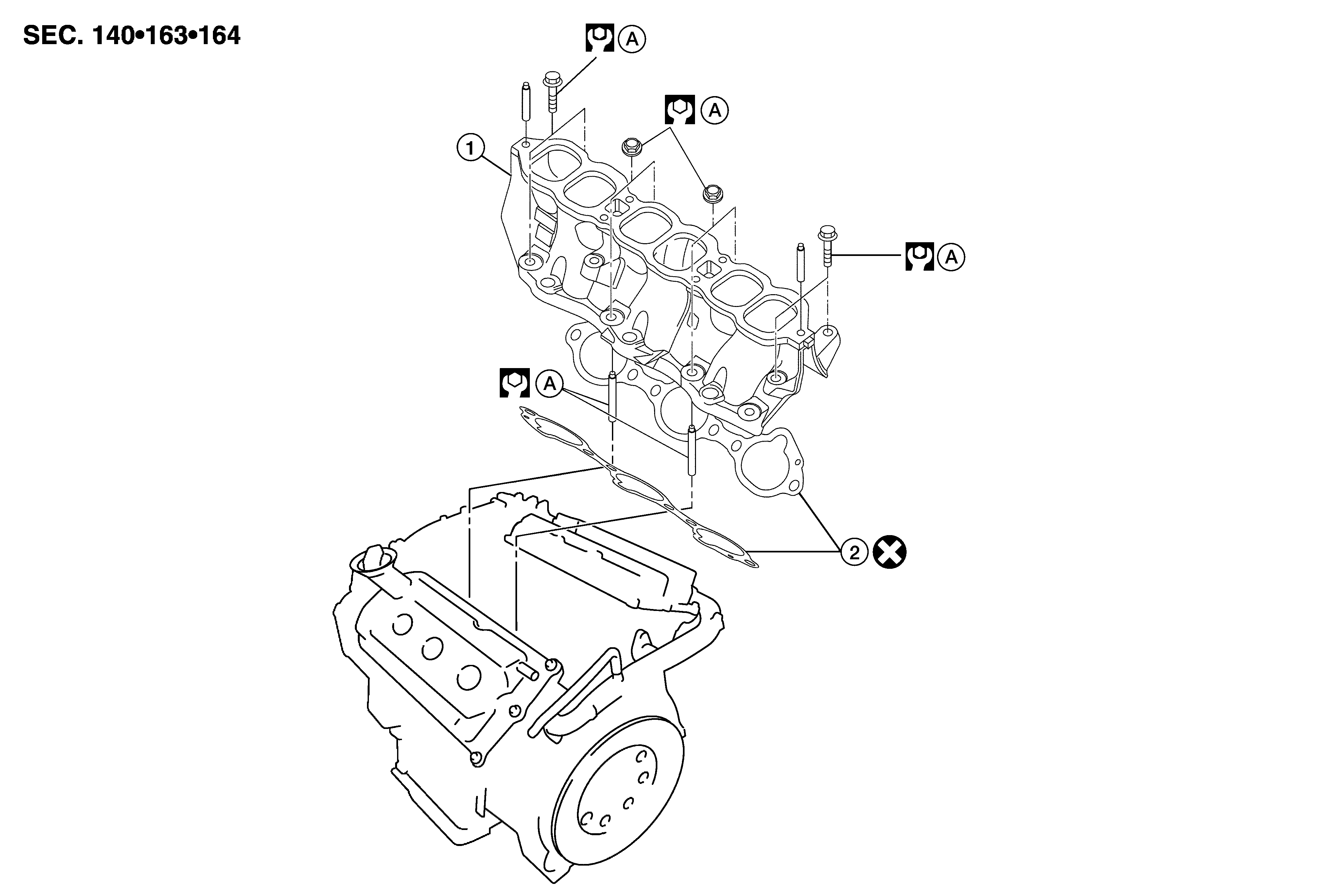

GNSDB116427Courtesy of NISSAN NORTH AMERICA, INC.

1.

Intake manifold

2.

Intake manifold gasket

A.

Refer to INSTALLATION
