Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not reuse intake manifold collector gasket or electric throttle control actuator gasket.

Installation is in the reverse order of removal.

Tighten intake manifold collector bolts in the order as shown, below.

Fig 1: Intake Manifold Collector Bolt And Nut Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

Intake manifold collector nuts and bolts

11.0 N.m (1.1 kg-m, 8 ft-lb)

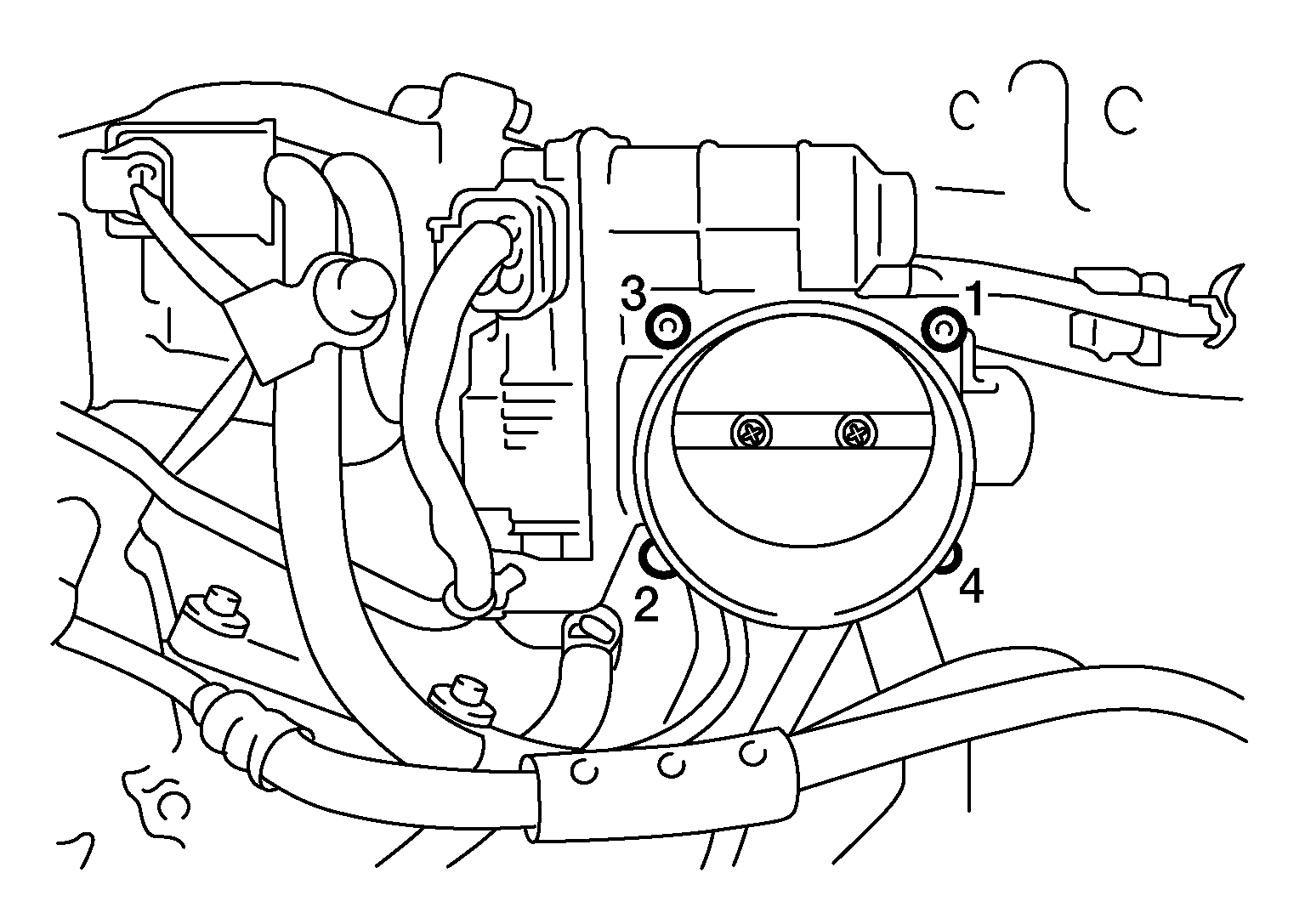

Tighten electric throttle control actuator bolts in the order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Electric throttle control actuator bolts

8.4 N.m (0.86 kg-m, 74 in-lb)

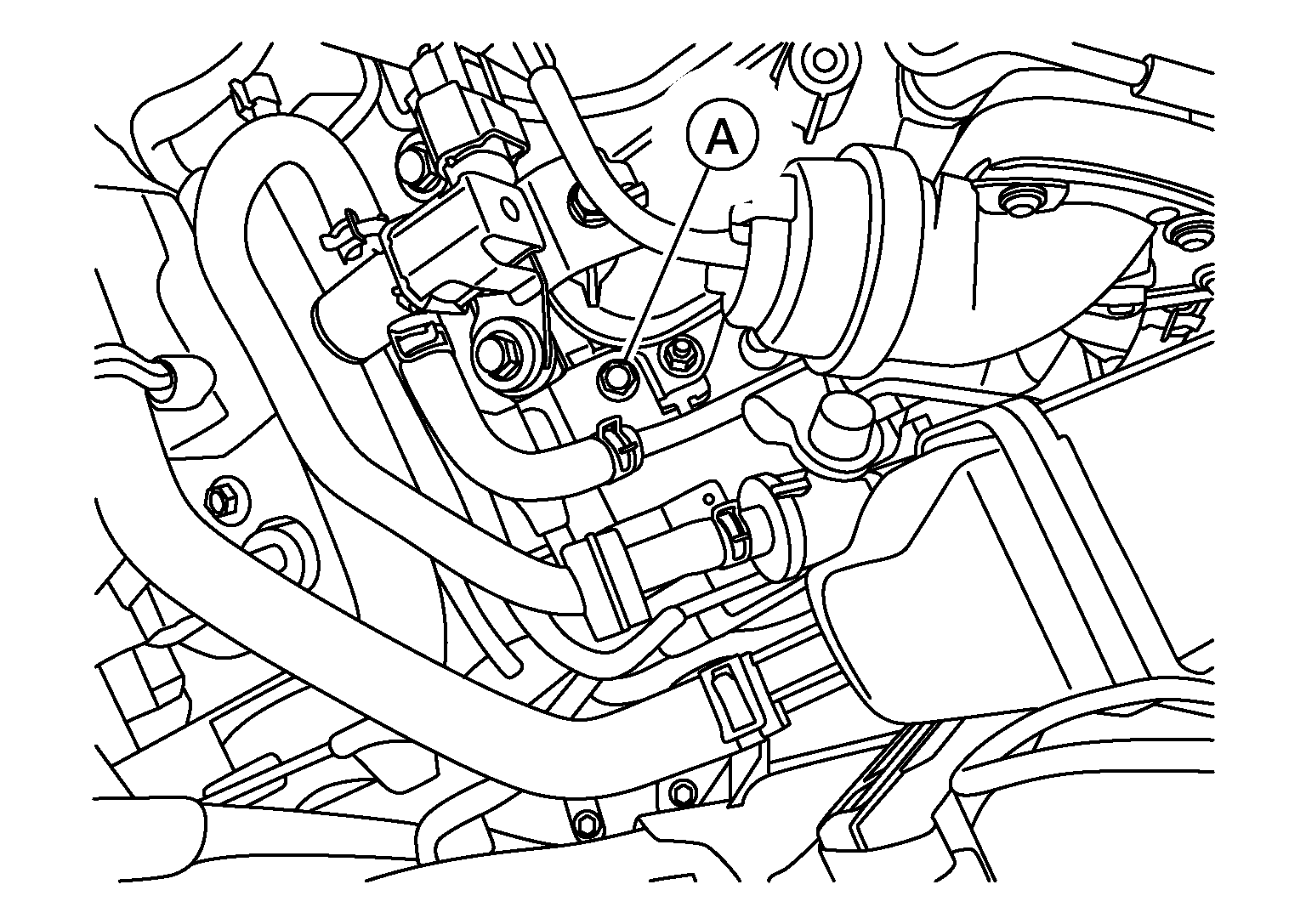

Tighten bolt (A) to the specification as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt (A)

9 N.m (0.92 kg-m, 79.66 in-lb)

NOTE: After installation, it is necessary to re-calibrate the electric throttle control actuator as follows:

Perform the "Throttle Valve Closed Position Learning" when harness connector of the electric throttle control actuator is disconnected. Refer to Description .
Perform the "Idle Air Volume Learning" when the electric throttle control actuator is replaced. Refer to Description .

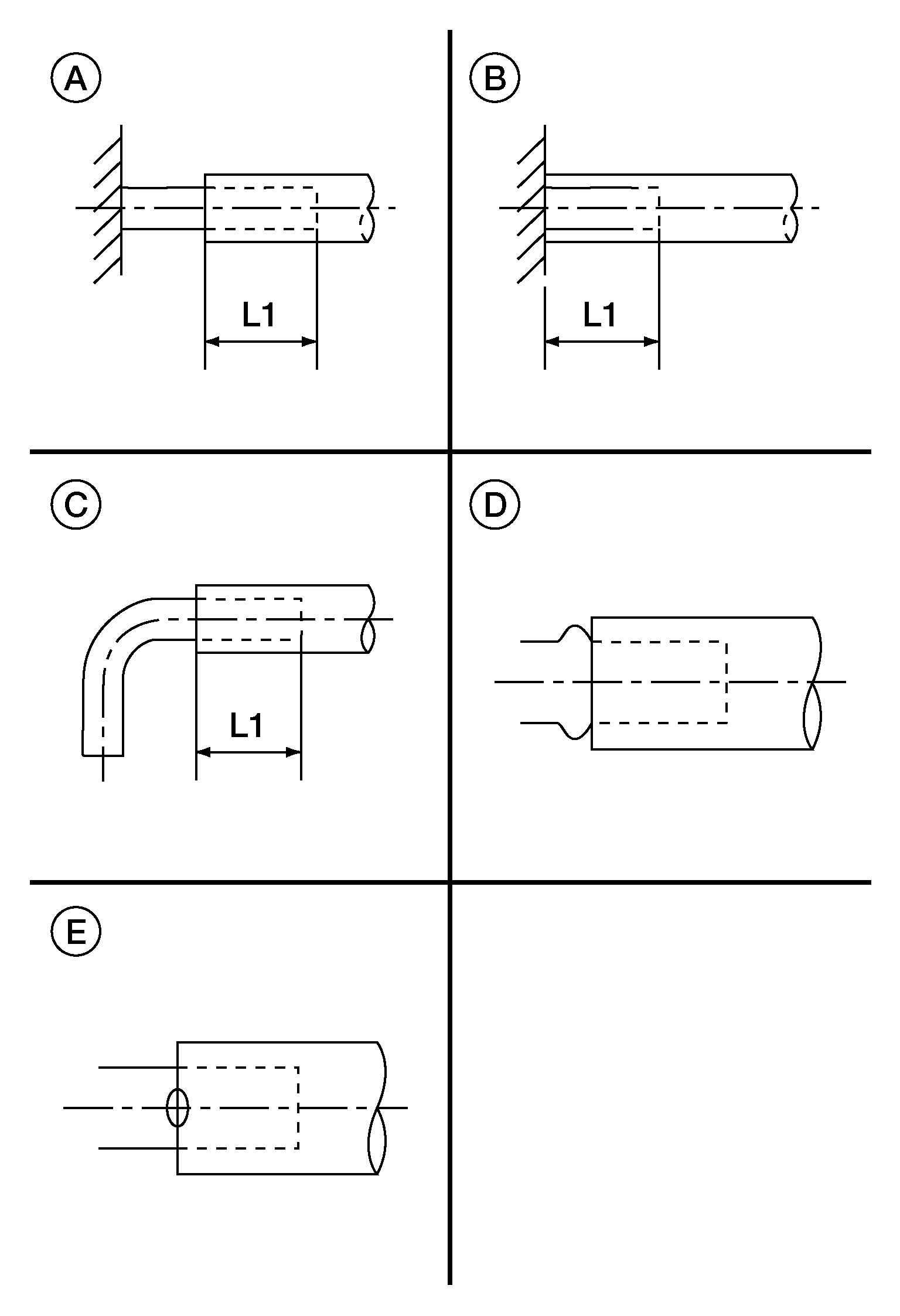

NOTE: When a stopper is provided, insert hose up to the bulge or until half of the marking is concealed. When a stopper is not provided and connector is shorter than L1, insert it up to the end.

Hose inside diameter		Hose outside diameter	L1
A.	9.5 mm (0.37 in)	15.5 mm (0.61 in)	25 mm +5 mm/ -0 mm (0.98 in +0.20 in/ -0 in)
B.	6.0 mm (0.24 in)	12.0 mm (0.47 in)	20 mm (0.79 in)
C.	7.5 mm (0.28 in)	13.5 mm (0.53 in)	25 mm +5 mm/ -0 mm (0.98 in +0.20 in/ -0 in)

Courtesy of NISSAN NORTH AMERICA, INC.

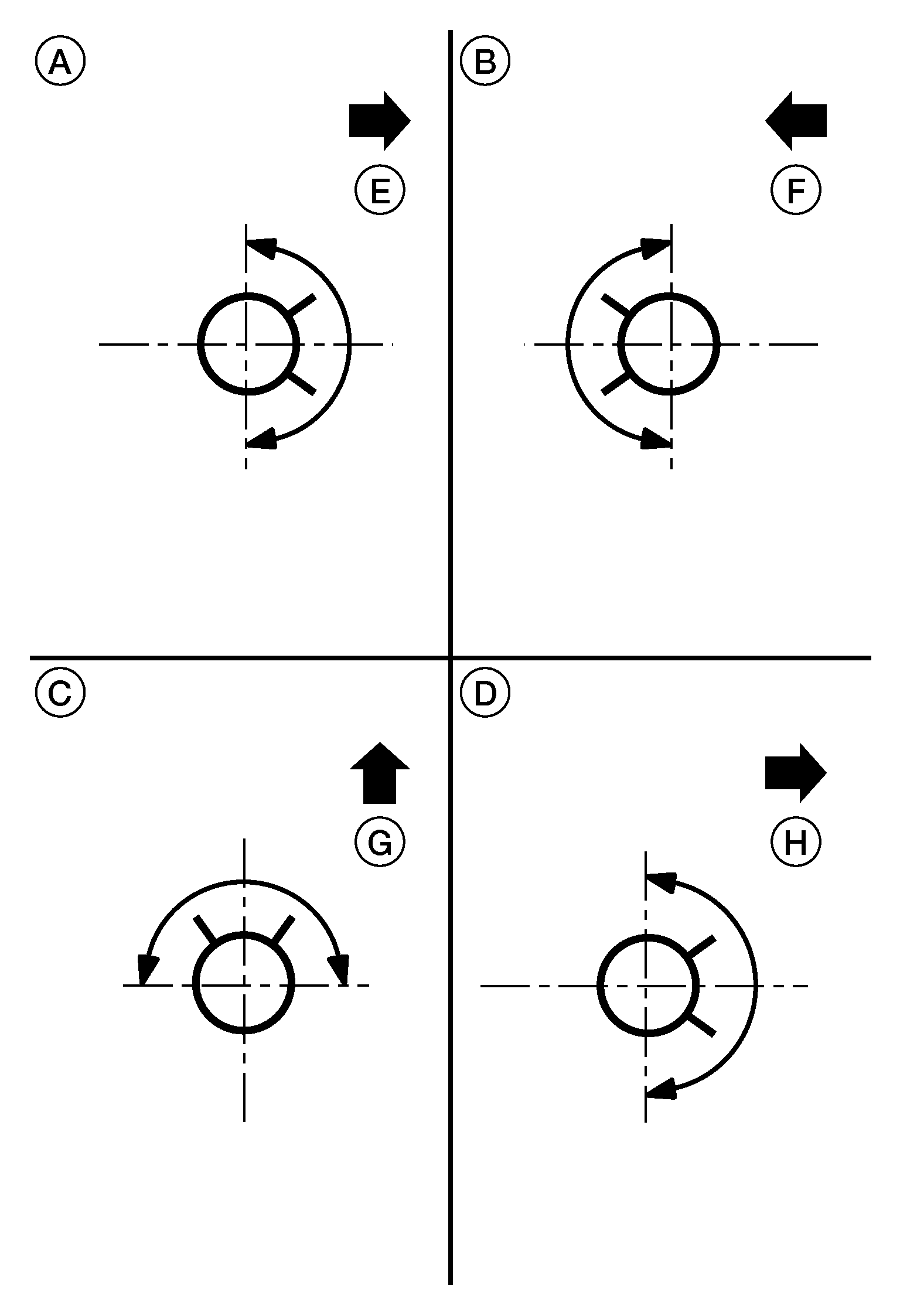

NOTE: Refer to the following when installing EVAP hose clamps.

Hose name	Hose end	Direction of paint mark	Direction of hose clamp tab
EVAP hose 1	EVAP canister purge volume control solenoid valve side	Upward	Upward (C)
EVAP hose 1	EVAP tube side	-	Upward (C)
EVAP hose 2	EVAP canister purge volume control solenoid valve side	Upward	Front ward
EVAP hose 2	EVAP service port valve side (For Mexico) or Vacuum delay valve side (For United States and Canada)	-	Backward
EVAP hose 3	EVAP service port valve side (For Mexico) or Vacuum delay valve side (For United States and Canada)	-	Backward
EVAP hose 3	EVAP canister tube	Forward	Rightward
EVAP hose 4	EVAP tube side	-	Front ward
EVAP hose 4	Intake manifold collector side	Backward	Backward

Courtesy of NISSAN NORTH AMERICA, INC.

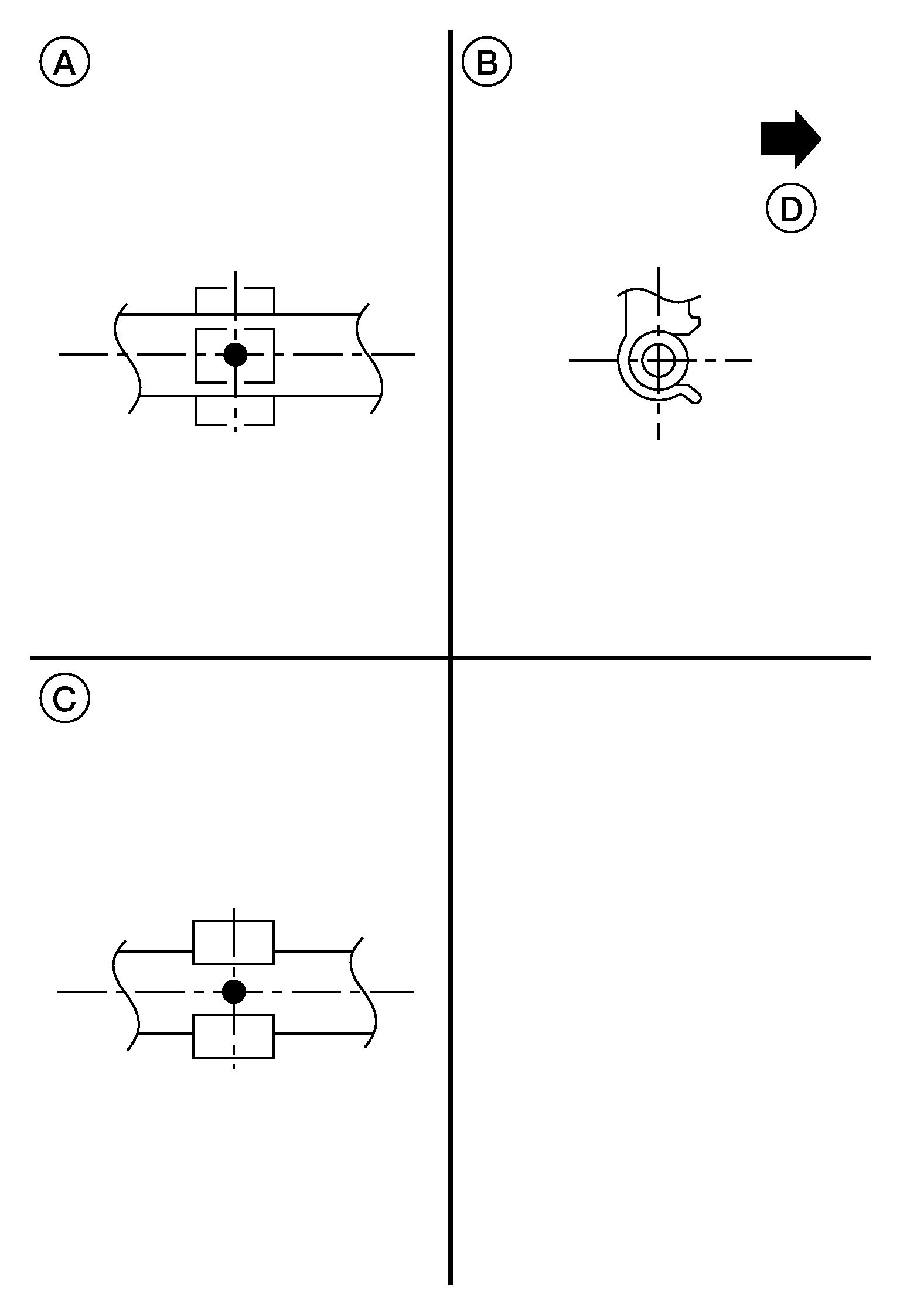

NOTE: Refer to the following when installing hose clips.

A.	Hose clip 1
B.	Hose clip 2 (lower)
C.	Hose clip 2 (upper)
D.	Car LH side

Courtesy of NISSAN NORTH AMERICA, INC.
