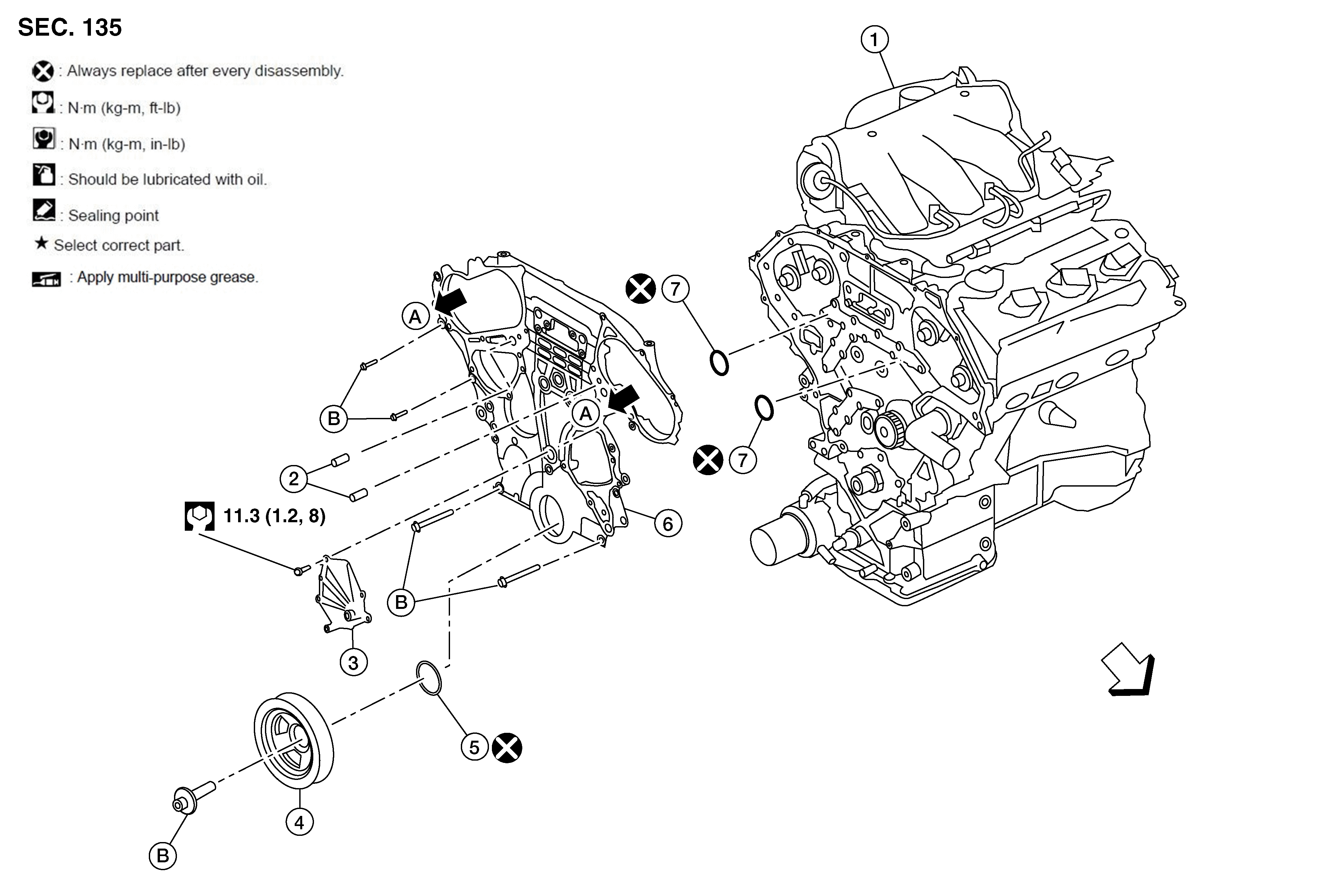

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Engine assembly |
2. |
Front timing chain case oil filter |
3. |
Water pump cover |
|
4. |
Crankshaft pulley |
5. |
Front oil seal |
6. |
Front timing chain case |
|
7. |
O-ring |
A. |
To valve timing control cover (bank 1), Refer to Valve Timing Control Cover (bank 1) . To valve timing control cover (bank 2), Refer to Valve Timing Control Cover (bank 2) . |
B. |
Refer to Removal and Installation |
|
|
Front |
