Removal and Installation (bank 1): Installation
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
Do not reuse exhaust manifold gaskets.

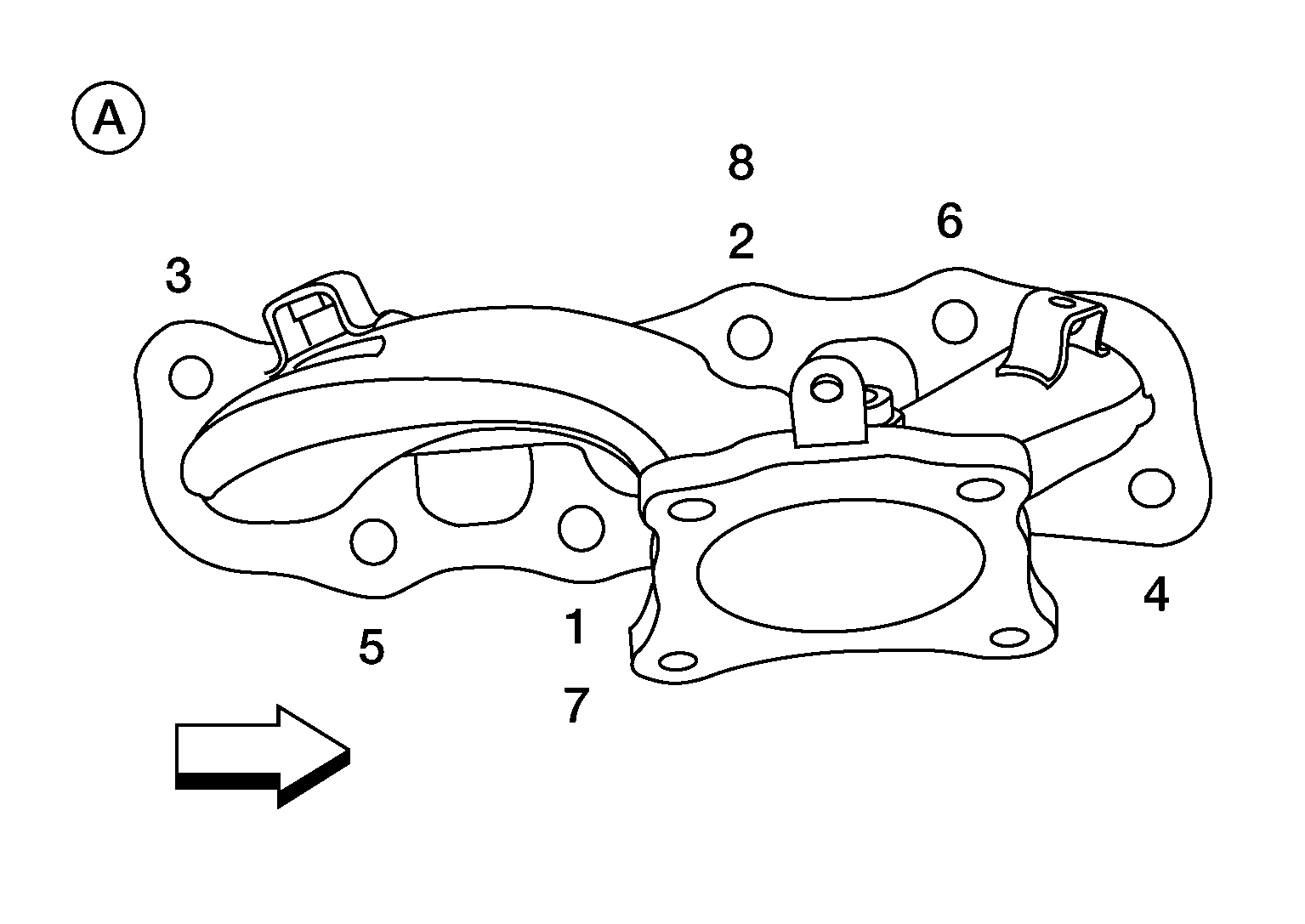

- Install the exhaust manifold nuts in the order as shown, below (A).
: Engine front
NOTE: Number 7 and 8 are tightened a second time.CAUTION:- Before installing a heated oxygen sensor 2 or air fuel ratio (A/F) sensor 1, clean the exhaust manifold threads using the oxygen sensor thread cleaner tool, and apply anti-seize lubricant.
Tool numbers
: J-43897-18
: J-43897-12
- Do not over-tighten the air fuel ratio (A/F) sensor 1 or heated oxygen sensors 2. Doing so may cause damage.
Tool numbers
: KV10114400 (J-38365)
: KV991J0050 (J-44626)
- Before installing a heated oxygen sensor 2 or air fuel ratio (A/F) sensor 1, clean the exhaust manifold threads using the oxygen sensor thread cleaner tool, and apply anti-seize lubricant.
