Inspection After Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Surface Distortion

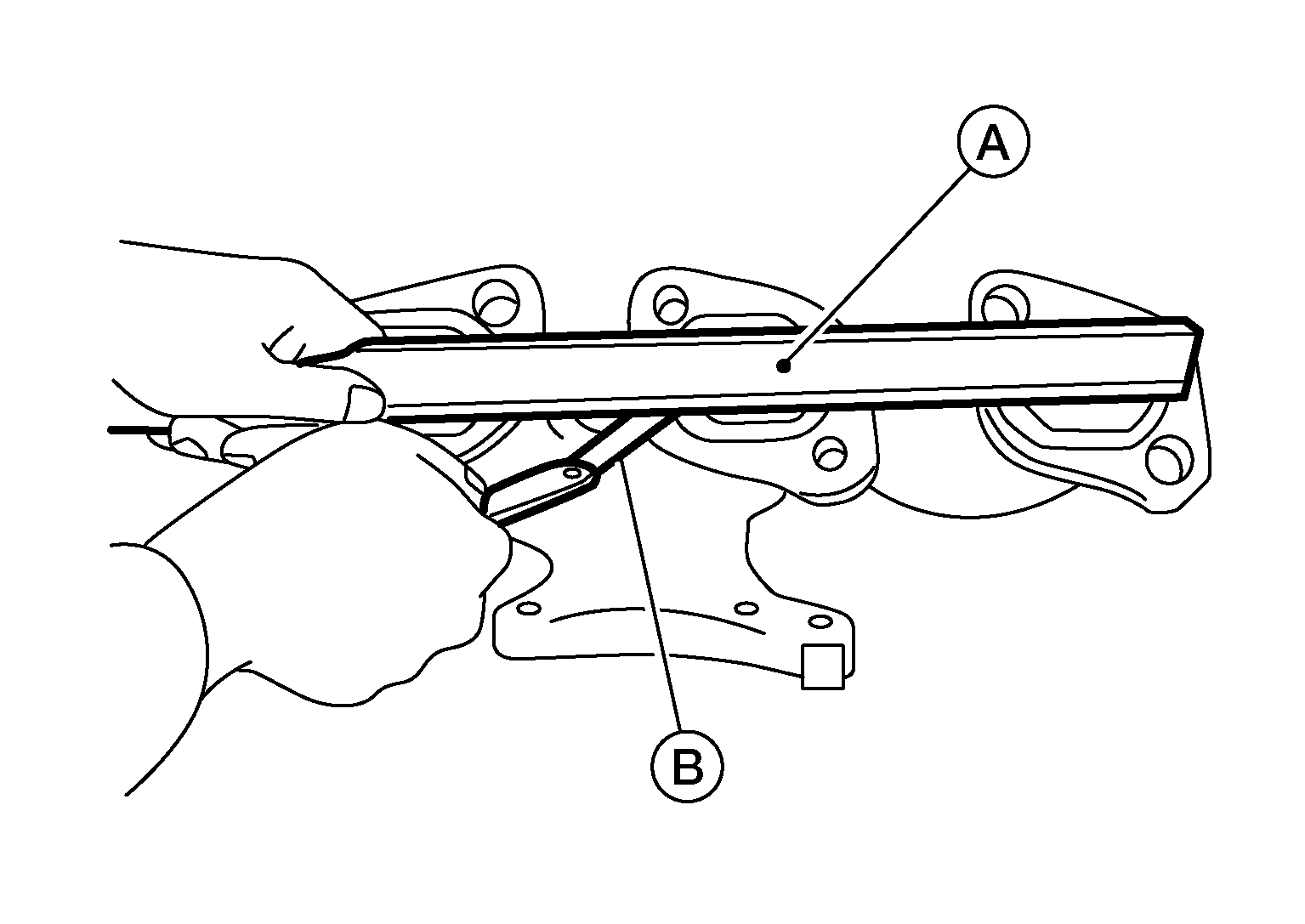

- Use suitable tools (A/B) to check the flatness of the exhaust manifold mating surfaces.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Limit
|
: 0.3 mm (0.012 in)
|
- Replace the exhaust manifold if the measurement exceeds specifications.
