Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE: Do not allow oil to get on mounting insulators. Be careful not to damage mounting insulators.

Install the engine mount insulator (rear).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove front drive shaft assemblies from vehicle. Refer to Removal and Installation (LH) and Removal and Installation (RH) .

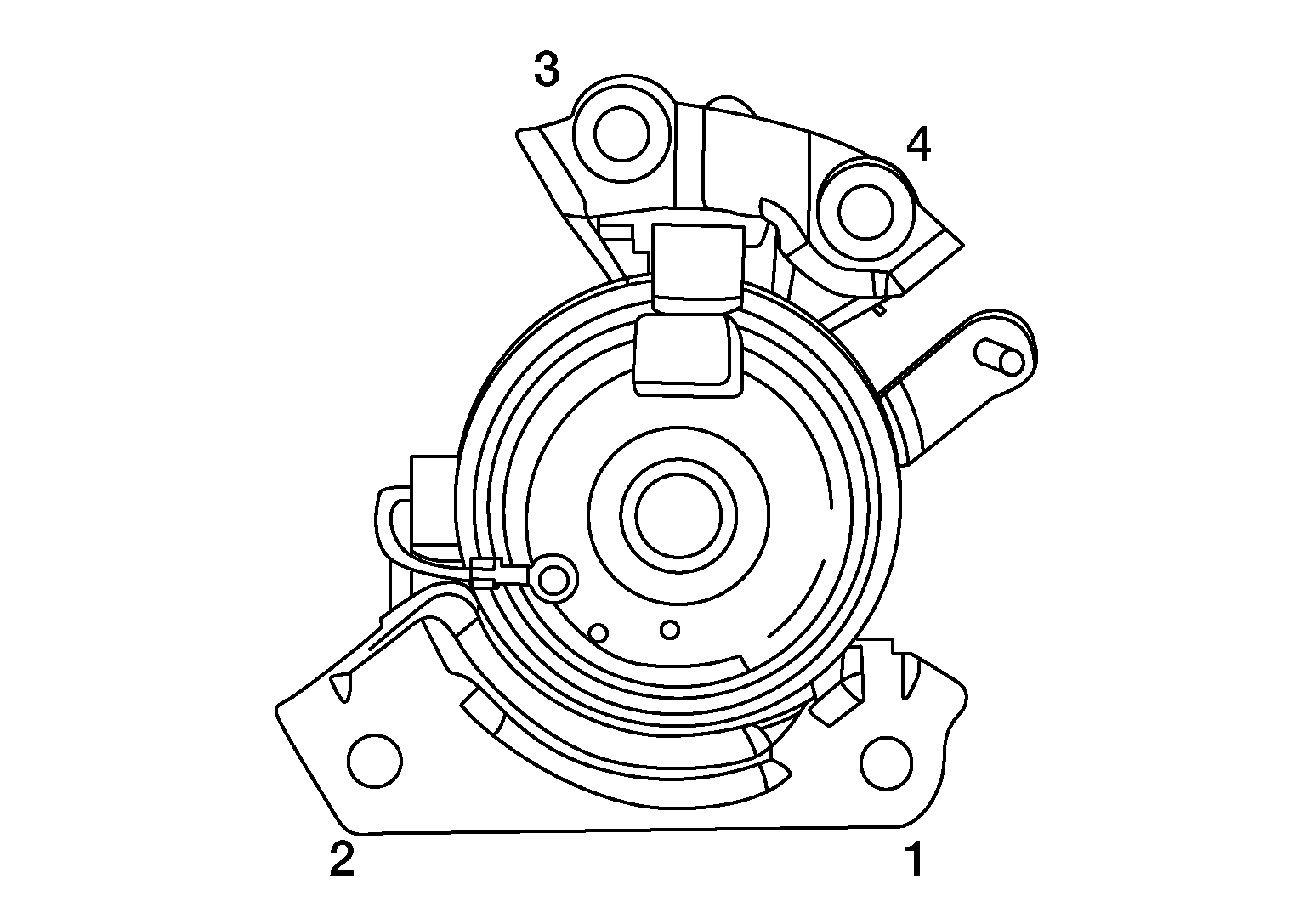

Install the engine mount insulator (rear) to the front suspension member as follows:

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
1. Temporarily tighten the bolts in the sequence as shown, above.
2. Tighten the engine mount insulator (rear) bolts to specification in the sequence as shown. Refer to Removal and Installation .
  CAUTION: Check engine mount insulator is seated properly before tightening.
Tighten engine mount insulator (rear) ground strap bolt to specification. Refer to Removal and Installation .
Install the engine mount bracket (rear) to the engine block.

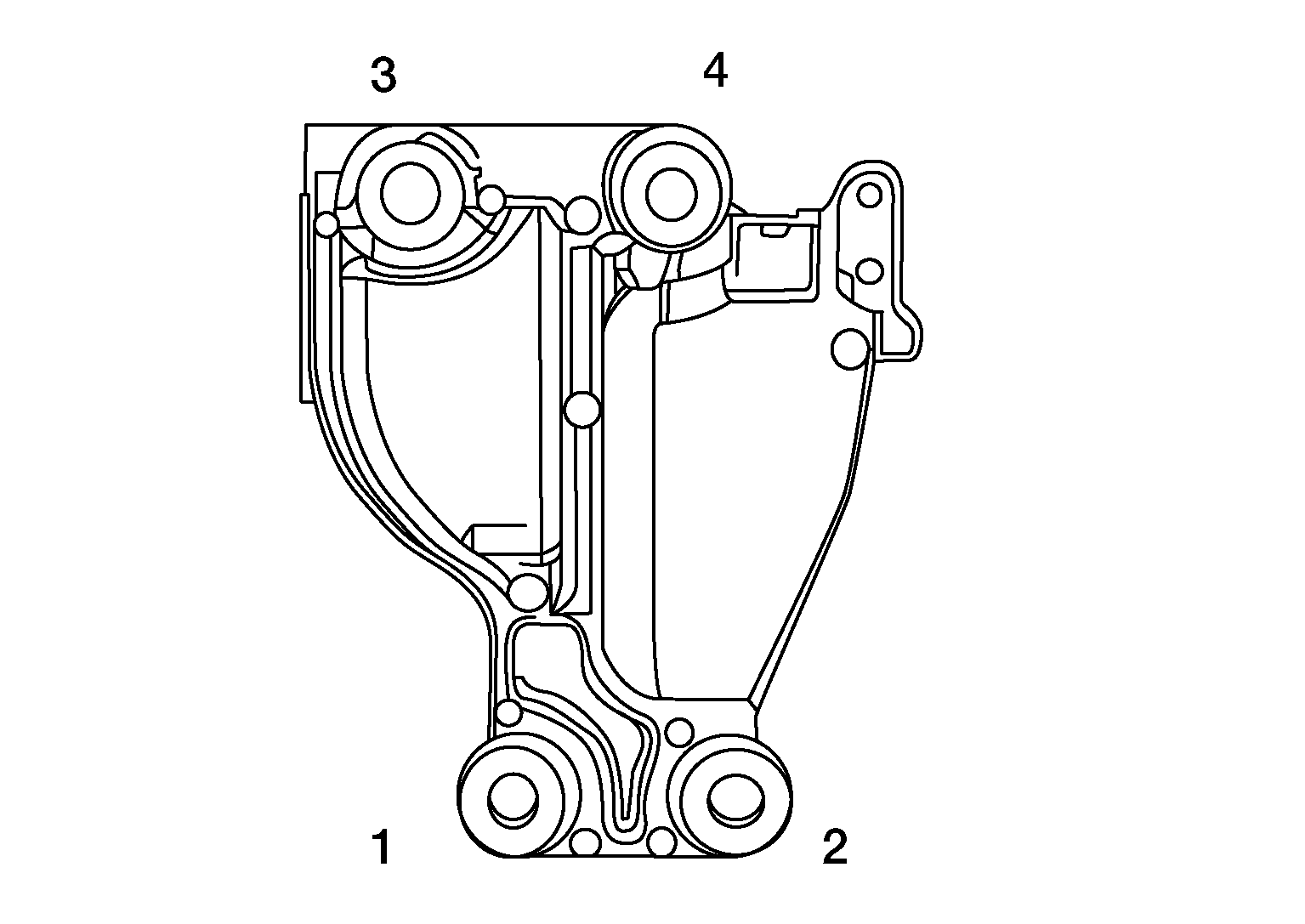

Tighten the engine mount bracket (rear) to the engine as follows:

Courtesy of NISSAN NORTH AMERICA, INC.

: Engine front
1. Temporarily tighten the bolts in the sequence as shown, above.
2. Tighten the engine mount bracket (rear) bolts to specification in the sequence as shown. Refer to Removal and Installation .
Install the engine mount insulator nut (rear) (A) and tighten to specification. Refer to Removal and Installation .

Courtesy of NISSAN NORTH AMERICA, INC.
Install a new throttle body gasket.
