Valve Guide Clearance

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

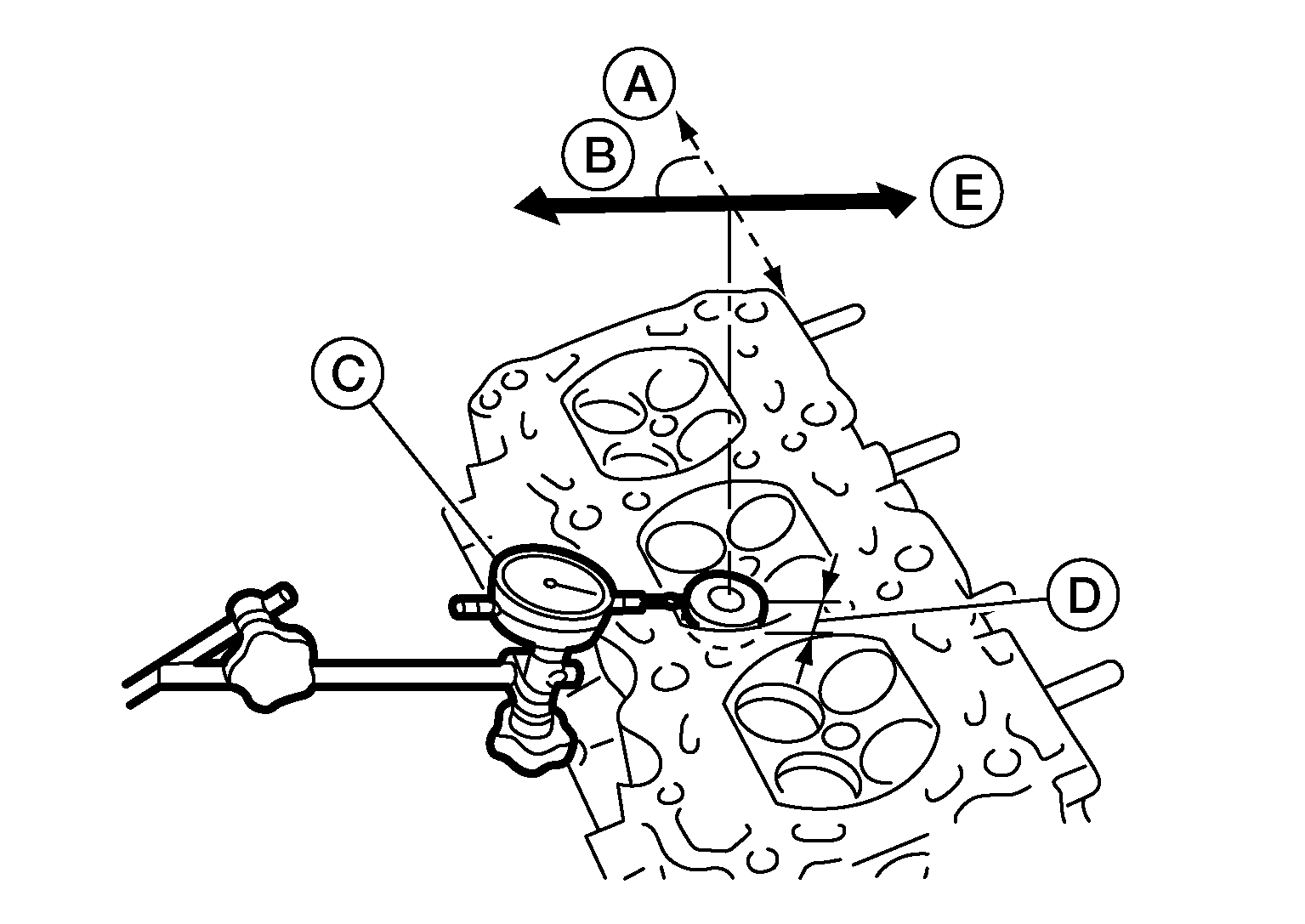

  1. Measure valve deflection (D) using a suitable tool (C) as shown, below (Valve and valve guide mostly wear in this direction). Measuring direction (E) should be 90° (B) of camshaft direction (A). Refer to Cylinder Head .

    Maximum deflection

    : 0.25 mm (0.010 in)
    GNSAWBIA2405Z-405Courtesy of NISSAN NORTH AMERICA, INC.

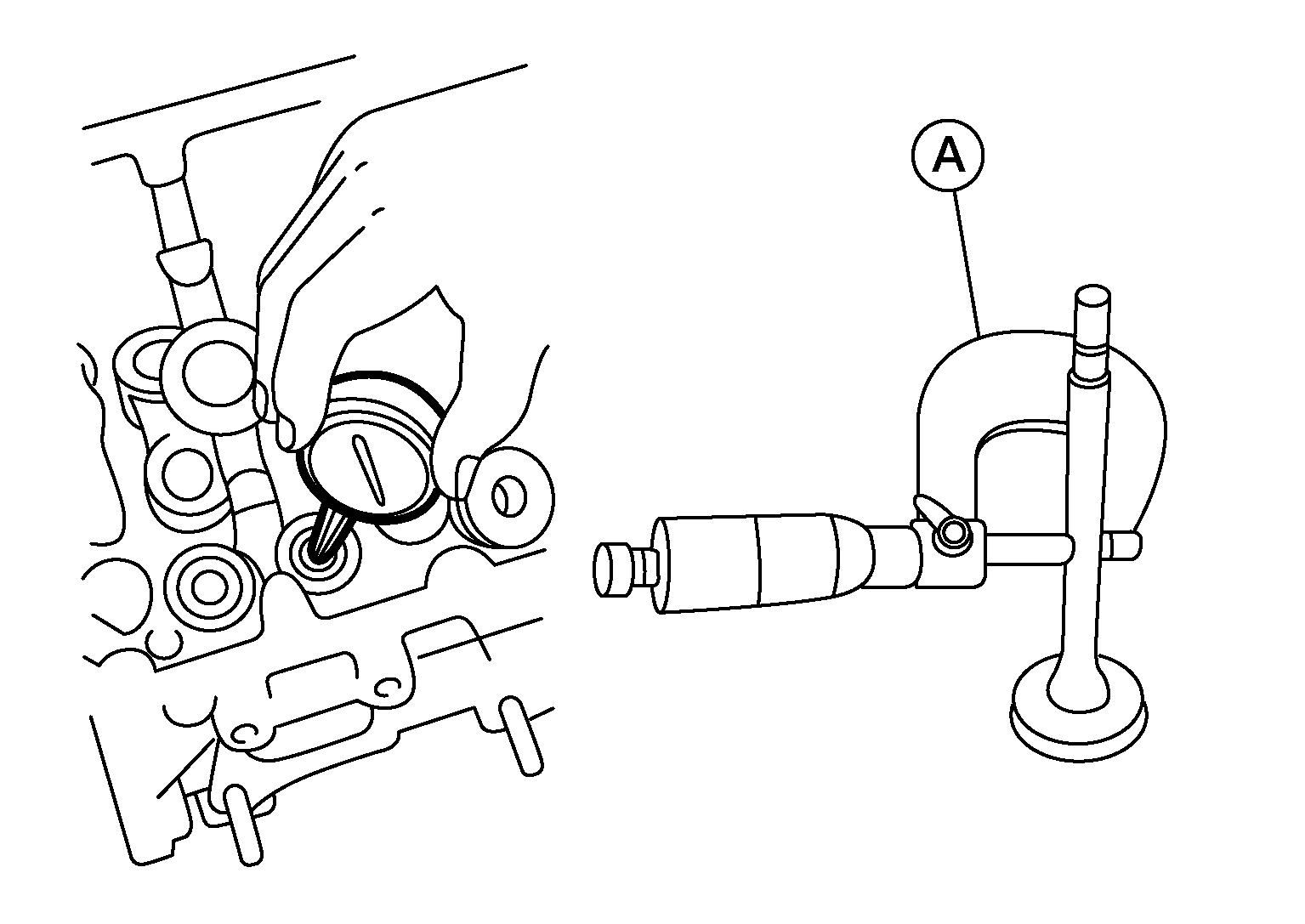

  2. If it exceeds the limit, check valve to valve guide clearance with a suitable tool (A).
    GNSAWBIA2406Z-406Courtesy of NISSAN NORTH AMERICA, INC.
    1. Measure valve stem diameter and valve guide inner diameter. Refer to Cylinder Head .
    2. Check that clearance is within specification.

      (Valve guide clearance) = (Valve guide inner diameter) - (Valve stem diameter). Refer to Cylinder Head .

    3. If it exceeds the limit, replace valve or valve guide.
