Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove spark plug.
Remove valve lifter.
- Identify installation positions and store them without mixing them up.
Remove valve collet.

Courtesy of NISSAN NORTH AMERICA, INC.
- Compress valve spring and remove valve collet with magnet hand using suitable tool (A)
CAUTION: When working, take care not to damage valve lifter bore.

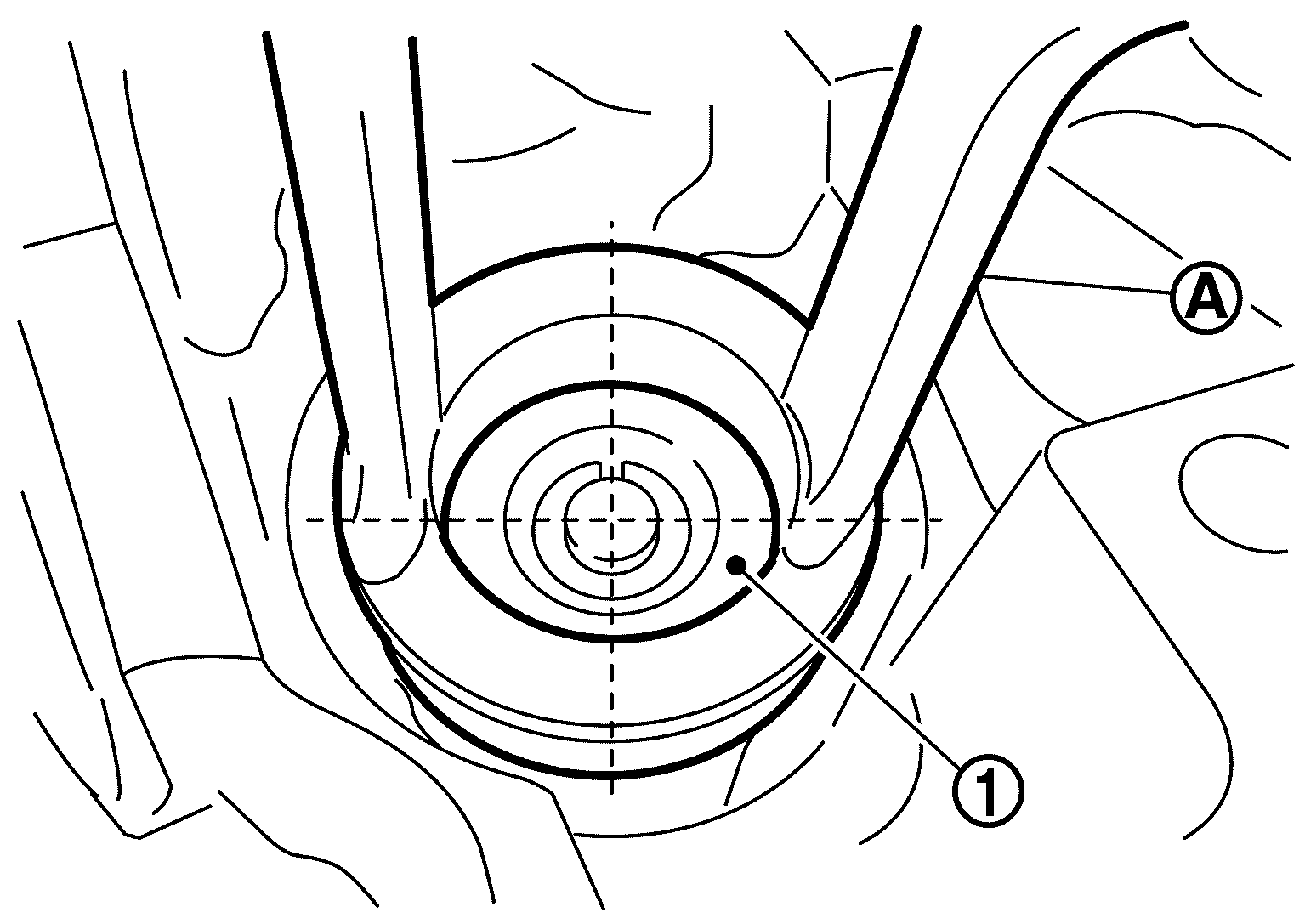

- Install a suitable tool (A) in the center of the valve spring retainer (1) to remove it.
Courtesy of NISSAN NORTH AMERICA, INC.
Remove valve spring retainer, valve spring and valve spring seat.
Push valve stem to combustion chamber side and remove valve.
- Identify installation positions, and store them without mixing them up.
Remove valve oil seals using suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.
If valve seat must be replaced, refer to Inspection After Disassembly .
If valve guide must be replaced, refer to Inspection After Disassembly .
Remove spark plug tube, as necessary.
- Using pair of pliers, pull spark plug tube out of cylinder head.
CAUTION:
- Take care not to damage cylinder head.
- Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless absolutely necessary.
