Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing chains. Refer to Removal and Installation .
Remove camshaft position brackets (RH shown, LH similar).

Courtesy of NISSAN NORTH AMERICA, INC.

Remove the camshaft brackets and the camshafts.

Courtesy of NISSAN NORTH AMERICA, INC.

Mark the camshafts, camshaft brackets, and bolts so they are placed in the same position and direction for installation.

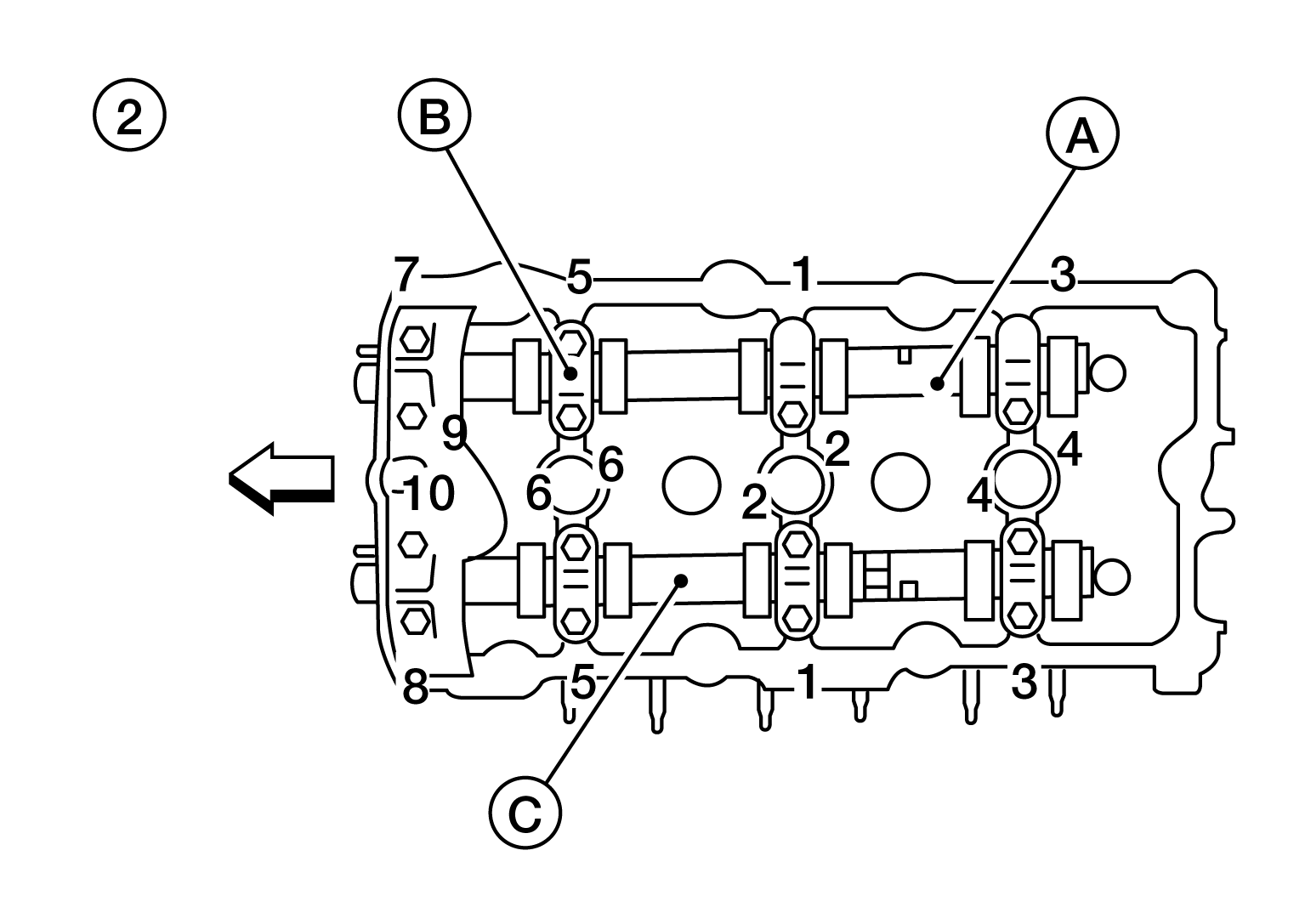

Equally loosen the camshaft bracket bolts in several steps in the reverse order as shown, above.

(1)	: Cylinder head (RH)
(A)	: Camshaft (EXH) (RH)
(B)	: Camshaft (INT) (RH)
(C)	: Camshaft bracket
	: Engine front

(2)	: Cylinder head (LH)
(A)	: Camshaft (INT) (LH)
(B)	: Camshaft bracket
(C)	: Camshaft (EXH) (LH)
	: Engine front

Courtesy of NISSAN NORTH AMERICA, INC.

Remove valve lifters, if necessary.
NOTE: Identify installation positions to ensure proper installation.

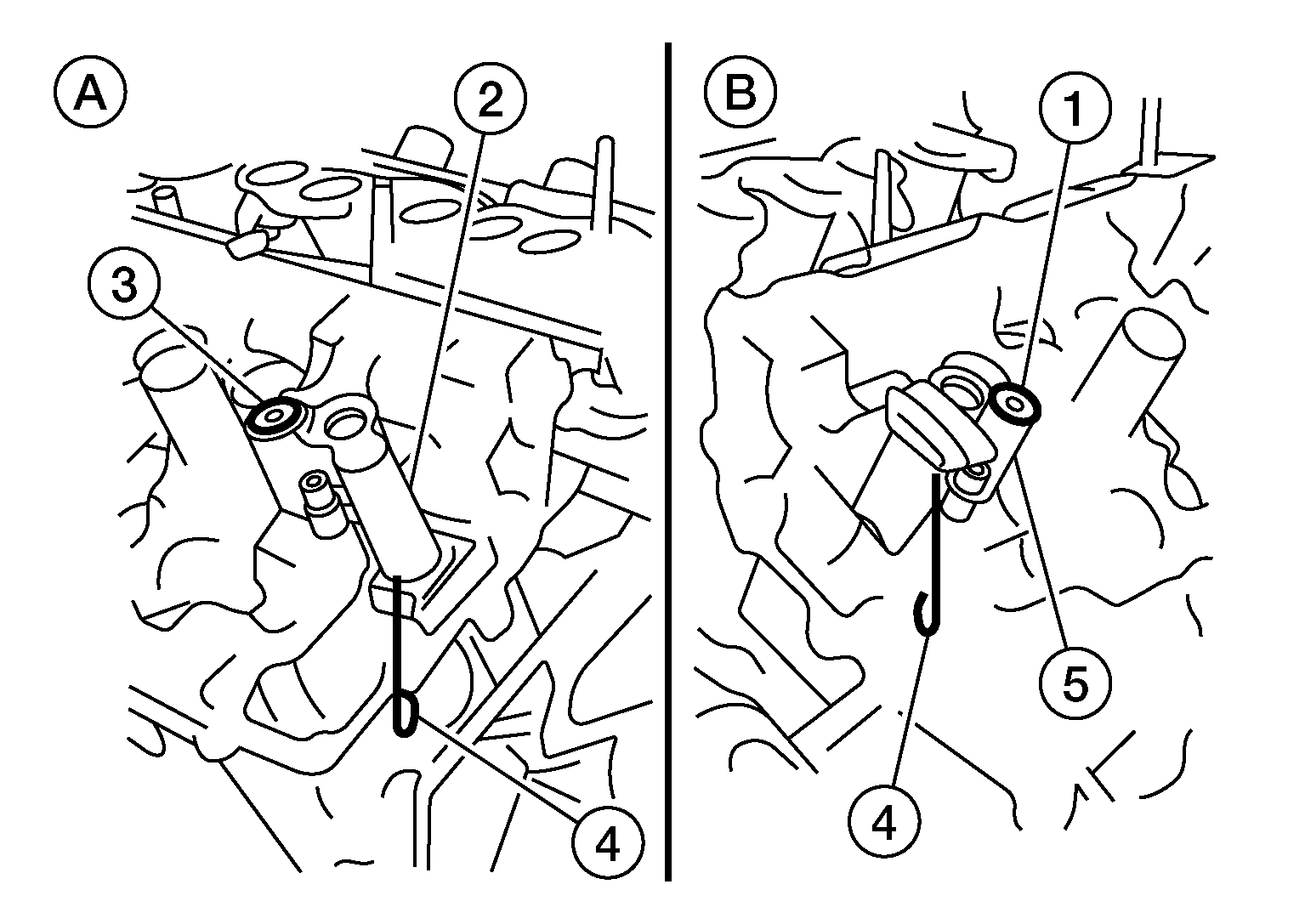

Remove secondary timing chain tensioner (2/5) from bank 1/bank 2 (A/B)

Courtesy of NISSAN NORTH AMERICA, INC.
- Remove secondary tensioner (2/5) with its stopper pin (4) attached.
NOTE:
- Stopper pin (4) was attached when secondary timing chain (2/5) was removed.
- Do not reuse O-rings (1/3).
