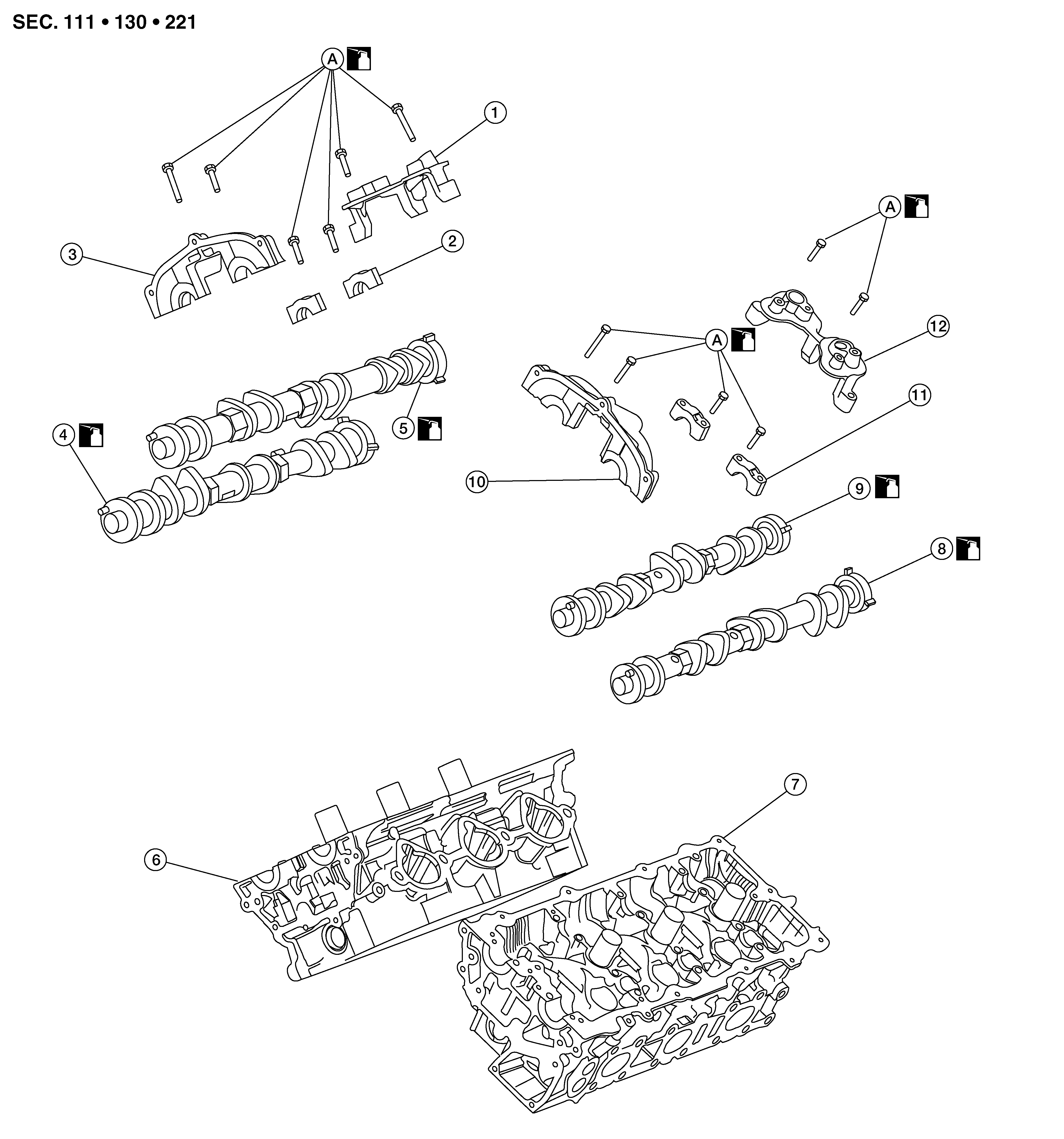

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Camshaft position sensor bracket (RH) |
2. |
Camshaft brackets |
3. |
No. 1 camshaft bracket (RH) |
|
4. |
Camshaft (EXH) (RH) |
5. |
Camshaft (INT) (RH) |
6. |
Cylinder head (RH) |
|
7. |
Cylinder head (LH) |
8. |
Camshaft (EXH) (LH) |
9. |
Camshaft (INT) (LH) |
|
10. |
No. 1 camshaft bracket (LH) |
11. |
Camshaft brackets |
12. |
Camshaft position sensor bracket (LH) |
|
A. |
Refer to Removal and Installation . |
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
