Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cooling fan assembly. Refer to Removal and Installation .
- Remove the drive belt. Refer to Removal and Installation .
- Remove the front undercover. Refer to Removal and Installation .
- Discharge the refrigerant. Refer to Recycle Refrigerant .

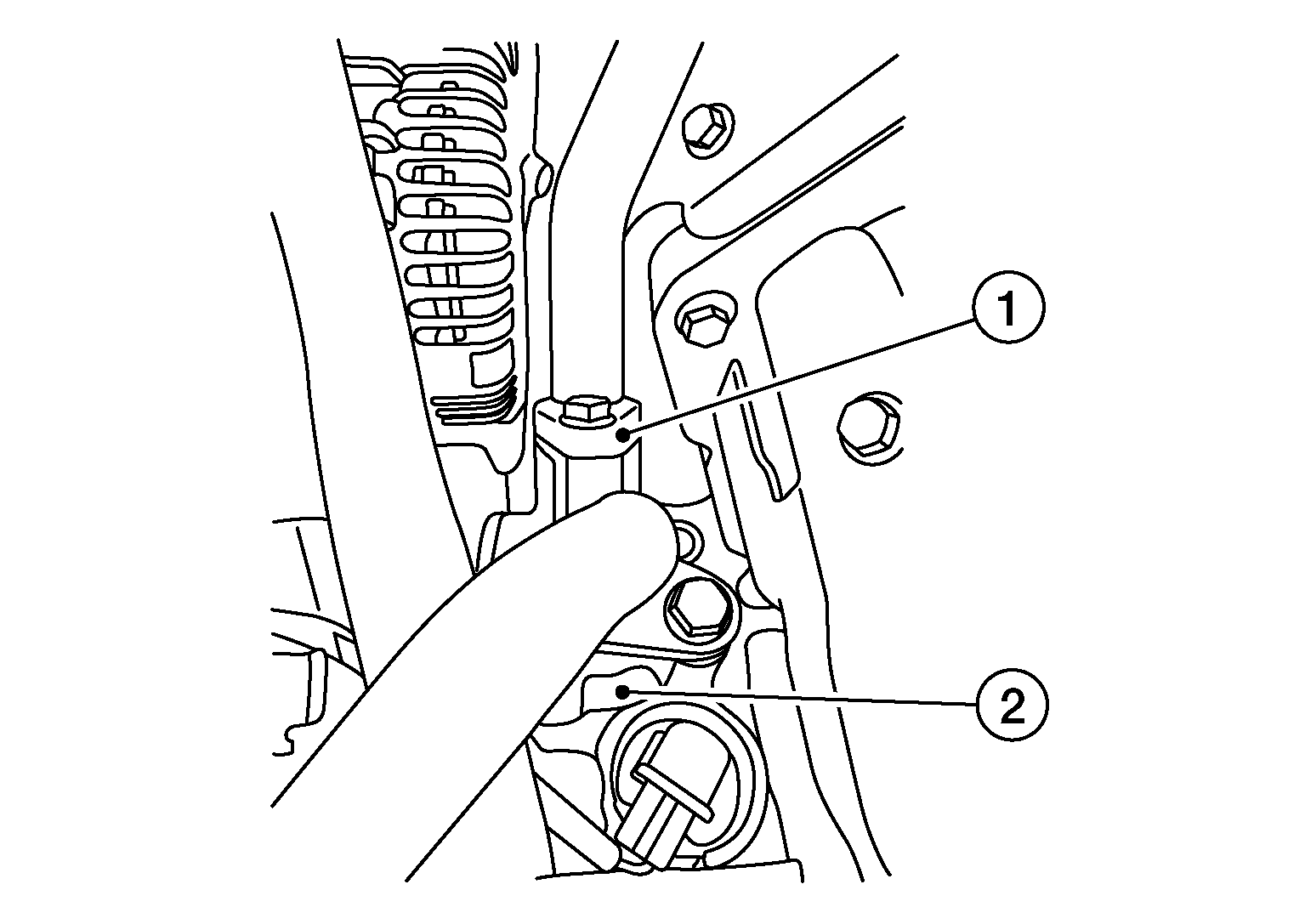

- Disconnect the low-pressure flexible hose (1) from the compressor (2).CAUTION: Cap or wrap the joint with a suitable material to avoid entry of air.
- Remove the "B" terminal nut and disconnect the "B" terminal and generator harness bracket.
- Remove the generator bolts and remove the generator bracket.
- Remove the generator nut and bolt and the remove generator.
