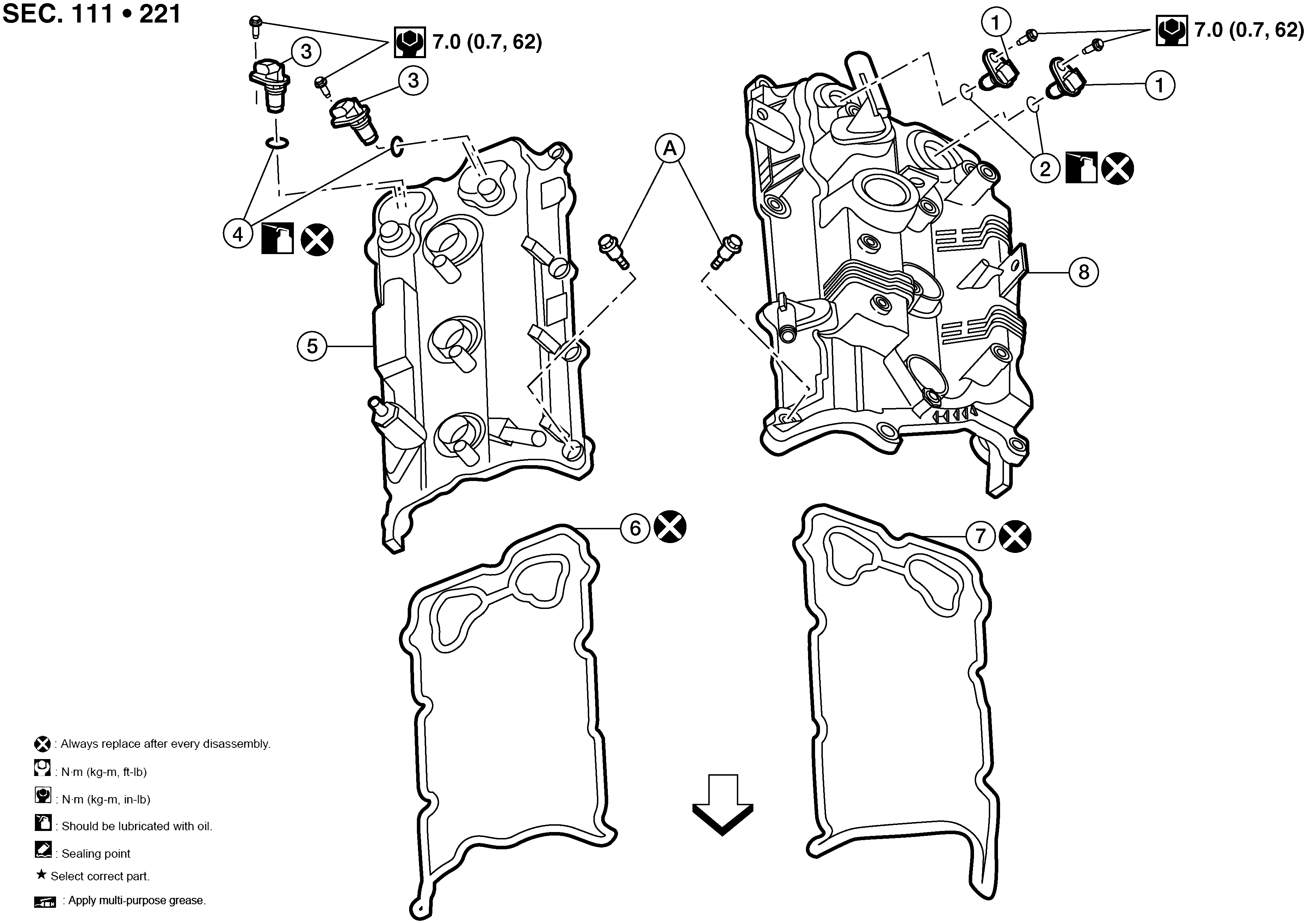

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Camshaft position sensor (Bank 2) |
2. |
O-ring |
3. |
Camshaft position sensor (Bank 1) |
|
4. |
O-ring |
5. |
Rocker cover (Bank 1) |
6. |
Rocker cover gasket (Bank 1) |
|
7. |
Rocker cover gasket (Bank 2) |
8. |
Rocker cover (Bank 2) |
A. |
Refer to INSTALLATION |
|
|
Engine front |
