Removal and Installation (Bank 2): Installation
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse rocker cover (bank 2) gasket.
- Blow-by hose clamps should be installed facing upwards.
- Install press fit hoses so that the white mark faces the rib of the connector.
- Apply a 3 mm (0.12 mm) bead of sealant to the areas on the front corners using a suitable tool.
- Use Genuine Silicone RTV Sealant or equivalent. Refer to Recommended Chemical Products and Sealants
.CAUTION:
- Installation should be done within 5 minutes after applying liquid gasket.
- Do not fill the engine with engine oil for at least 30 minutes after the components are installed to allow the sealant to cure.
(1)
: Camshaft bracket
(2)
: Cylinder head
(A)
: 4 mm (0.16 in)
(B)
: 5 mm (0.20 in)
(C)
: 4 mm (0.16 in)
(E)
: 10 mm (0.39 in)

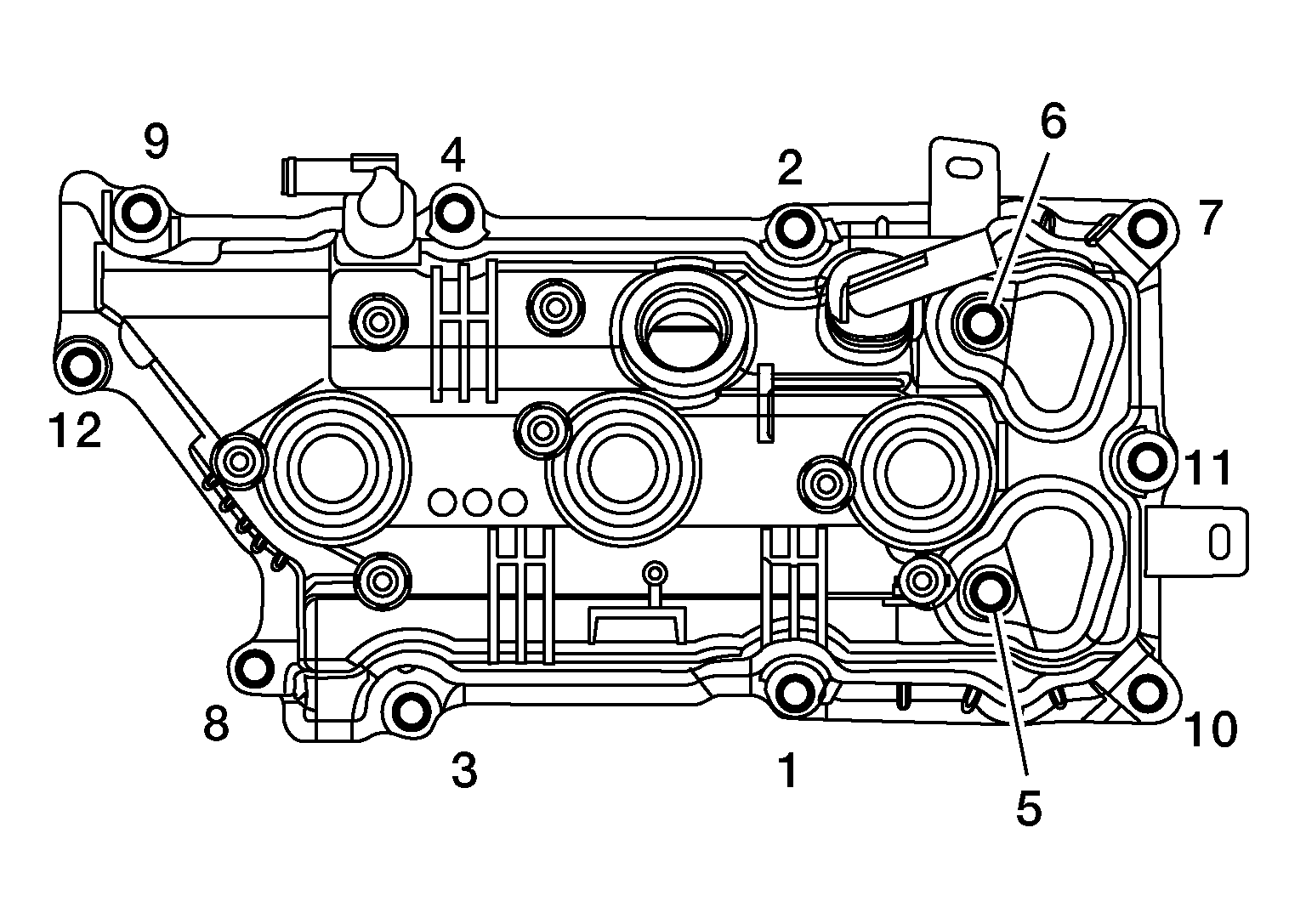

- Tighten the rocker cover bolts to the specified torque in the sequence shown, below.
Rocker cover bolts
Step 1
: 1.96 N.m (0.20 kg-m, 17 in-lb)
Step 2
: 8.33 N.m (0.85 kg-m, 74 in-lb)
