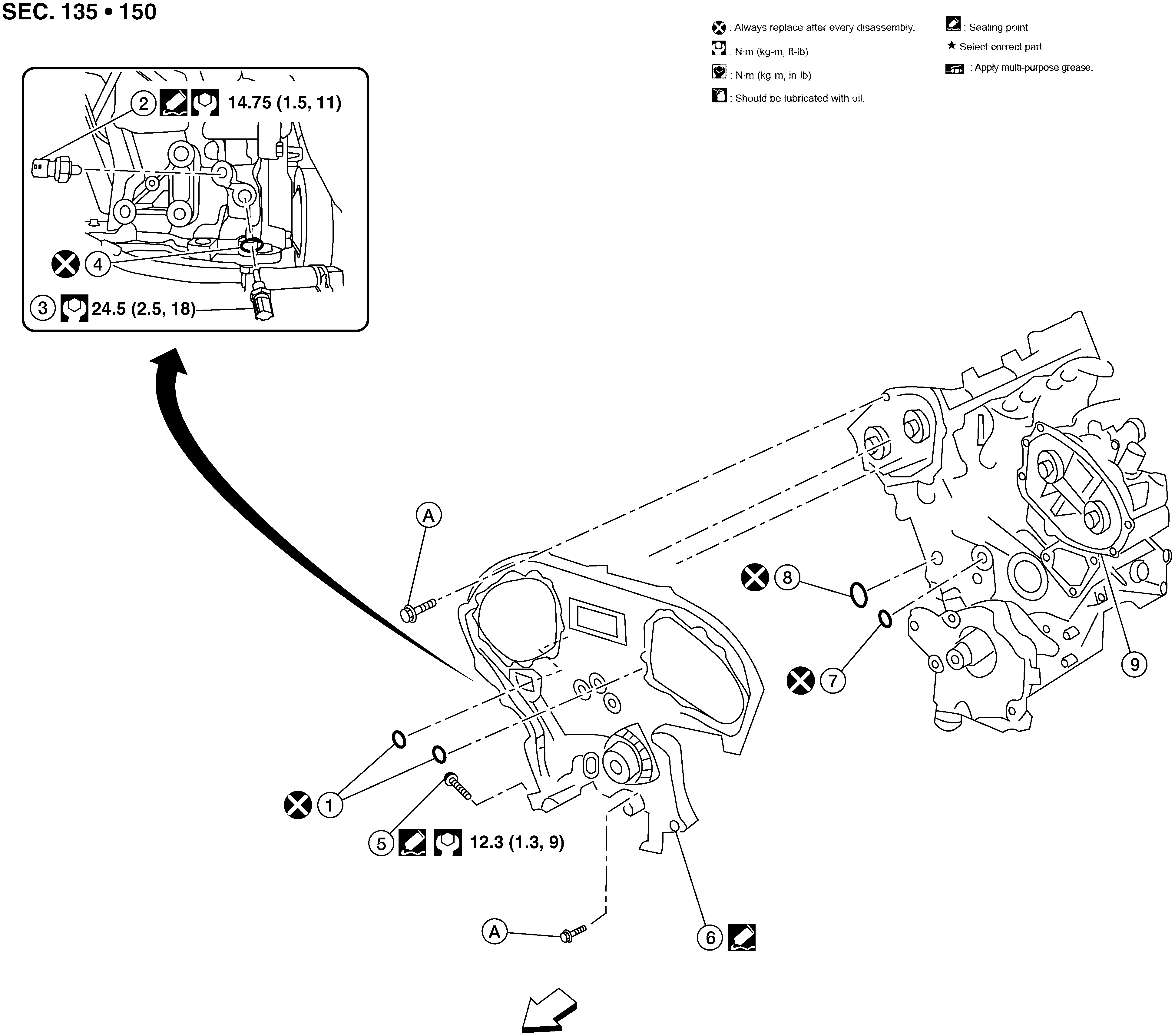

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
O-ring |
2. |
Engine oil pressure sensor |
3. |
Engine oil temperature sensor |
|
4. |
Gasket |
5. |
Blind plug (if equipped) |
6. |
Rear timing chain case |
|
7. |
O-ring |
8. |
O-ring |
9. |
Cylinder block |
|
A. |
Refer to INSTALLATION |
|
Engine front |
