Removal and Installation: Installation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

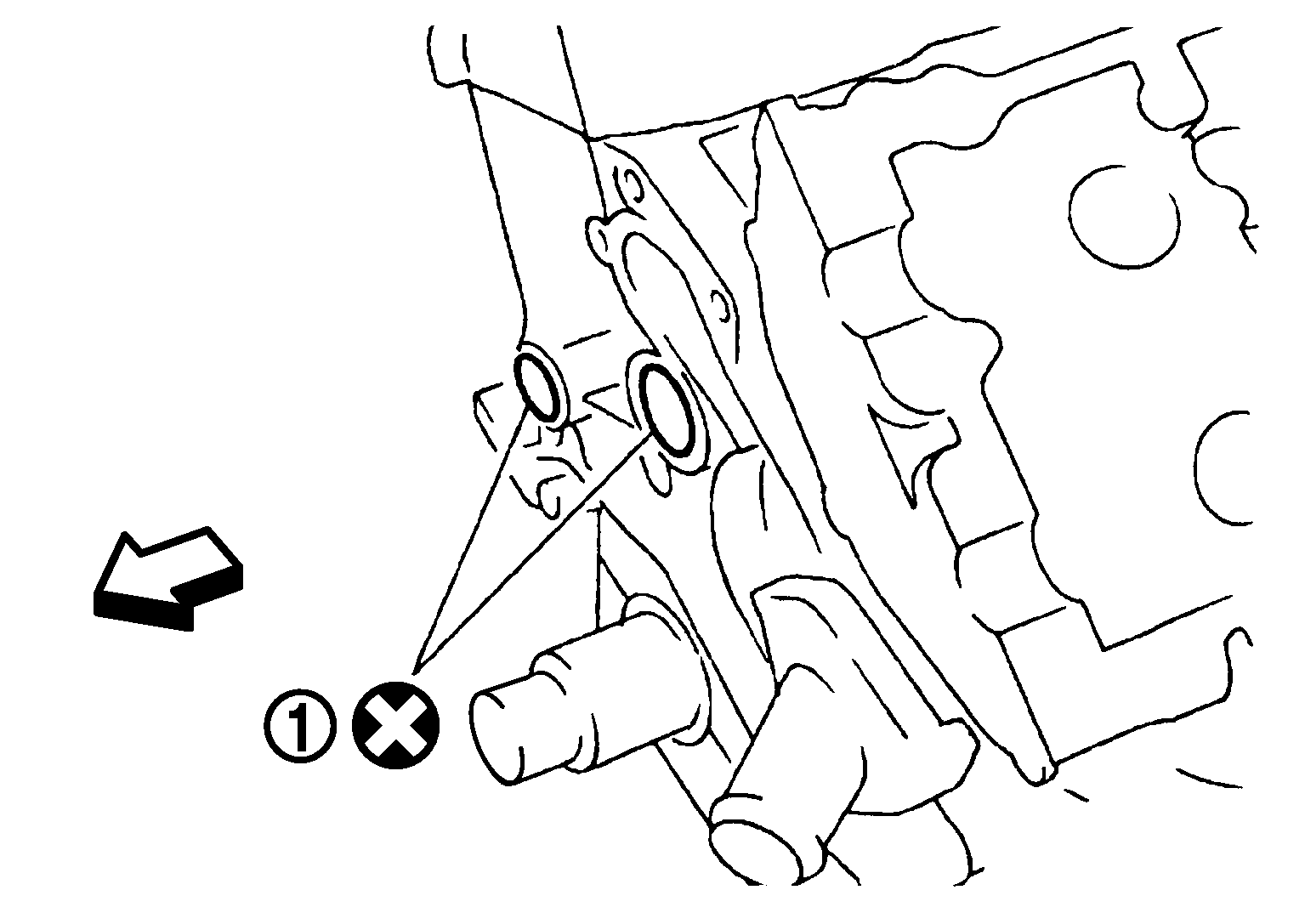

  1. Install O-rings (1) on cylinder block.
    GNSJPBIA0090Z-090Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Engine front
    CAUTION: Do not reuse O-rings.

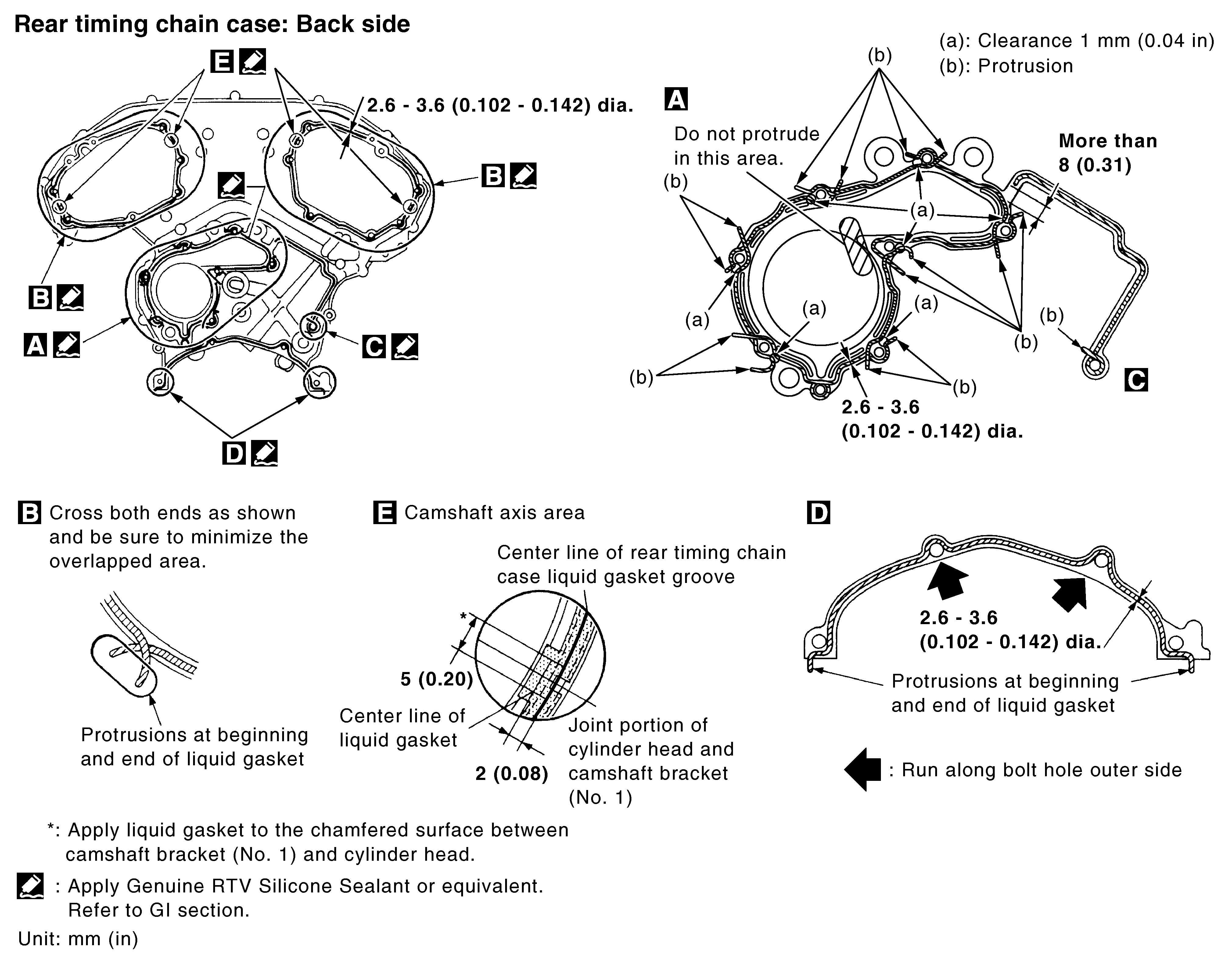

  2. Apply Genuine Silicone RTV Sealant or equivalent, to the rear timing chain case using suitable tool as shown, below. Refer to Recommended Chemical Products and sealants .
    CAUTION:
    • Installation should be done within 5 minutes after applying liquid gasket.
    • Do not fill the engine with engine oil for at least 30 minutes after the components are installed to allow the sealant to cure.
    • Wipe off liquid gasket where it touches the engine coolant passage at point "a".
    • Follow the installation instructions for applying the liquid gasket. Pay particular attention to the water pump and cylinder area.
    G04072976Courtesy of NISSAN NORTH AMERICA, INC.
  3. Align the rear timing chain case and water pump assembly with the dowel pins (RH and LH) on the cylinder block and install the case. Make sure the O-rings stay in place during installation.
    1. Tighten the bolts in the numerical order as shown, below. There are two bolt lengths used. Follow the chart below for proper bolt length specifications.

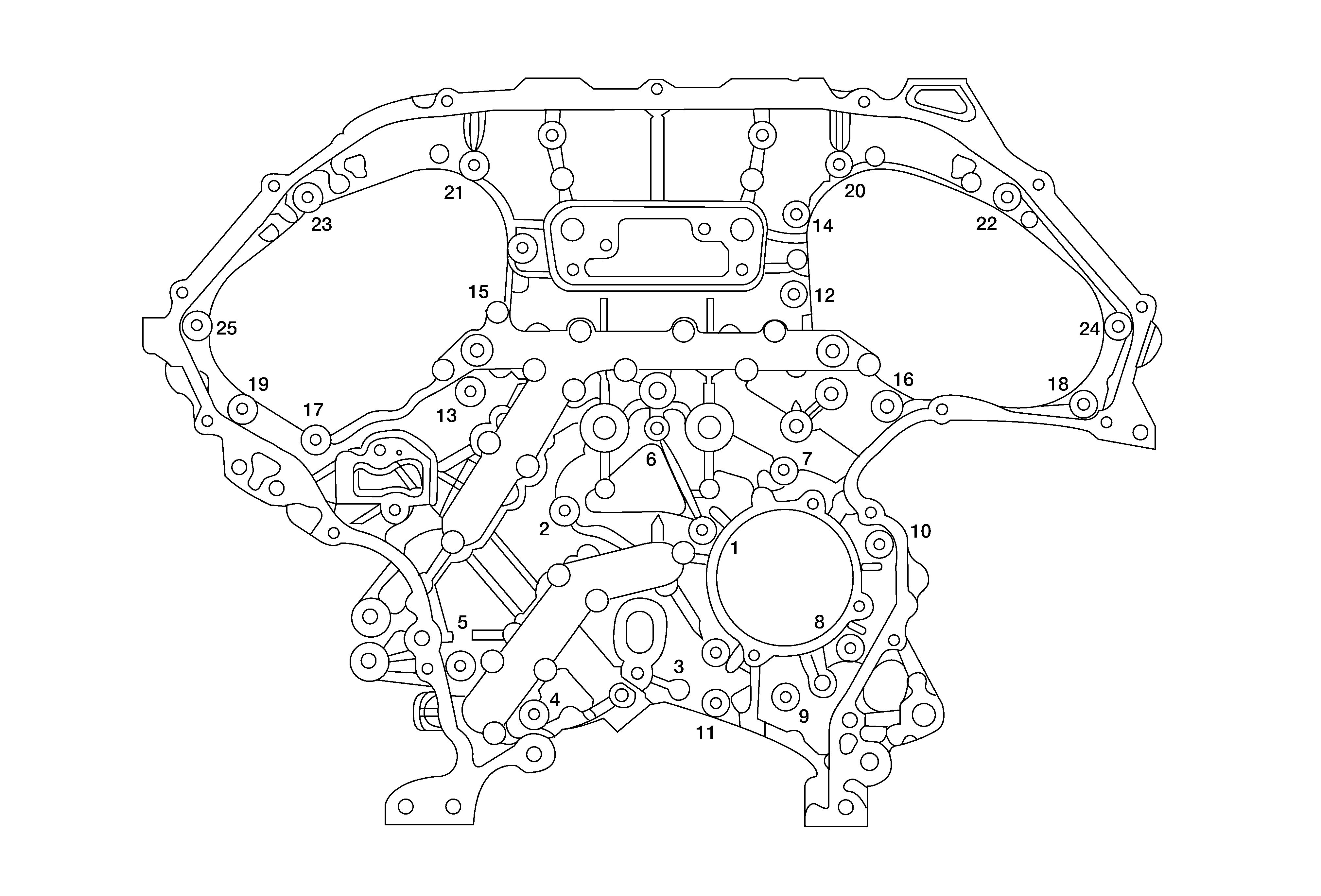

      Fig 1: Rear Timing Chain Case Bolt Tightening Sequence
      GNSAWBIA0710Z-710Courtesy of NISSAN NORTH AMERICA, INC.

      Bolt length

      Bolt position

      Torque specification

      20 mm (0.79 in)

      1, 2, 3, 6, 7, 8, 9, 10

      12.7 N.m (1.3 kg-m, 9 ft-lb)

      16 mm (0.63 in)

      All except the above

      12.7 N.m (1.3 kg-m, 9 ft-lb)
    2. After all bolts are initially tightened, retighten them to the specification in the numerical order as shown, above.
      NOTE: If liquid gasket protrudes, wipe it off immediately.
  4. Install the timing chains (primary and secondary). Refer to Removal and Installation .
  5. Install the front timing chain case. Refer to Removal and Installation .
  6. Install the upper oil pan. Refer to Removal and Installation (Upper Oil Pan) .
  7. Install the engine assembly. Refer to Removal and Installation  (FWD) or Removal and Installation  (AWD).
