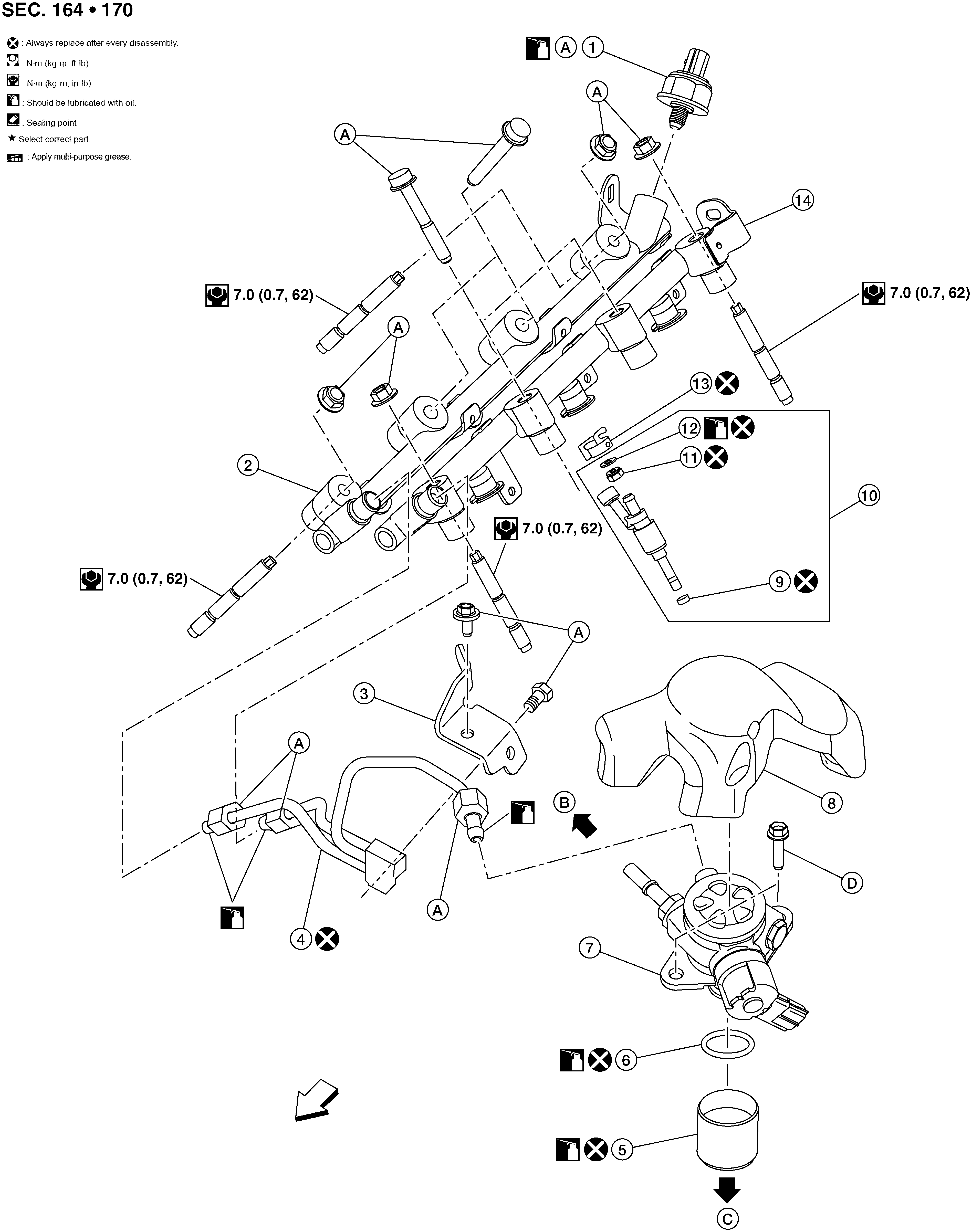

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Fuel rail pressure sensor |
2. |
Fuel rail (bank 1) |
3. |
Fuel feed tube bracket |
|
4. |
Fuel feed tube |
5. |
Lifter |
6. |
O-ring |
|
7. |
High pressure fuel pump |
8. |
High pressure fuel pump insulator |
9. |
Seal ring |
|
10. |
Injector |
11. |
Backup ring |
12. |
O-ring (green) |
|
13. |
Injector holder |
14. |
Fuel rail (bank 2) |
A. |
Refer to Removal and Installation . |
|
B. |
To fuel feed hose |
C. |
To camshaft bracket no. 1. Refer to Exploded View . |
D. |
Refer to INSTALLATION |
|
|
Engine front |
