Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

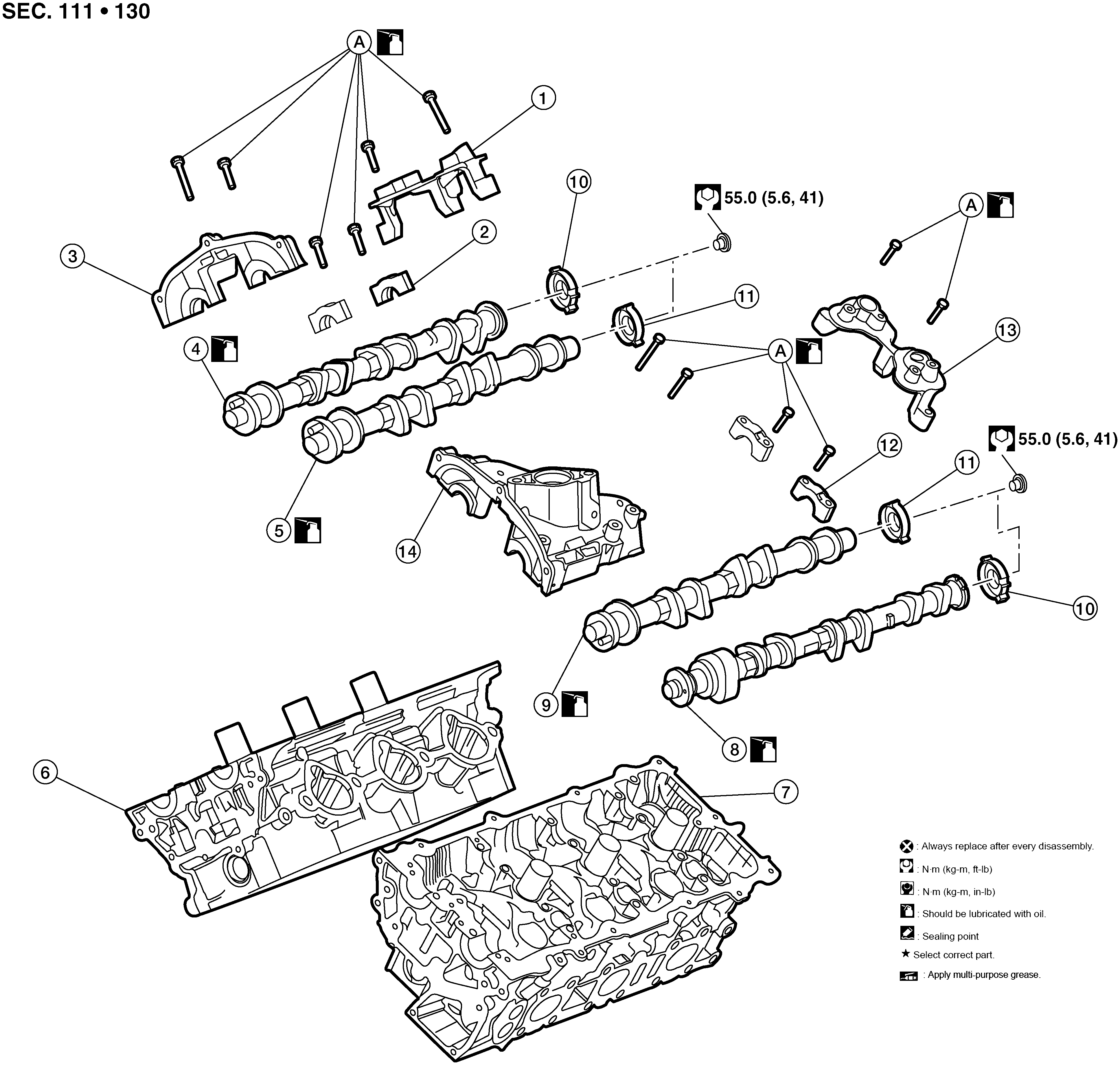

1. |
Camshaft position sensor bracket (Bank 1) |
2. |
Camshaft bracket (Bank 1) |
3. |
No. 1 camshaft bracket (Bank 1) |
|
4. |
Camshaft (Bank 1 (EXH)] |
5. |
Camshaft {Bank 1 (INT)] |
6. |
Cylinder head (Bank 1) |
|
7. |
Cylinder head (Bank 2) |
8. |
Camshaft [Bank 2 (EXH)] |
9. |
Camshaft [Bank 2 (INT)] |
|
10. |
Signal plate (EXH) |
11. |
Signal plate (INT) |
12. |
Camshaft bracket |
|
13. |
Camshaft position sensor bracket (Bank 2) |
14. |
No. 1 camshaft bracket (Bank 2) |
A. |
Refer to INSTALLATION |
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
