Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

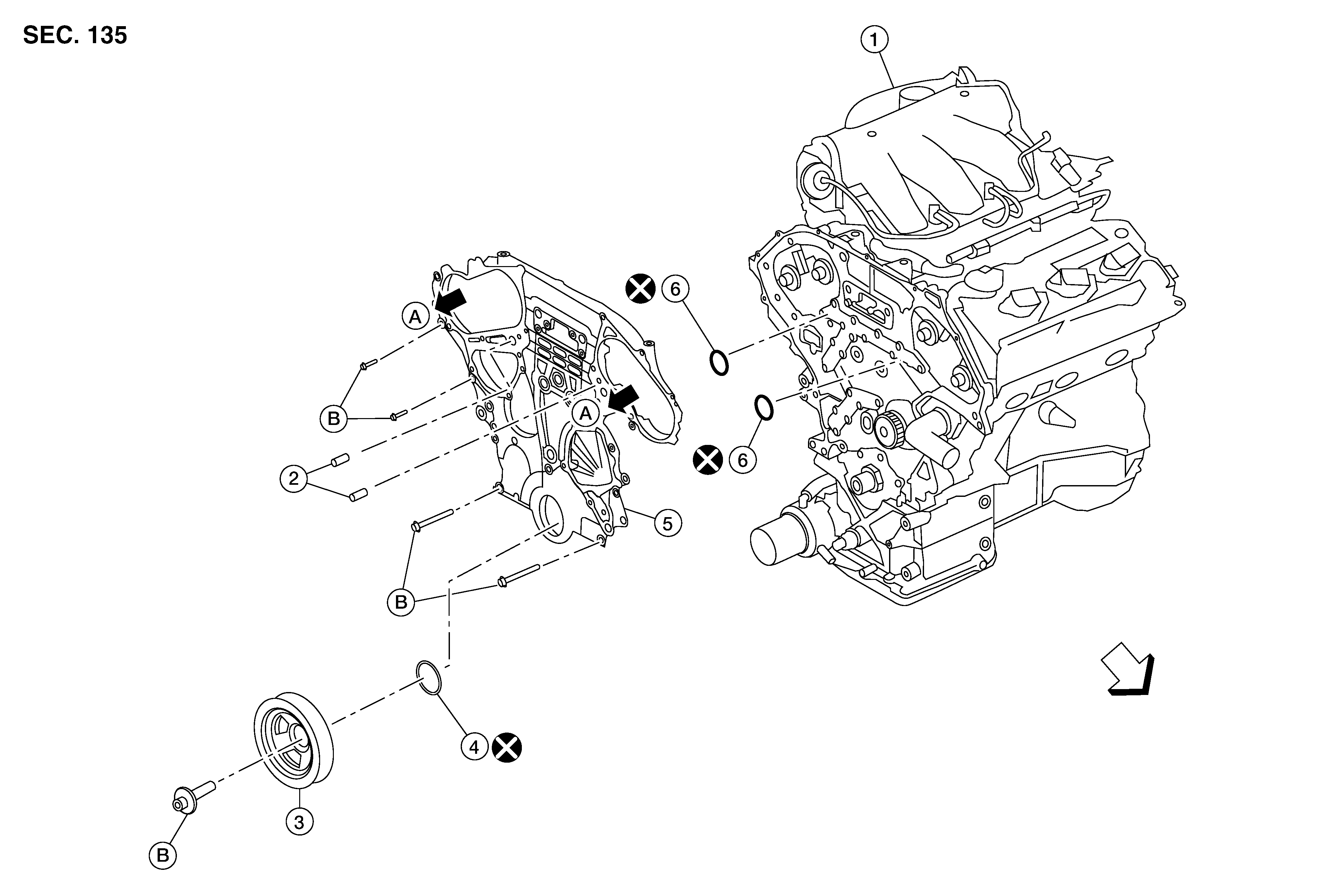

1. |
Engine assembly |
2. |
Front timing chain case oil filter |
3. |
Crankshaft pulley |
|
4. |
Front oil seal |
5. |
Front timing chain case |
6. |
O-ring |
|
A. |
To valve timing control cover (bank 1/bank 2). Exploded View . |
B. |
Refer to INSTALLATION |
|
Front |
