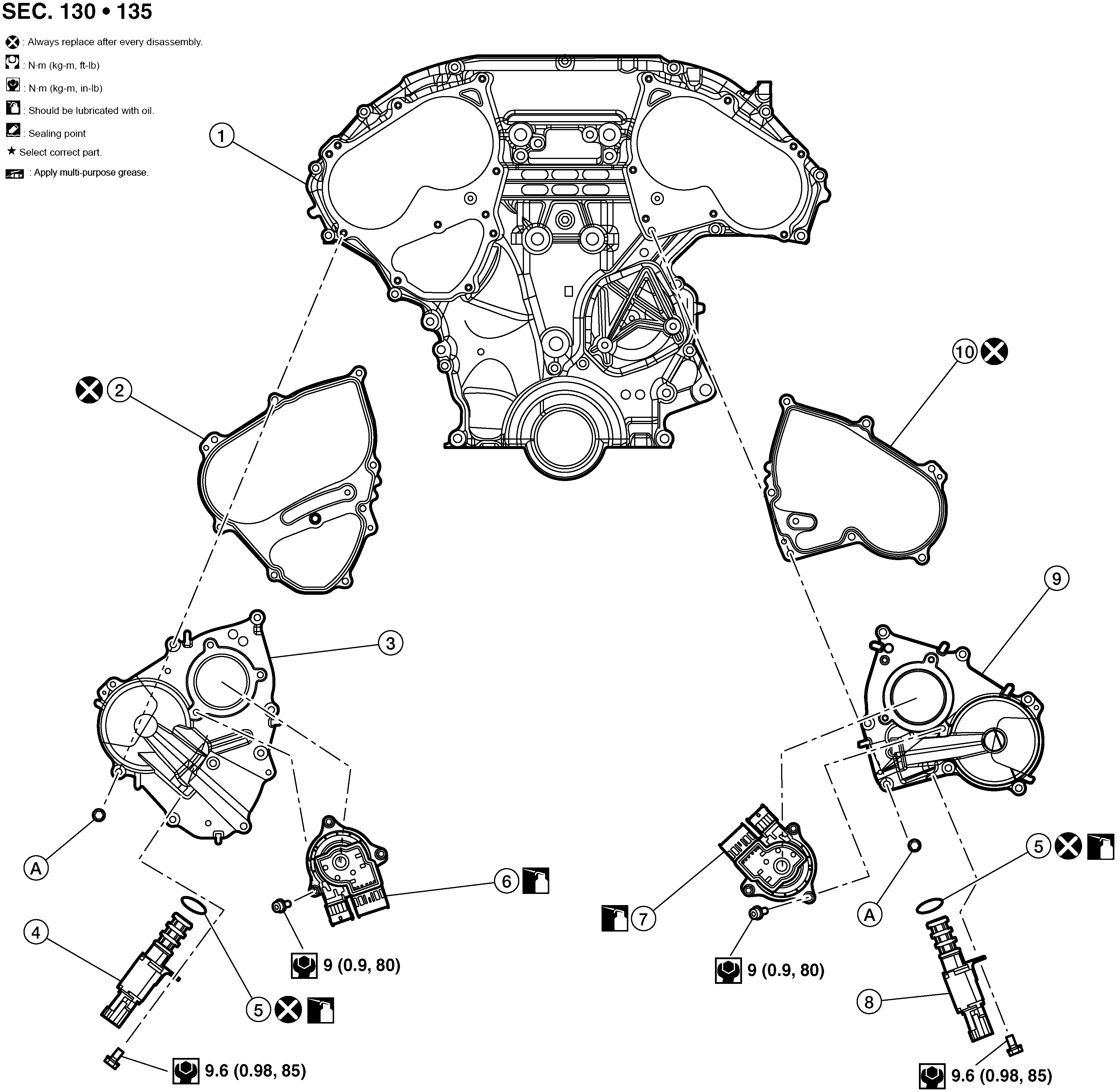

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front timing chain case |
2. |
Valve timing control cover gasket (bank 1) |
3. |
Valve timing control cover (bank 1) |
|
4. |
Exhaust valve timing control solenoid valve (bank 1) |
5. |
O-ring |
6. |
Electric intake valve timing control actuator (bank 1) |
|
7. |
Electric intake valve timing control actuator (bank 2) |
8. |
Exhaust valve timing control solenoid valve (bank 2) |
9. |
Valve timing control cover (bank 2) |
|
10. |
Valve timing control cover gasket (bank 2) |
A. |
Refer to INSTALLATION |
