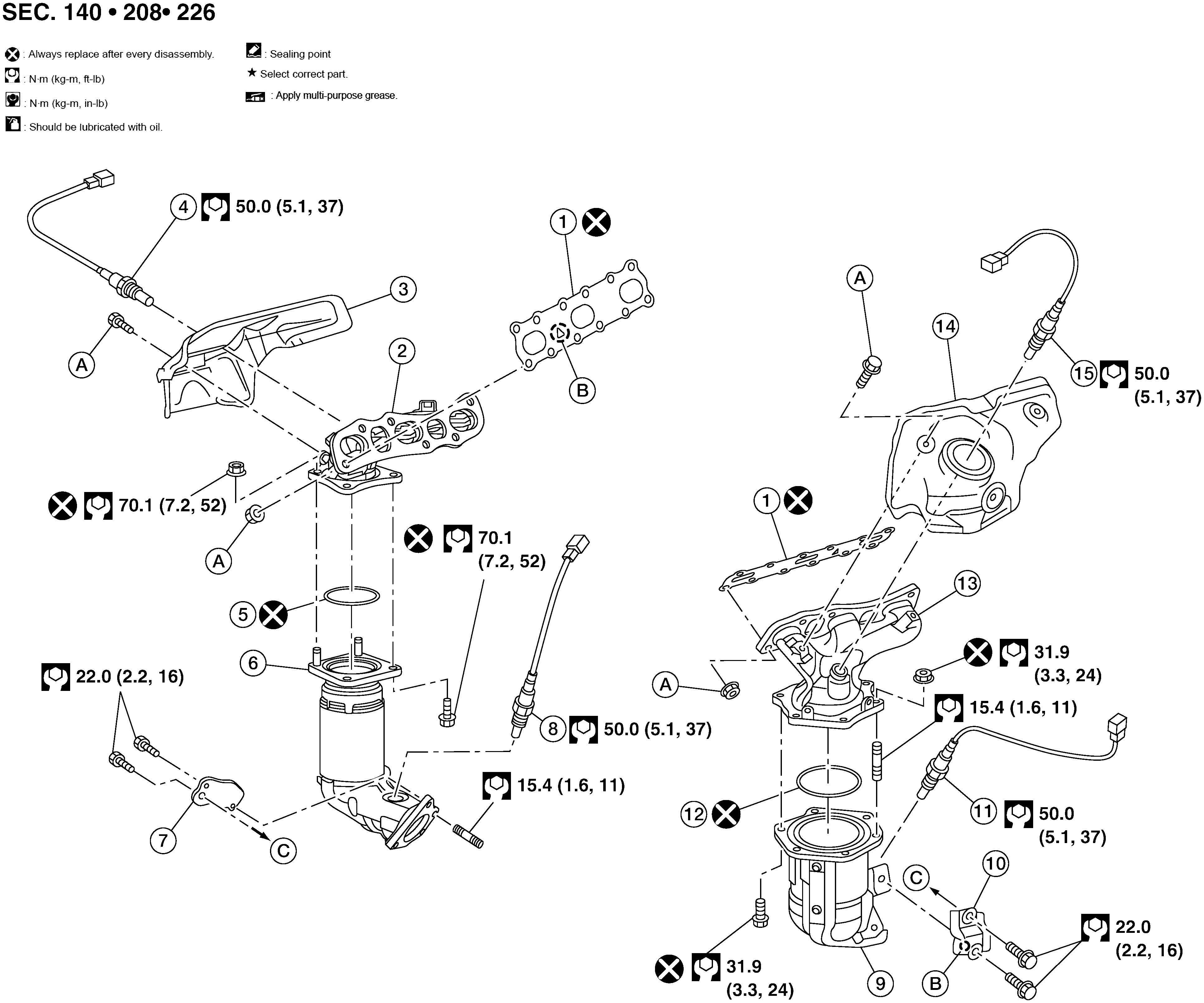

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Gasket |
2. |
Exhaust manifold (bank 1) |
3. |
Exhaust manifold cover (bank 1) |
|
4. |
Air fuel ratio sensor 1 (bank 1) |
5. |
Ring gasket |
6. |
Three way catalyst (bank 1) |
|
7. |
Three way catalyst support (bank 1) |
8. |
Heated oxygen sensor 2 (bank 1) |
9. |
Three way catalyst (bank 2) |
|
10. |
Three way catalyst support (bank 2) |
11. |
Heated oxygen sensor 2 (bank 2) |
12. |
Ring gasket |
|
13. |
Exhaust manifold (bank 2) |
14. |
Exhaust manifold cover (bank 2) |
15. |
Air fuel ratio sensor 1 (bank 2) |
|
A. |
Refer to INSTALLATION |
B. |
Upper mark |
C. |
To oil pan (upper). Refer to Exploded View . |
