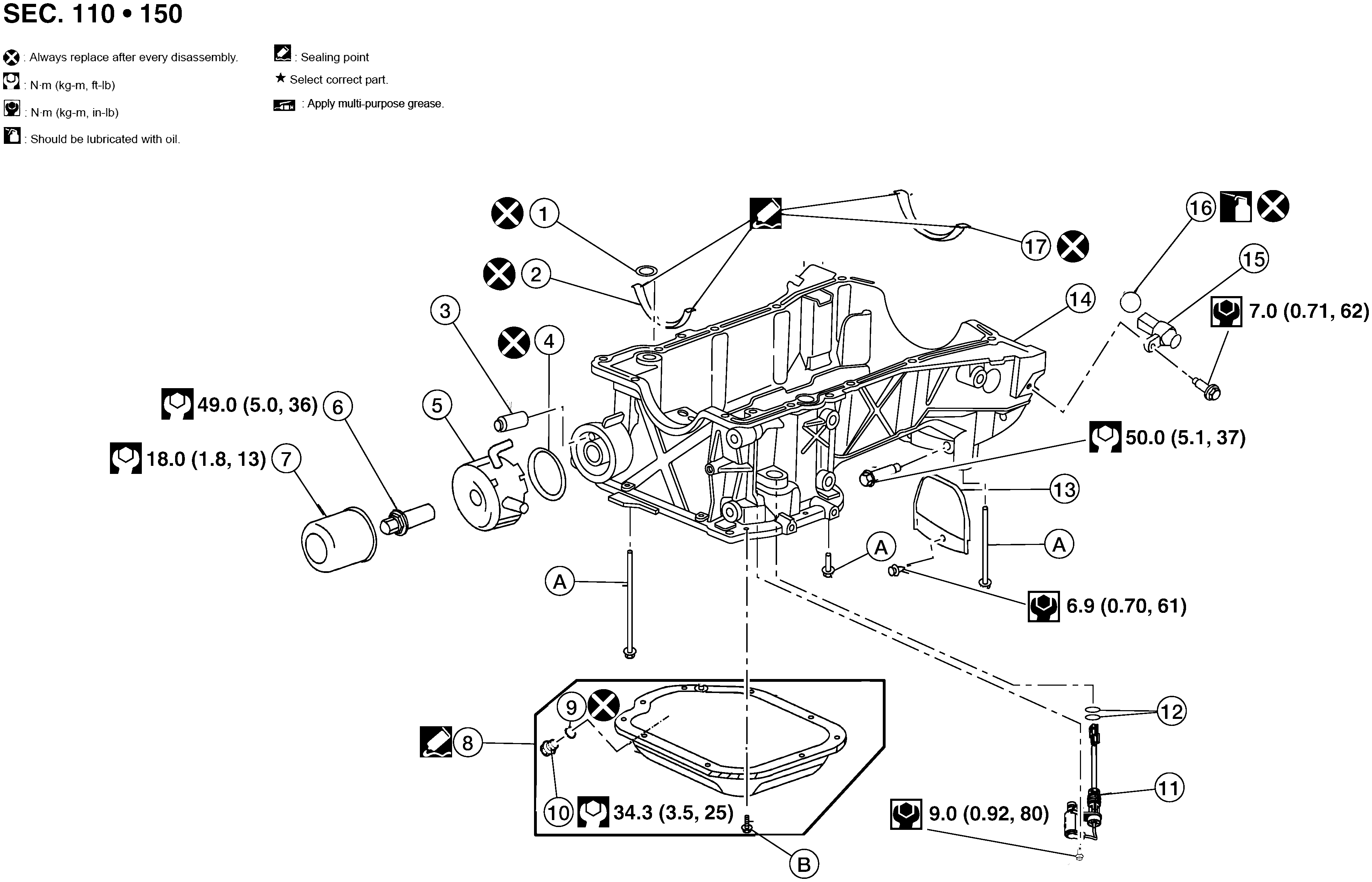

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
O-ring |
2. |
Front cover gasket |
3. |
Oil pressure regulator valve |
|
4. |
Oil cooler gasket |
5. |
Oil cooler |
6. |
Oil cooler connection |
|
7. |
Oil filter |
8. |
Oil pan (lower) |
9. |
Washer |
|
10. |
Drain plug |
11. |
Engine oil pressure control solenoid valve |
12. |
O-ring |
|
13. |
Rear plate cover |
14. |
Oil pan (upper) |
15. |
Crankshaft position sensor (POS) |
|
16. |
O-ring |
17. |
Rear oil seal retainer gasket |
A. |
Refer to Removal and Installation (Upper Oil Pan) . |
|
B. |
Refer to INSTALLATION |
