Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner case (upper), air cleaner case (lower), front air duct, and air duct hose and resonator assembly. Refer to Removal and Installation .
  2. Remove the battery and battery tray assembly. Refer to Removal and Installation .
  3. Remove the front under cover. Refer to Removal and Installation .
  4. Remove the front fender protector side covers (RH/LH). Refer to Exploded View
  5. Partially remove the fender protectors (RH/LH). Refer to Exploded View .
  6. Remove the radiator assembly. Refer to Removal and Installation .
  7. Remove the engine cooling fan shroud and motor assembly. Refer to Removal and Installation .
  8. Remove the exhaust manifold heat shield (LH). Refer to Exploded View .
  9. Support the engine with a suitable tool.
  10. Disconnect the engine mount insulator (front) vacuum hose.

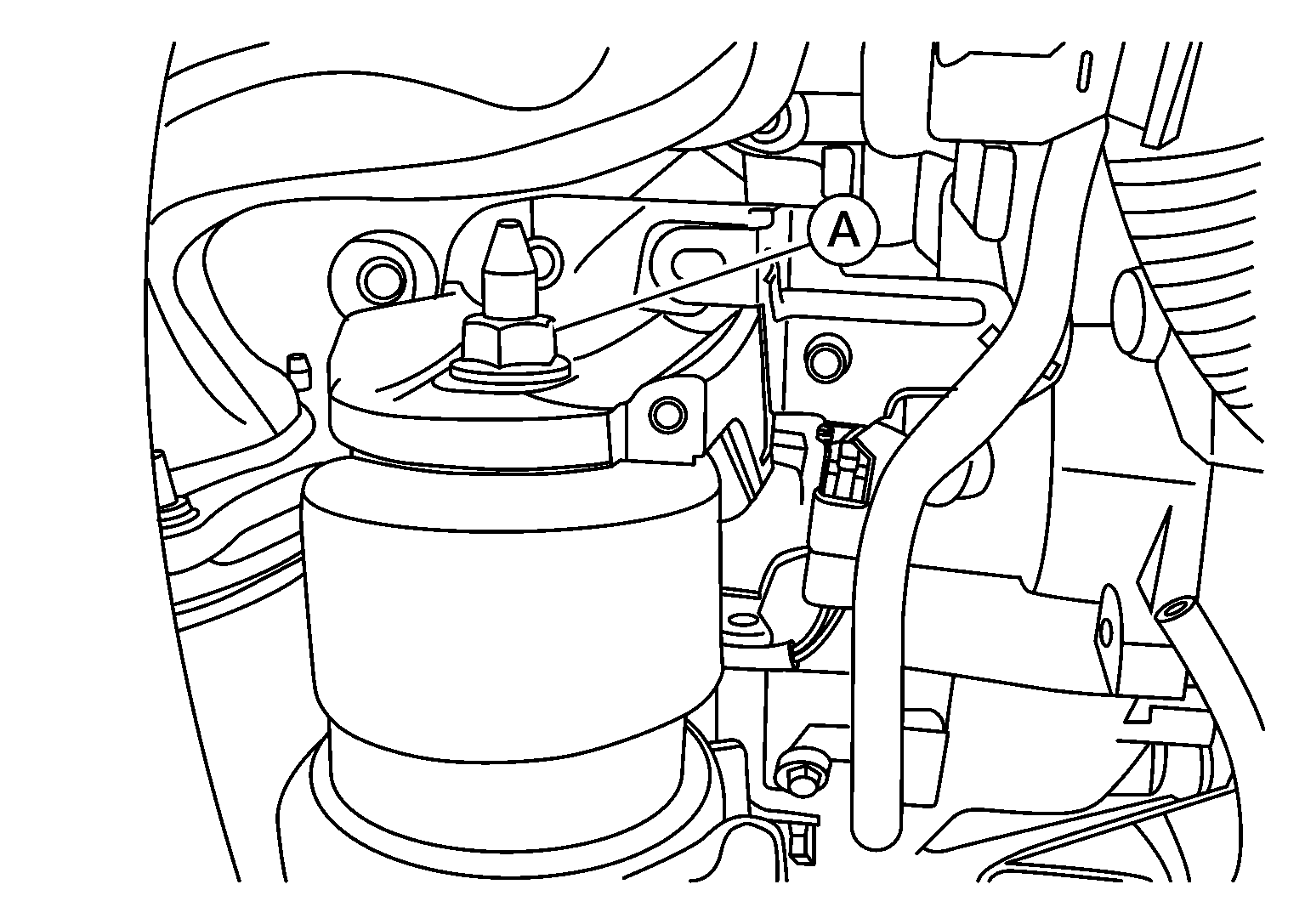

  11. Remove the engine mount insulator (front) nut (A).
    G08432176Courtesy of NISSAN NORTH AMERICA, INC.

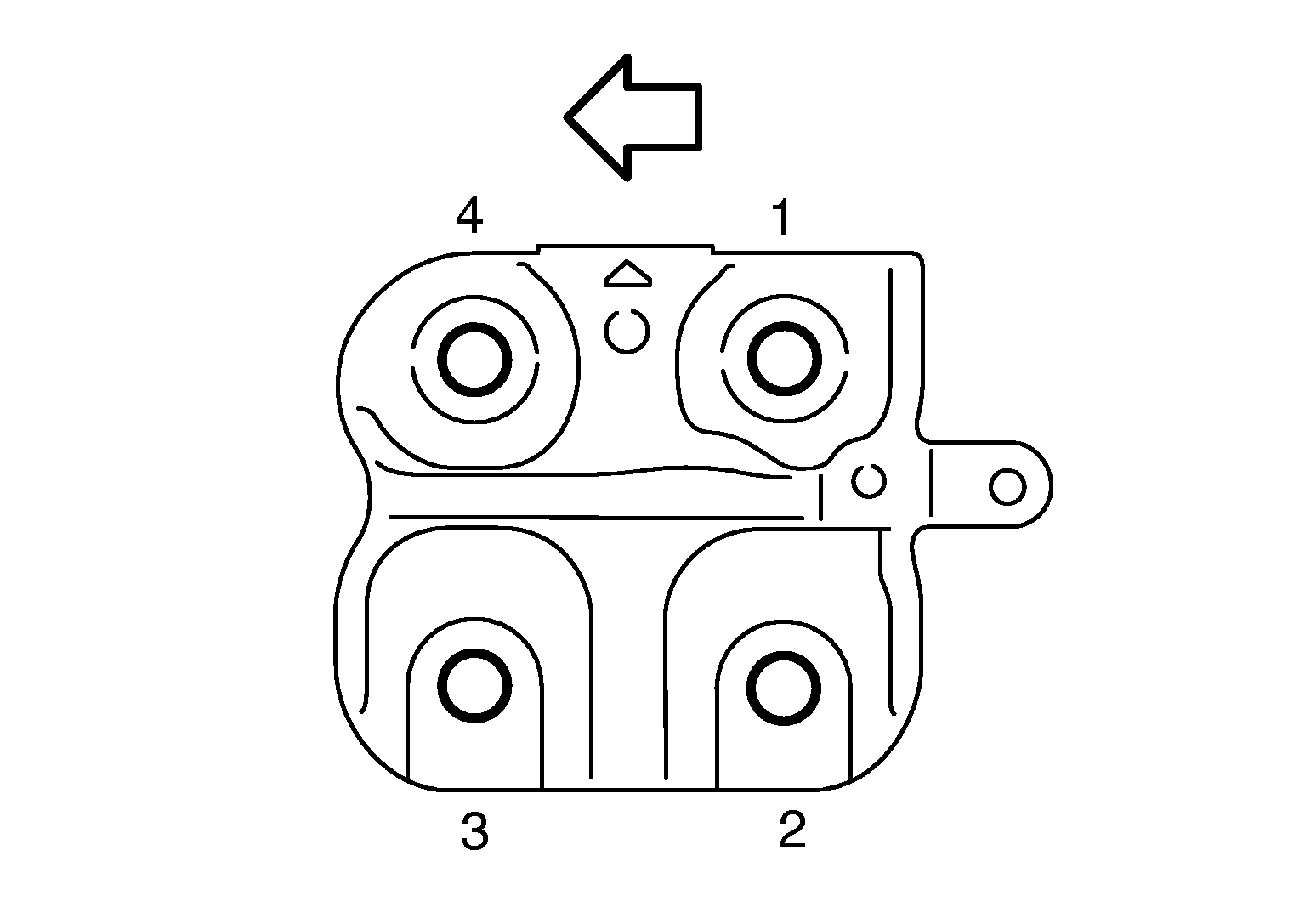

  12. Loosen the engine mount bracket (front) bolts in the reverse order shown, below.
    GNSJPBIA1731Z-731Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Engine front
  13. Remove the engine mount bracket (front).

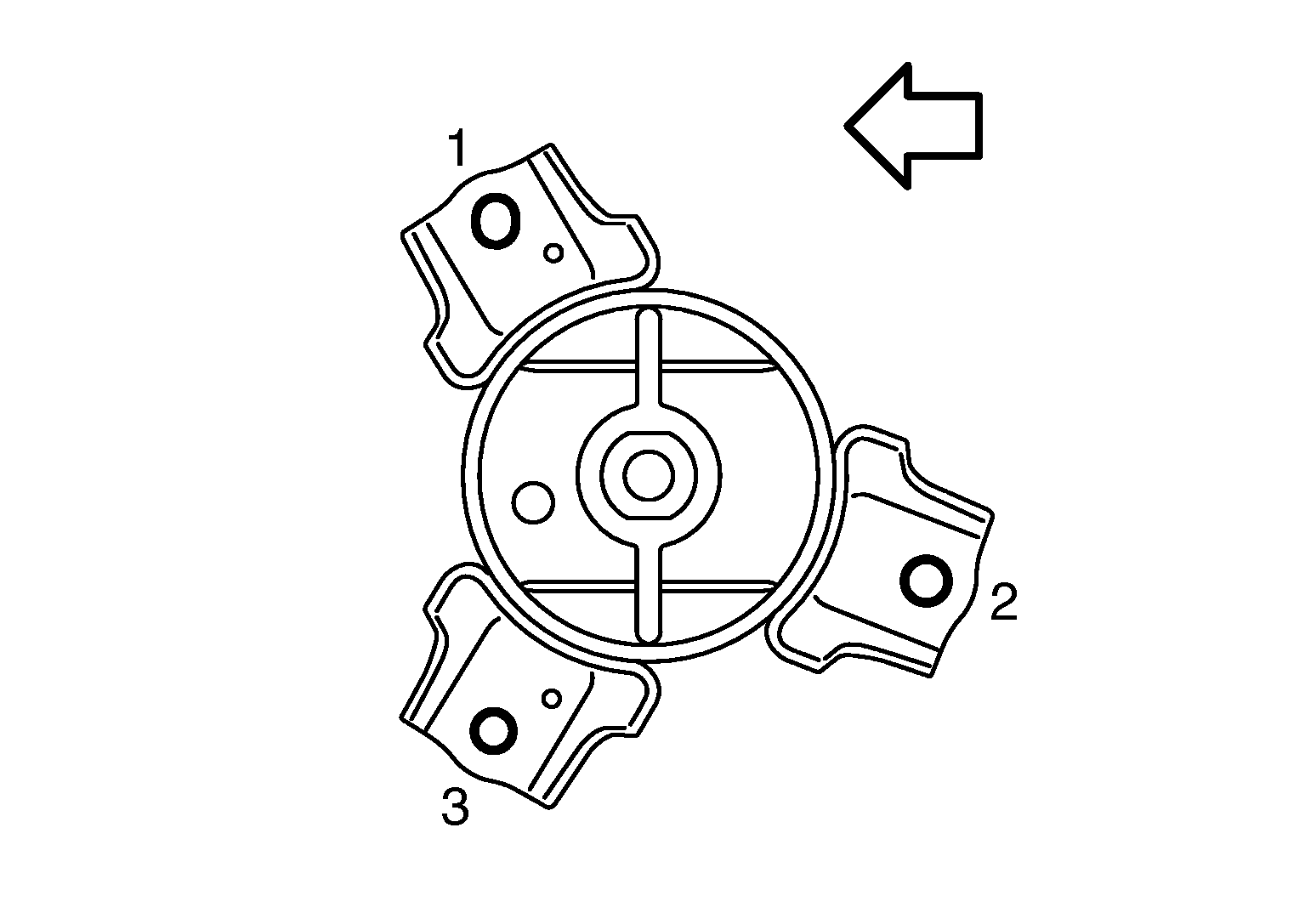

  14. Remove the engine mount insulator (front) bolts in the reverse order as shown, below.
    GNSJPBIA1735Z-735Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

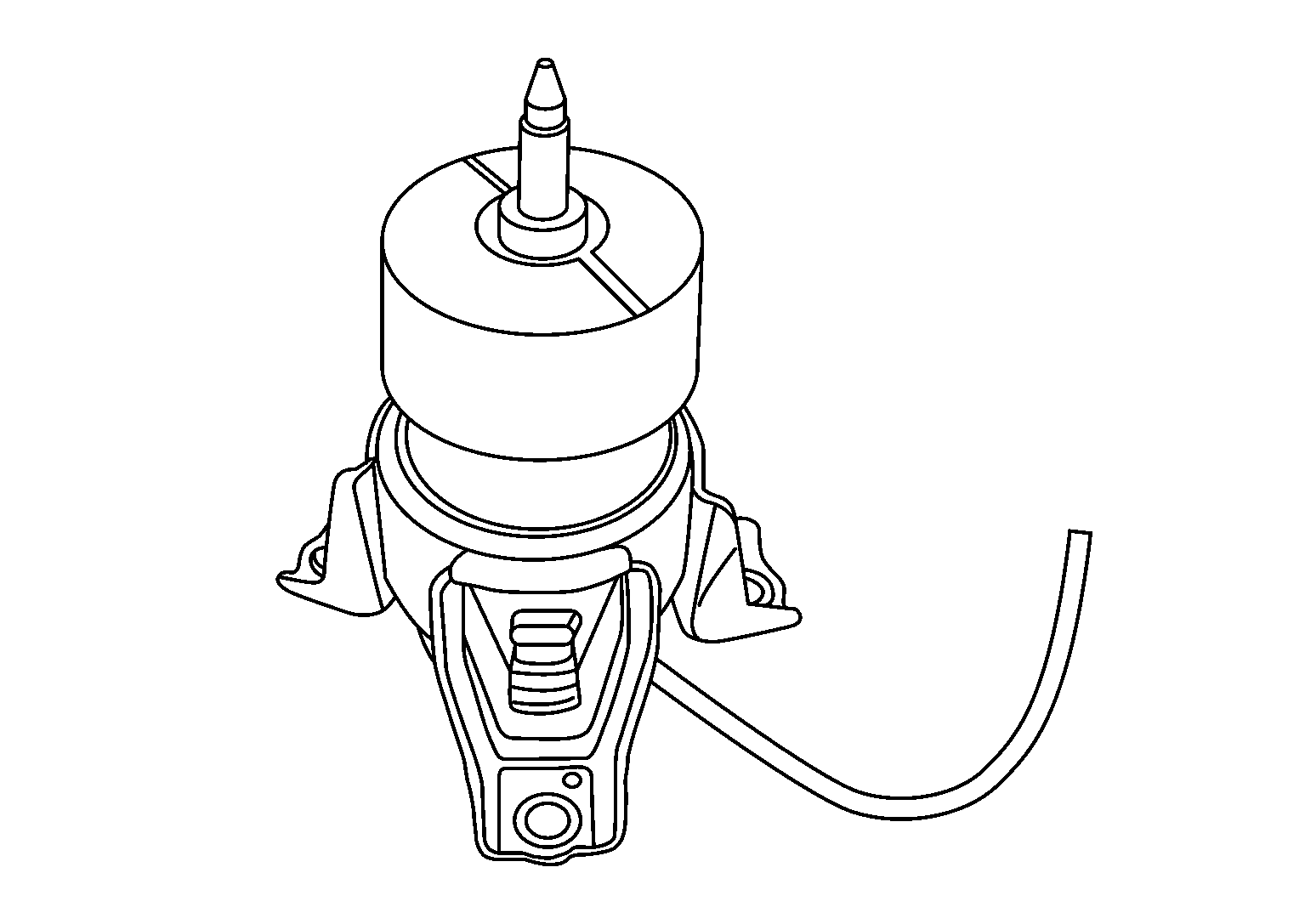

  15. Remove the engine mount insulator (front).
    G08432179Courtesy of NISSAN NORTH AMERICA, INC.
