Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine from the vehicle. Refer to Removal and Installation  (FWD) or Removal and Installation  (AWD).
  2. Remove the rear timing chain case. Refer to Removal and Installation .
  3. Remove the intake manifold. Refer to Removal and Installation .
  4. Remove the exhaust manifolds. Refer to Exploded View .
  5. Remove the intake and exhaust camshafts. Refer to Removal and Installation .
  6. Remove the water outlet. Refer to Removal and Installation .
  7. Remove the (RH) and (LH) cylinder head bolts with power tool.

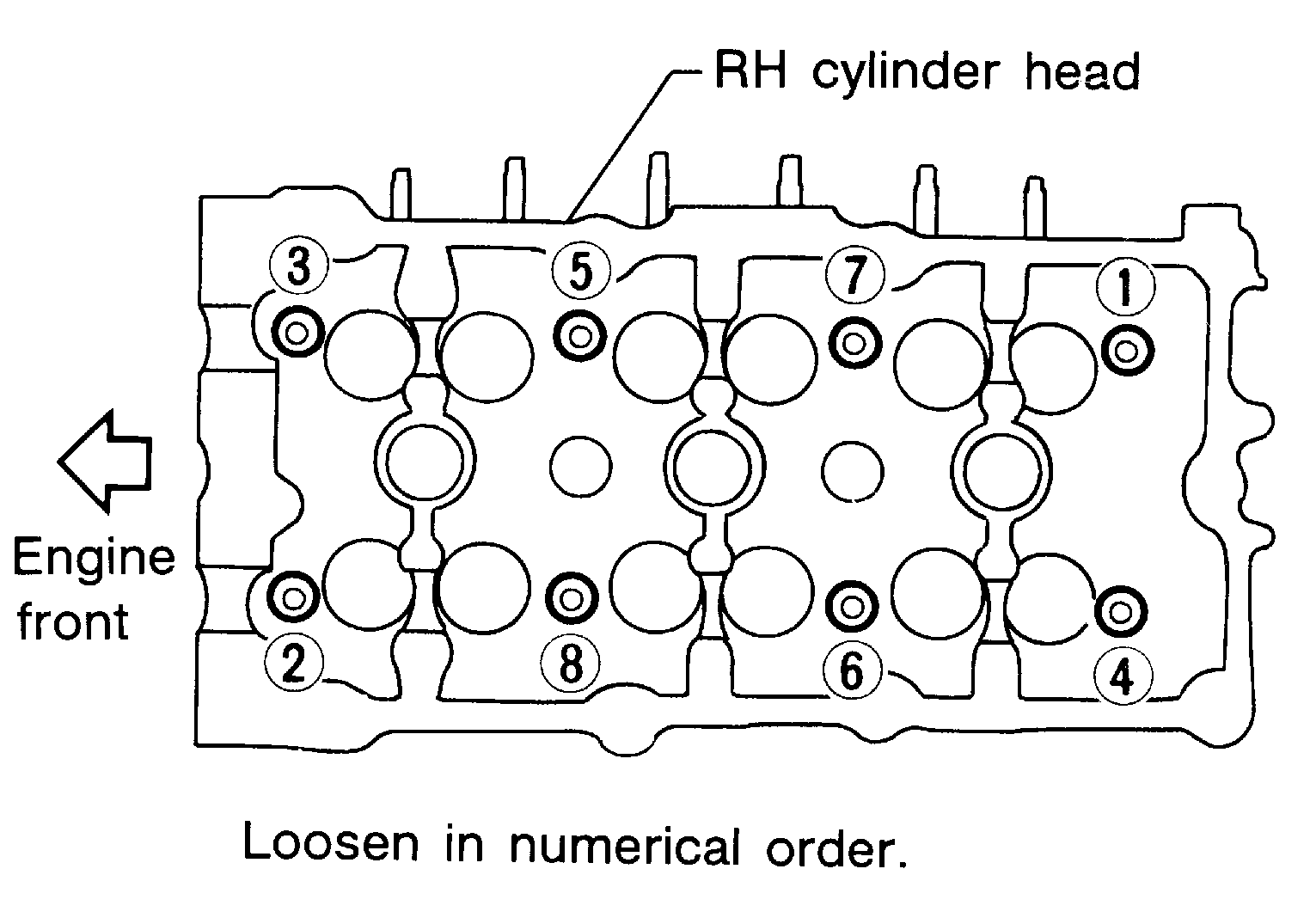

    G04159822Courtesy of NISSAN NORTH AMERICA, INC.
    • The bolts should be loosened gradually in three stages.
    • Loosen the bolts in the numerical order as shown, below.

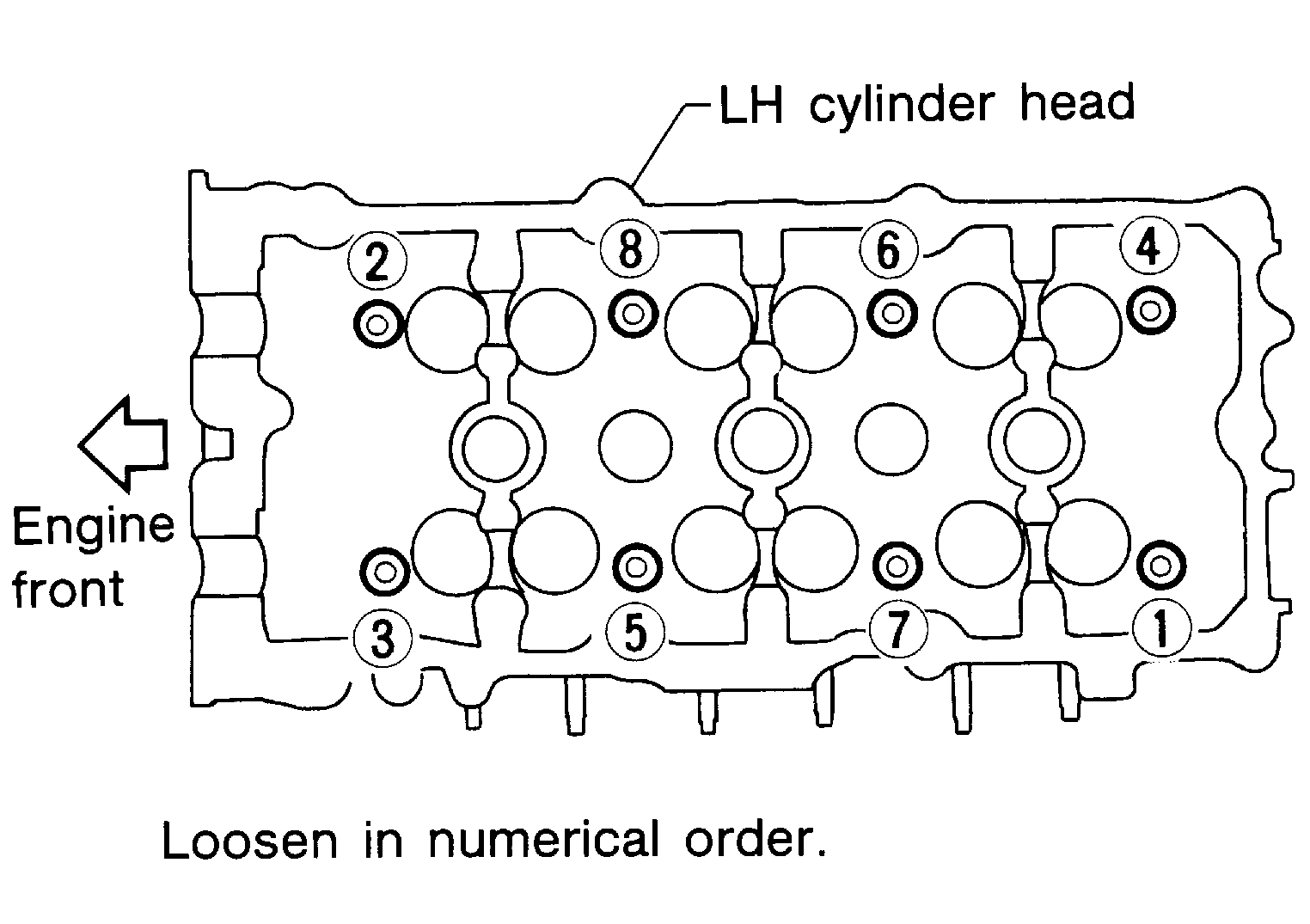

    G04159823Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove cylinder heads and gaskets.

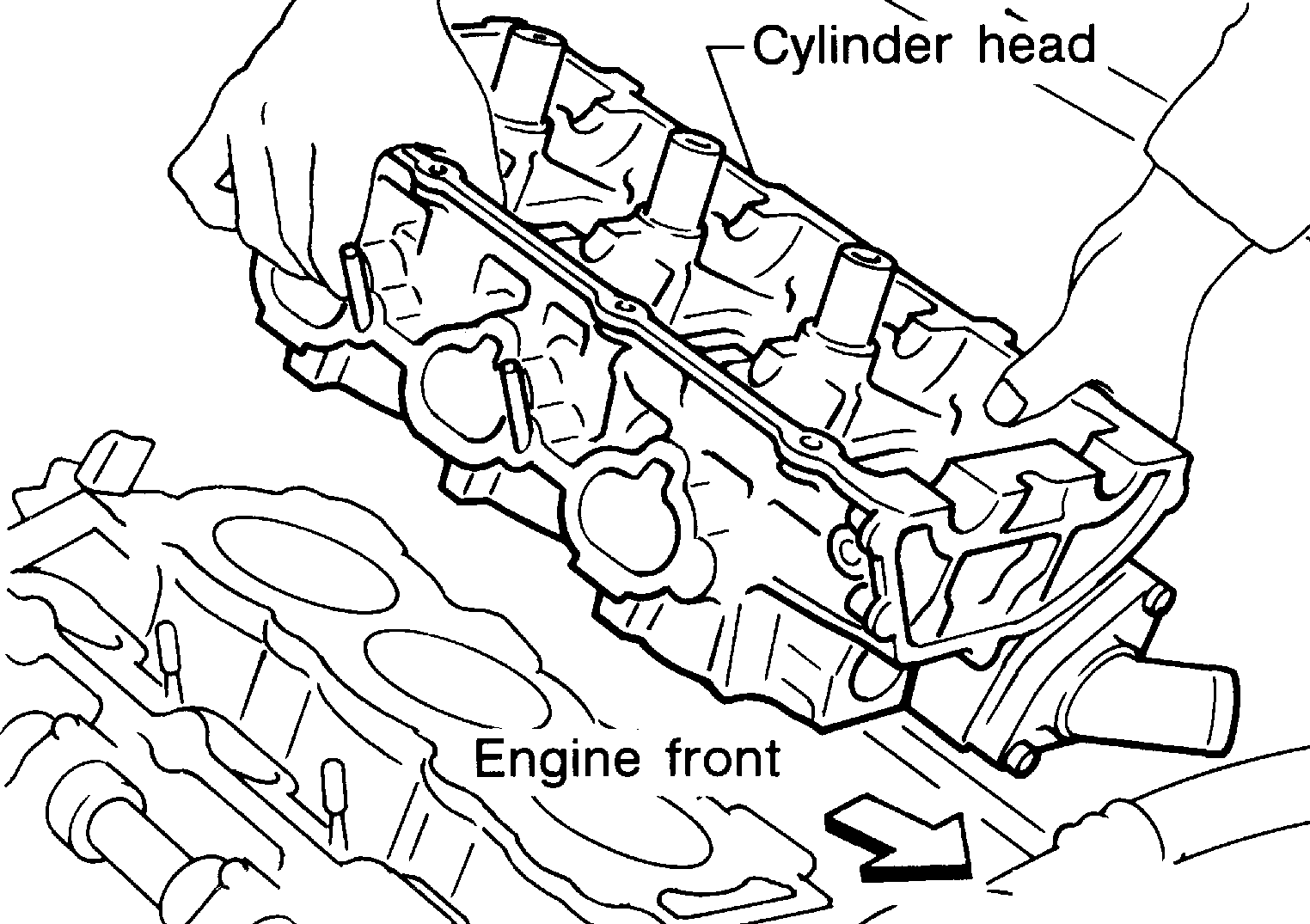

    G04159824Courtesy of NISSAN NORTH AMERICA, INC.
    • Discard the cylinder head gaskets and use new gaskets for installation.
