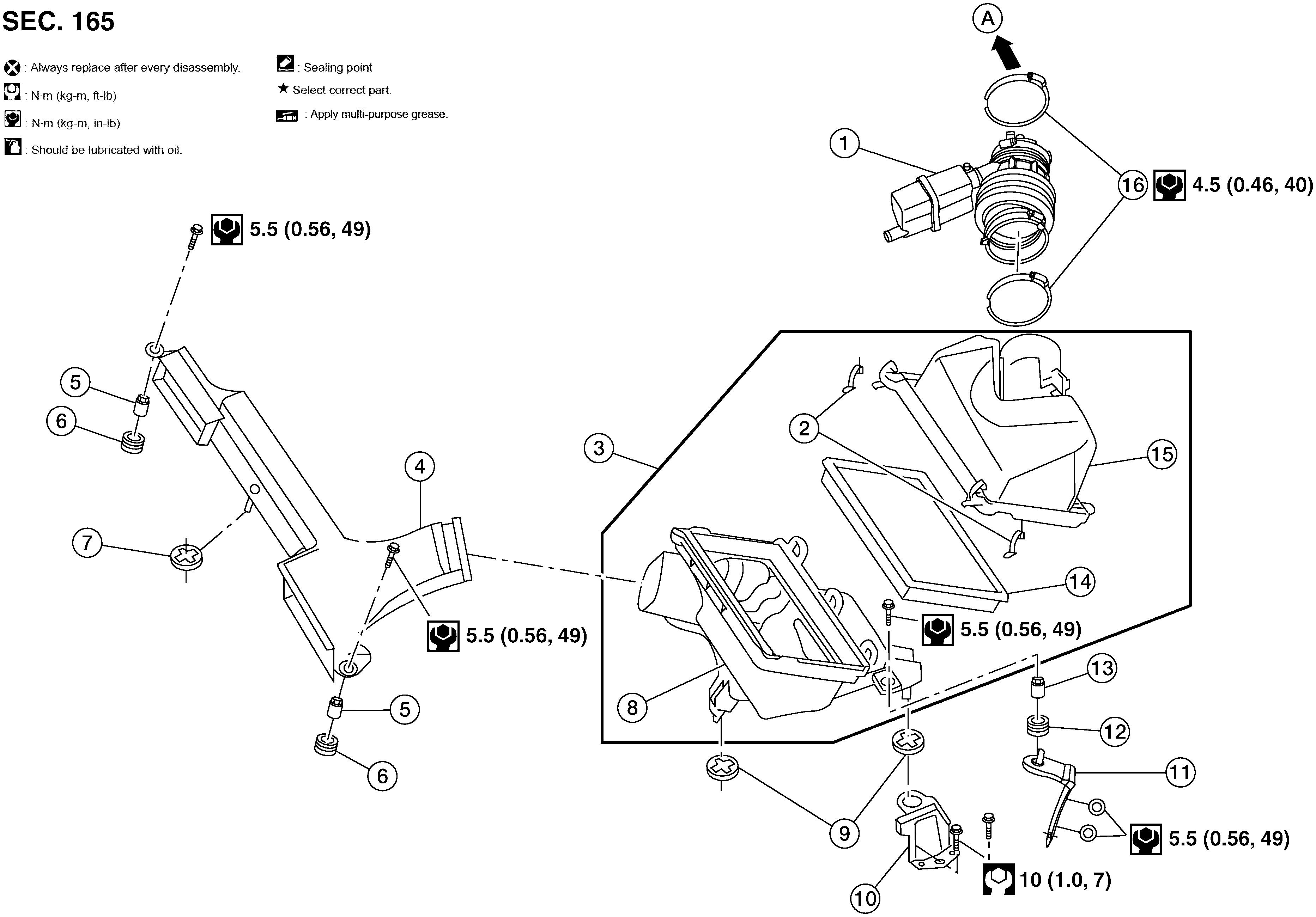

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Air duct hose and resonator assembly |
2. |
Clips |
3. |
Air cleaner assembly |
|
4. |
Front air duct |
5. |
Retainer |
6. |
Mounting rubber |
|
7. |
Grommet |
8. |
Air cleaner case (lower) |
9. |
Grommet |
|
10. |
Air cleaner case mounting bracket |
11. |
Bracket |
12. |
Mounting rubber |
|
13. |
Retainer |
14. |
Air cleaner filter |
15. |
Air cleaner case (upper) |
|
16. |
Clamp |
A. |
To electric throttle control actuator. Refer to Exploded View . |
