Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to Recycle Refrigerant .
Remove the core support cover. Refer to Exploded View .
Remove the bolt that retains the condenser pipe assembly to the condenser.

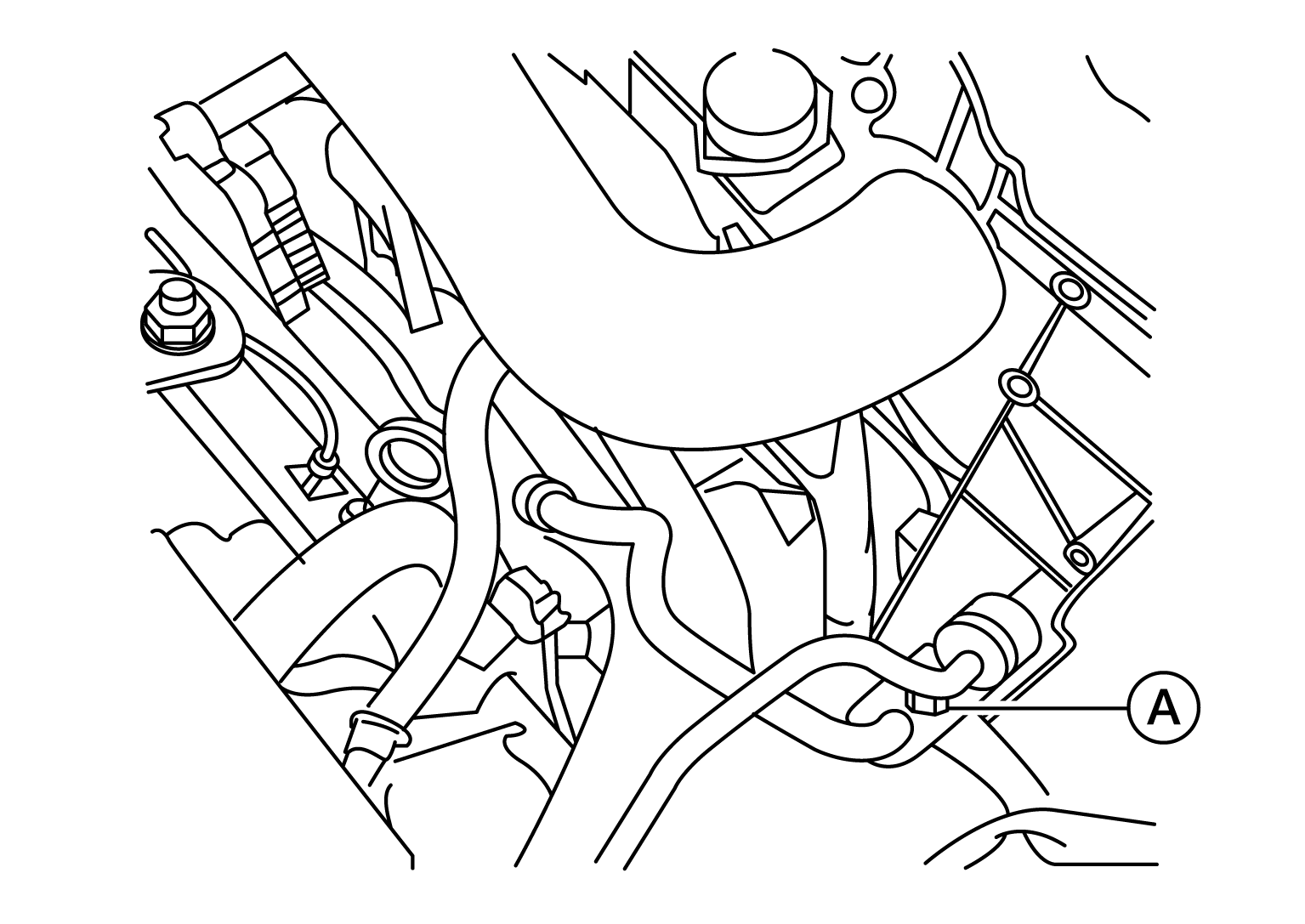

Remove the bolt (A) that retains the condenser pipe assembly to the high-pressure flexible hose and high-pressure pipe.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the condenser pipe assembly.
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
