Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

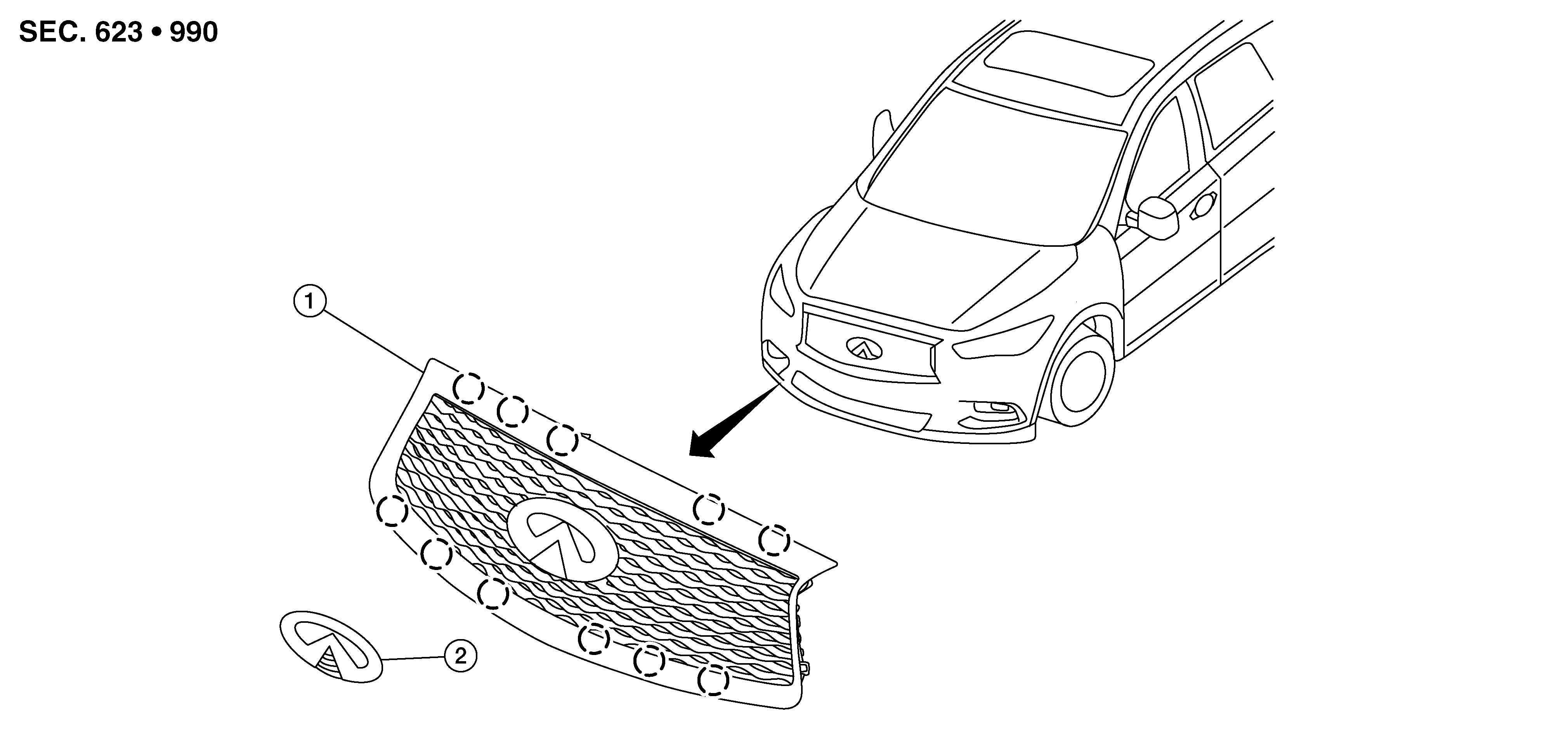

GNSAWKIA3943Z-943Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front grille

2.

Front emblem

SYMBOL

Pawl
