Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
    CAUTION: Make sure the vehicle cannot move with the parking brake applied.
  2. Remove shift lock override button cover (1) using suitable tool, and insert suitable tool into opening (A) to depress the shift lock override button. Move shift selector to "N" position while depressing shift lock override button.

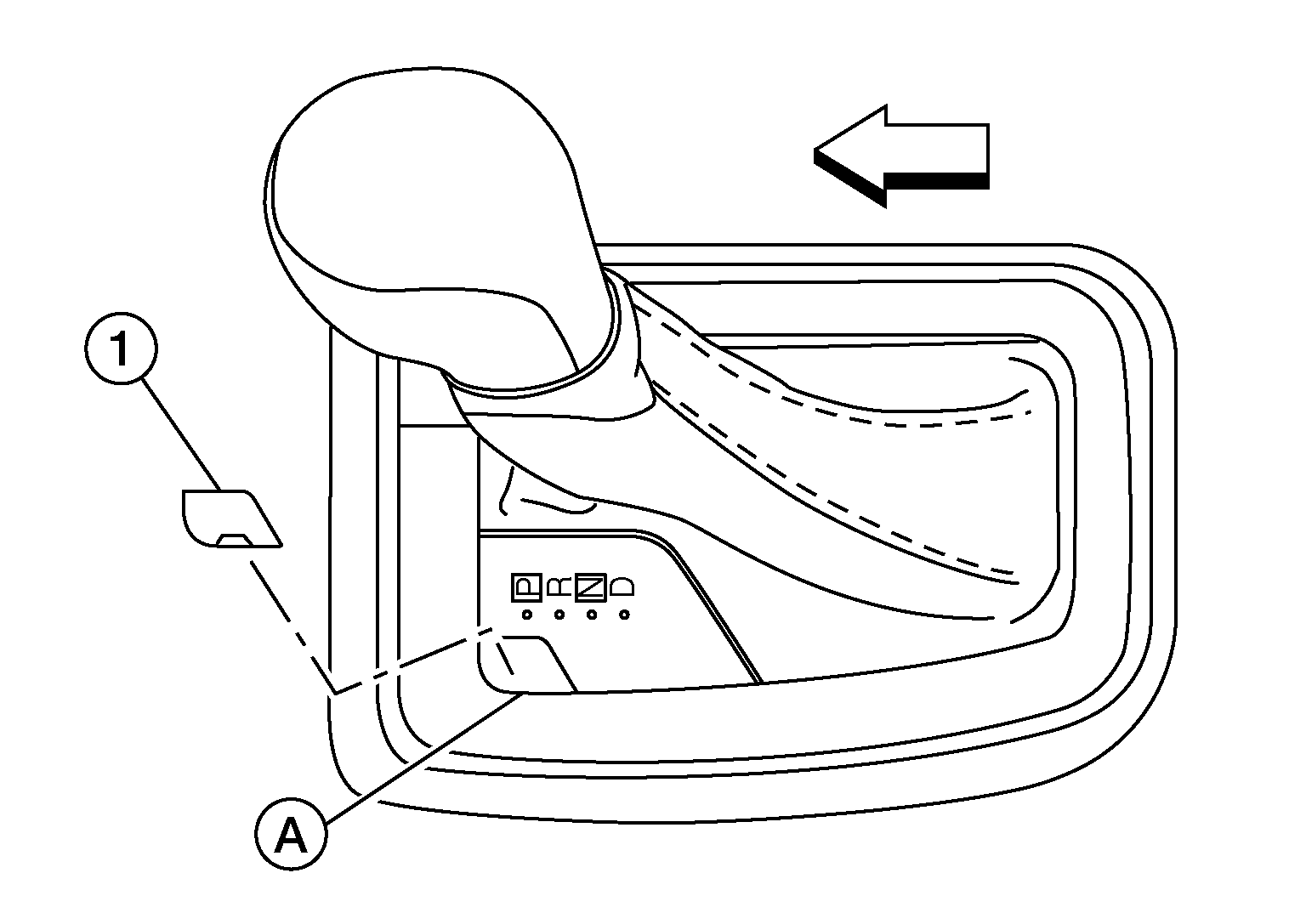

    GNSAWDIA1556Z-556Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  3. Slide shift selector boot (3) downward.

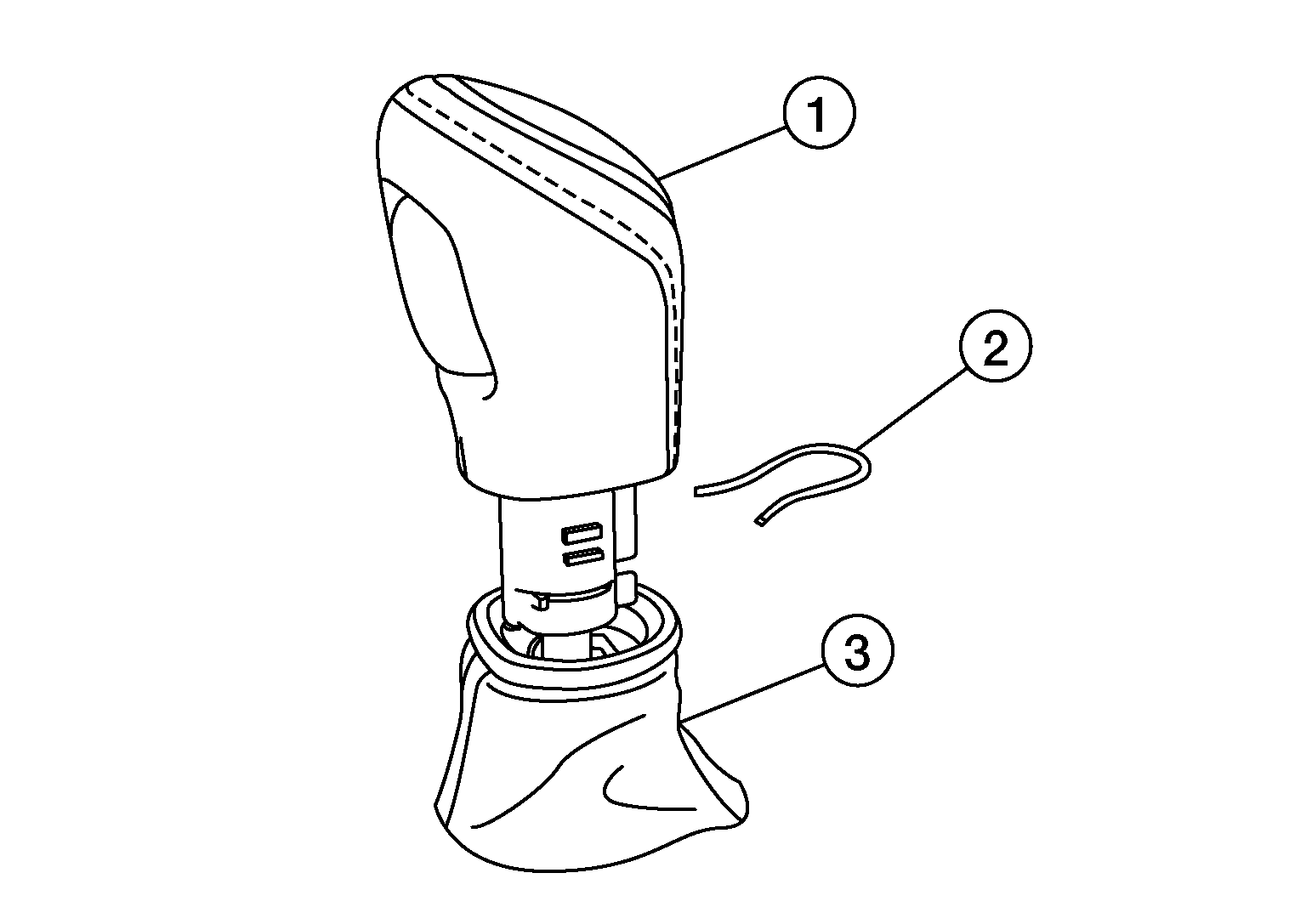

    GNSAWDIA1557Z-557Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage shift selector boot.
  4. Pull shift selector handle clip (2) out of shift selector handle (1).
  5. Remove shift selector handle (1).
  6. Remove center console upper side finisher (LH). Refer to Exploded View .
  7. Release center console side finisher (LH/RH) clip and pawls using a suitable tool and remove.
    GNSDB120153Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Clip

    SYMBOL : Pawl

    SYMBOL : Front

  8. Release shift selector finisher clips and pawls using a suitable tool, disconnect the harness connectors and remove. Refer to Exploded View .
  9. Depress shift lock override button and move shift selector to "P" position.
  10. Remove control cable (1) from shift selector assembly (2).

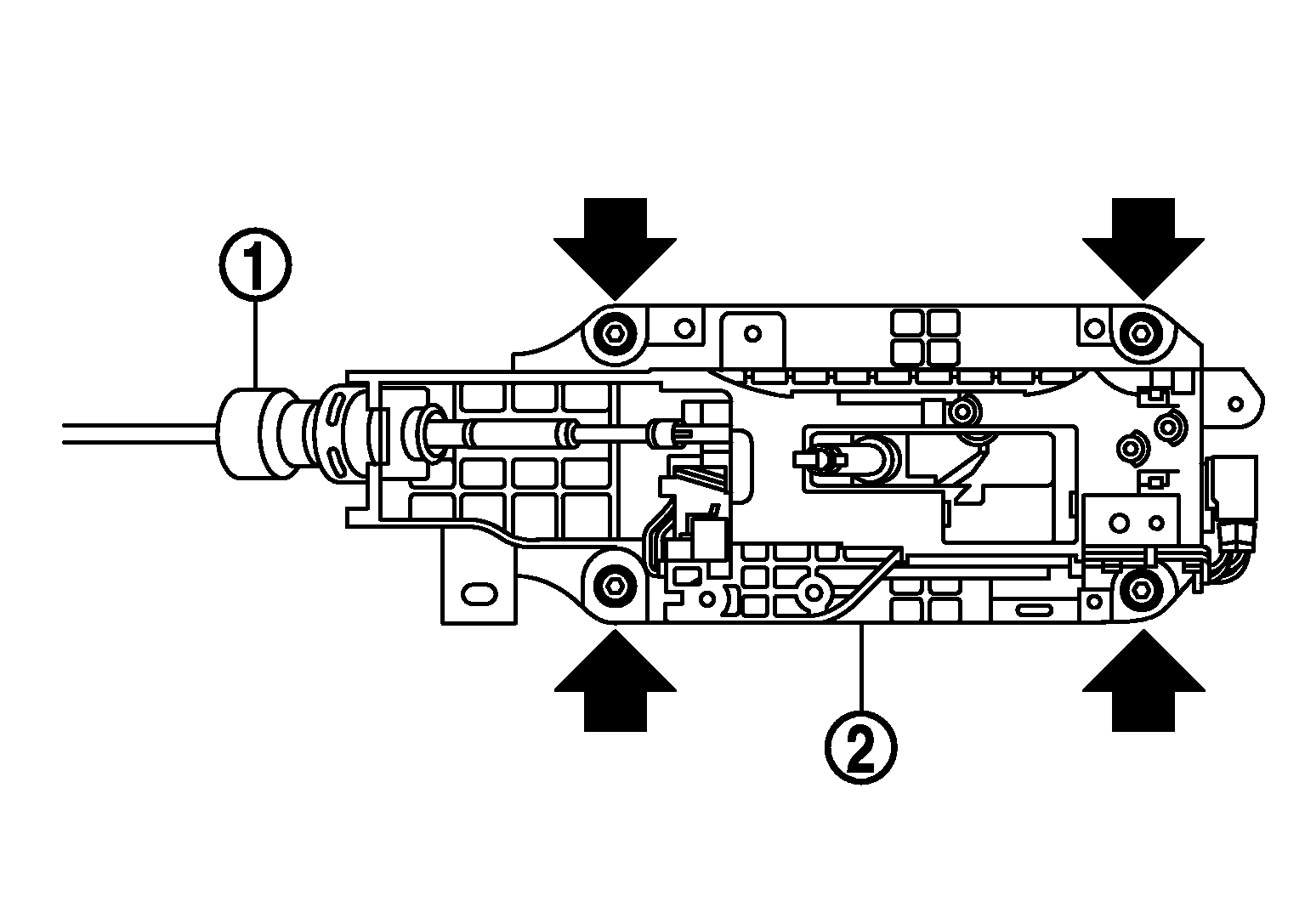

    GNSJPDIA0615Z-615Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove shift selector assembly nuts (SYMBOL ), using suitable tool.

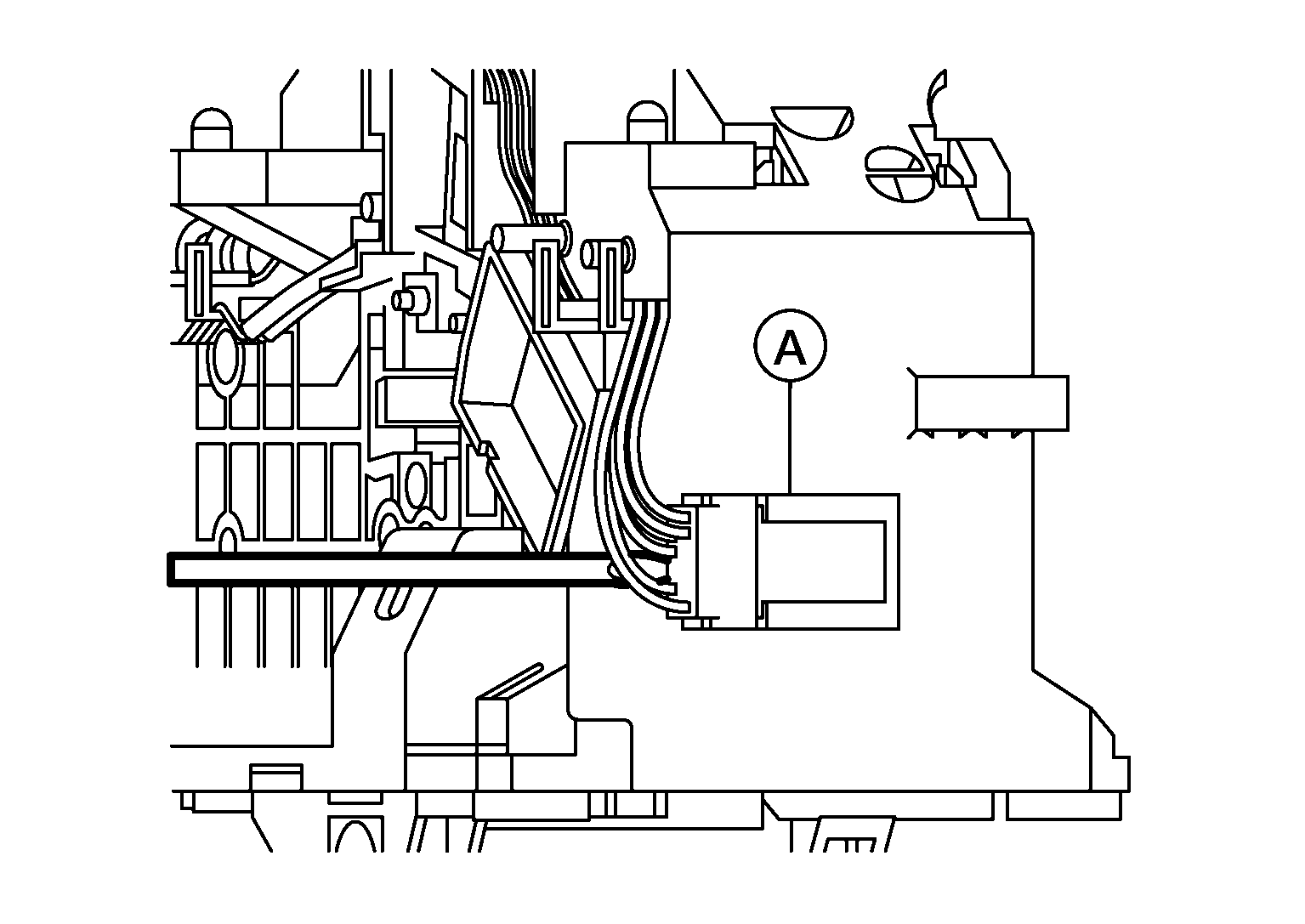

  12. Disconnect shift selector harness connector (A), using a suitable tool.
    GNSAWDIA0558Z-558Courtesy of NISSAN NORTH AMERICA, INC.
  13. Remove shift selector assembly from the vehicle.
  14. Remove shift lock unit from shift selector assembly.
