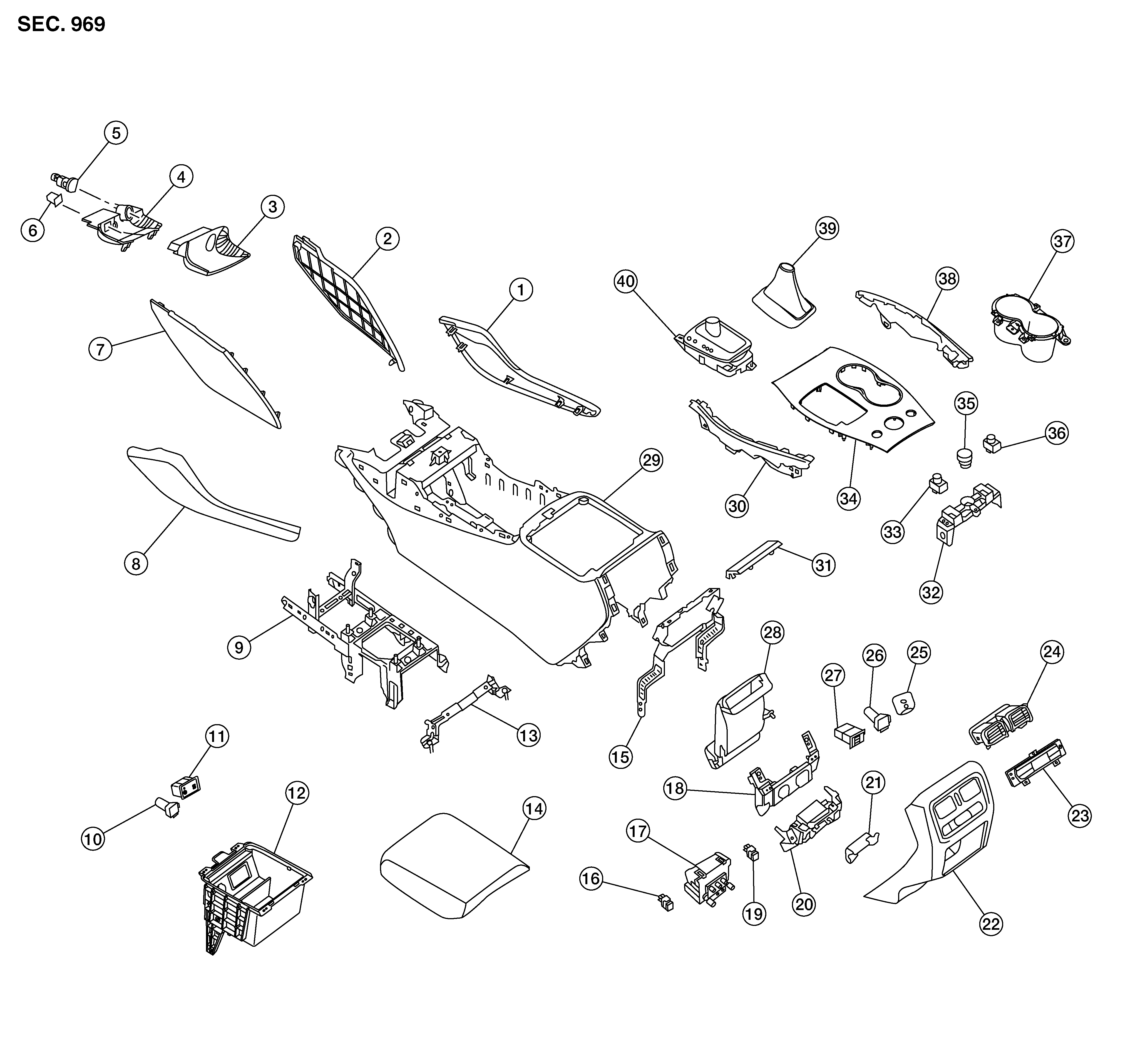

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center console upper side finisher (RH)	2.	Center console side finisher (RH)	3.	Front console mat
4.	Front console tray	5.	Power socket	6.	Front USB charge port
7.	Center console side finisher (LH)	8.	Center console upper side finisher (LH)	9.	Center console brace
10.	Power socket	11.	Front auxiliary input jacks	12.	Center console bin
13.	Center console upper brace	14.	Center console lid	15.	Center console rear brace
16.	2nd row heated seat switch LH (if equipped)	17.	Rear auxiliary input jacks (if equipped)	18.	Center console rear finisher upper bracket
19.	2nd row heated seat switch RH (if equipped)	20.	Center console rear finisher lower bracket	21.	Intelligent Key antenna
22.	Center console rear finisher	23.	Rear blower control	24.	Rear center ventilator grille assembly
25.	AC 120 V outlet (if equipped)	26.	Power socket (if equipped)	27.	Rear USB charge port (if equipped)
28.	Rear center ventilator duct	29.	Center console	30.	Shift selector finisher (LH)
31.	Center console rear brace finisher	32.	Center console switch bracket	33.	Front seat climate control switch (LH)
34.	Shift selector finisher	35.	Drive mode selector switch	36.	Front seat climate control switch (RH)
37.	Center console cup holder	38.	Shift selector finisher (RH)	39.	Shift selector boot
40	Shift selector
