Automatic Transmission
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
|

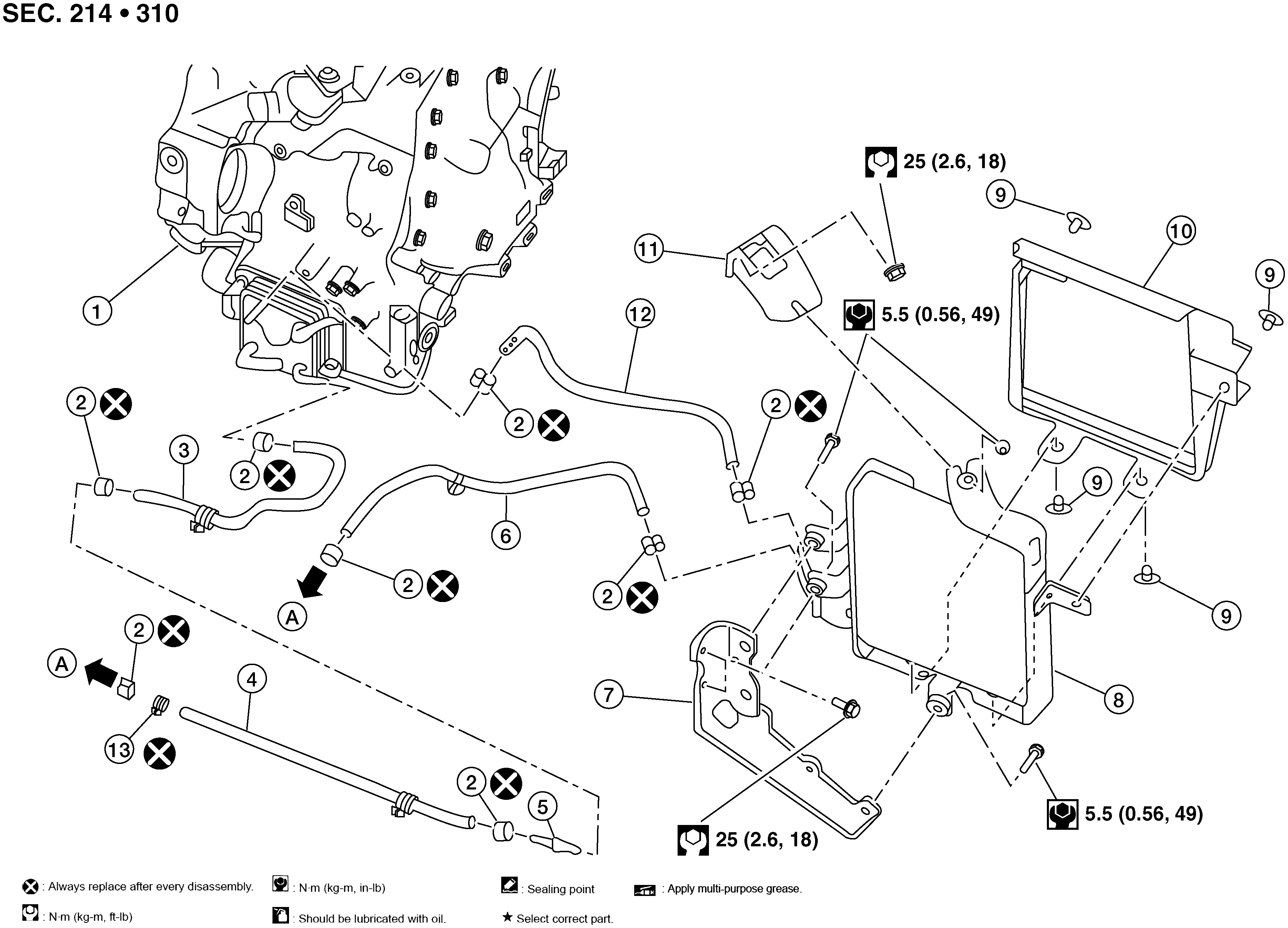

Transaxle assembly |
|
Hose clamp |
|
CVT fluid cooler hose A |
|
|
CVT fluid cooler hose B |
|
Connector tube |
|
CVT fluid cooler hose C |
|
|
Bracket |
|
CVT fluid cooler (auxiliary) |
|
Clip |
|
|
Air guide |
|
Bracket |
|
CVT fluid cooler hose D |
|
|
CVT fluid hose clamp (wire type) |
|
To radiator. Refer to Exploded View. |
||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
