Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel tweeter grille LH. Refer to Exploded View .
- Disconnect the harness connector from the sunload sensor.

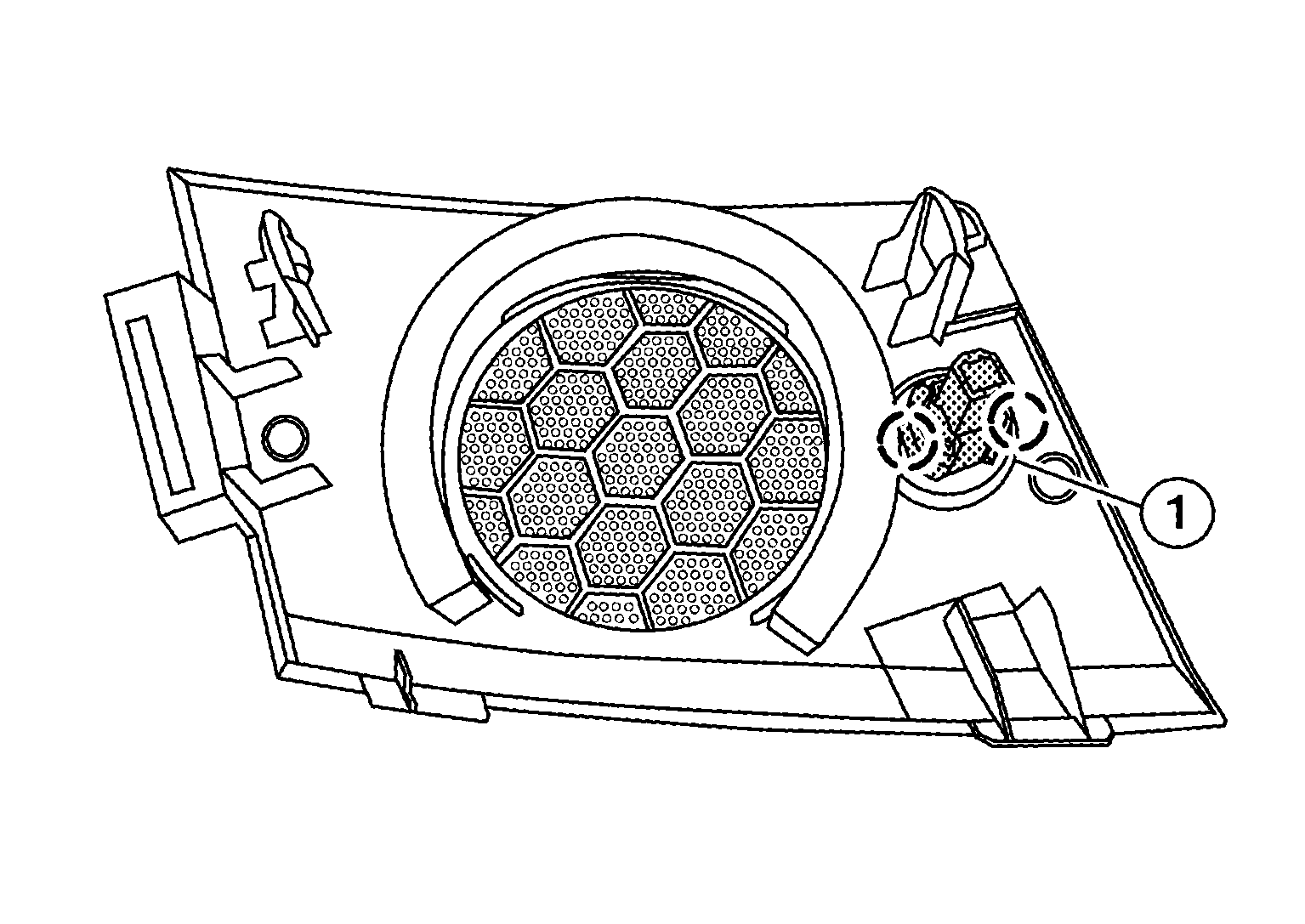

- Release the pawls, then remove sunload sensor (1) from the instrument panel tweeter grille LH.
: Pawl
