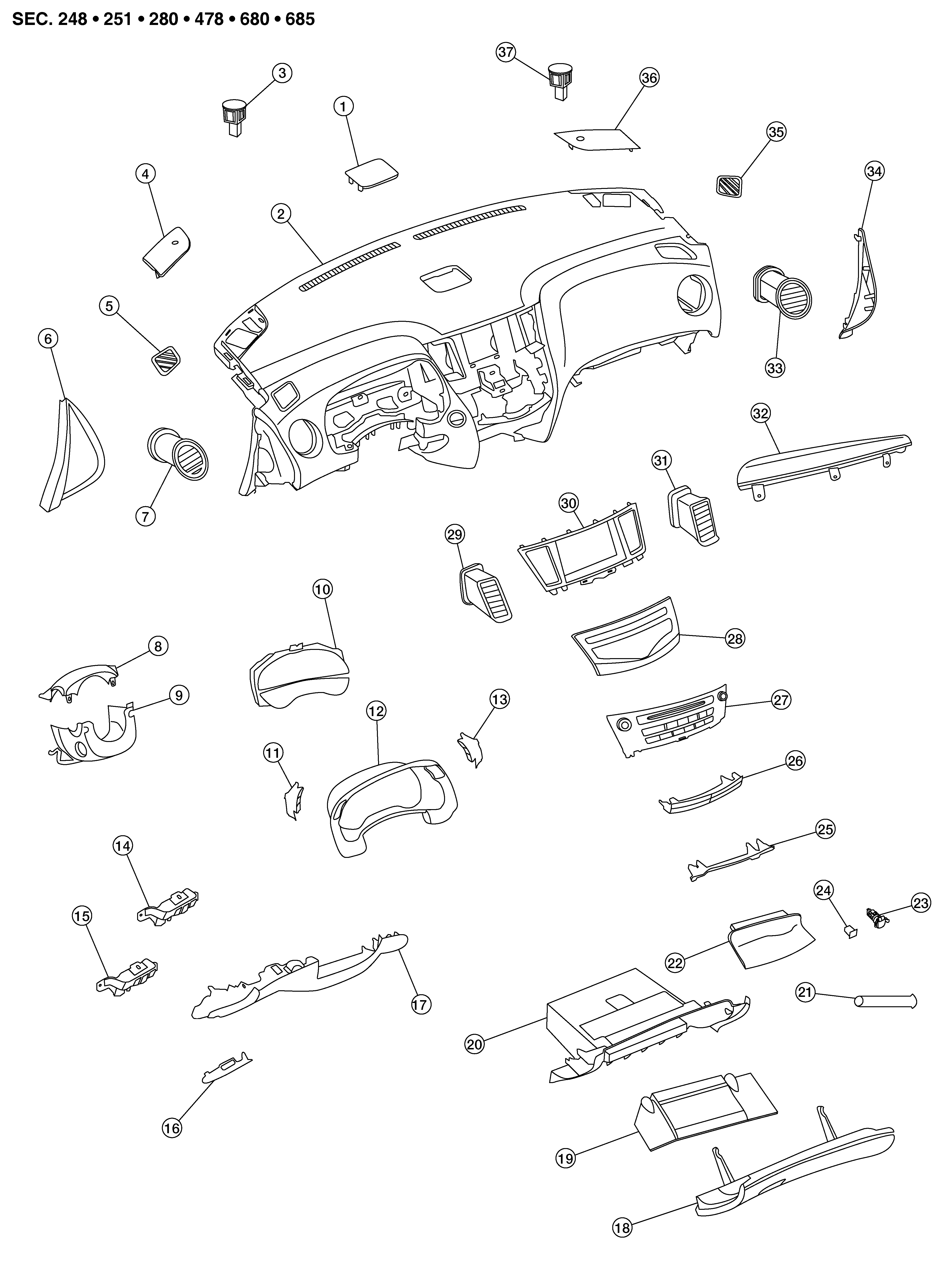

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center speaker grille	2.	Instrument panel assembly	3.	Sunload sensor
4.	Instrument panel tweeter grille (LH)	5.	Side defroster grille (LH)	6.	Instrument side finisher (LH)
7.	Side ventilator grille (LH)	8.	Steering column upper cover	9.	Steering column lower cover
10.	Combination meter	11.	Illumination control switch	12.	Cluster lid A
13.	BCI (if equipped) / trip computer switch	14.	Upper switch carrier	15.	Lower switch carrier
16.	Fuse block cover	17.	Instrument lower panel LH	18.	Glove box lid
19.	Glove box tray	20.	Glove box	21.	Glove box dampener
22.	Front console tray and mat	23.	Power socket	24.	Front USB charge port
25.	Cluster lid C lower	26.	Cluster lid C	27.	Multifunction switch
28.	Cluster lid C upper	29.	Center ventilator grille (LH)	30.	Cluster lid D
31.	Center ventilator grille (RH)	32.	Instrument finisher E	33.	Side ventilator grille (RH)
34.	Instrument side finisher (RH)	35.	Side defroster grille (RH)	36.	Instrument panel tweeter grille (RH)
37.	Optical sensor
