Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Drain washer fluid.

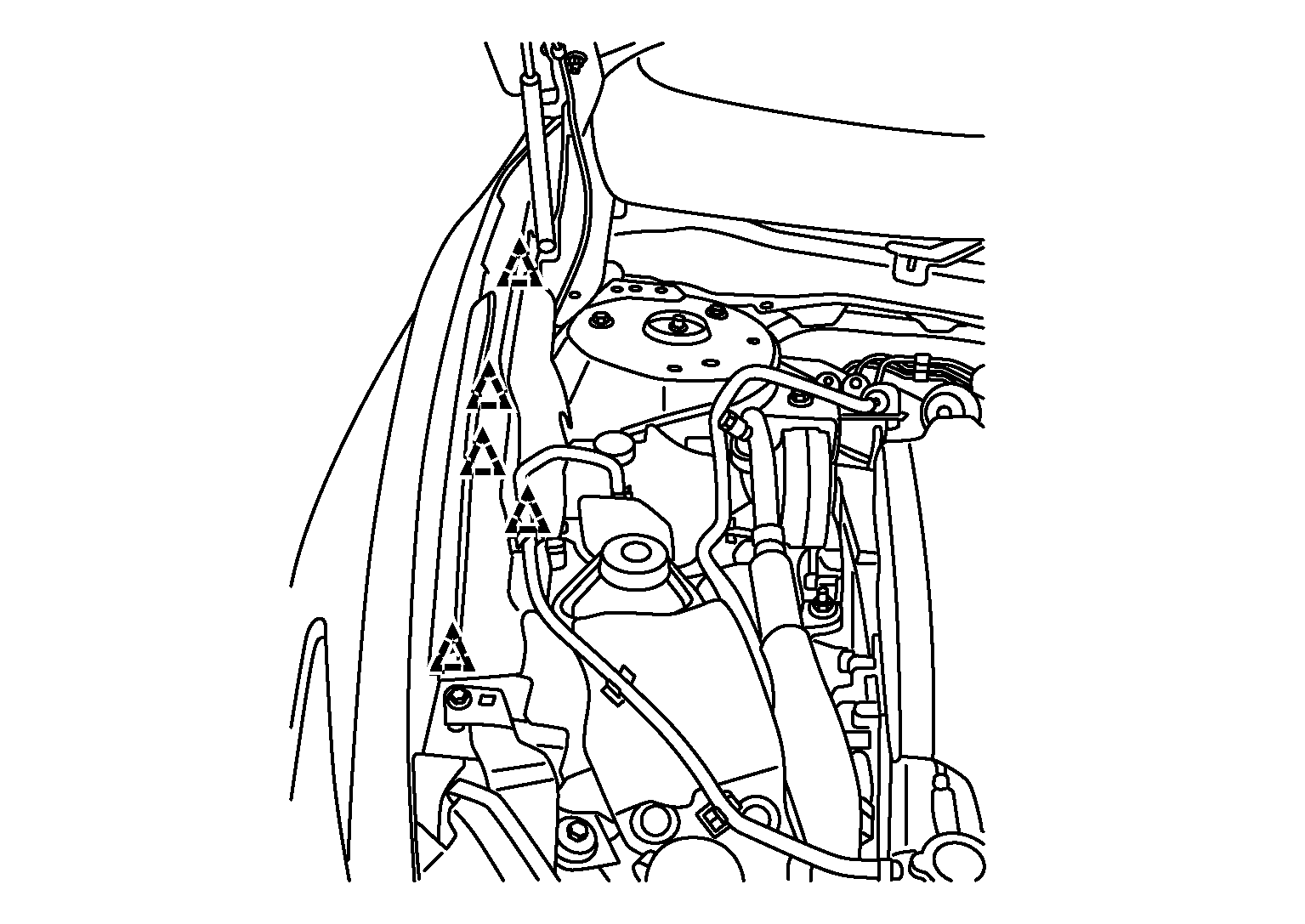

- Remove clips using suitable tool and hood ledge finisher (RH).
: Clip
- Remove hood insulator. Refer to Exploded View .
- Disconnect washer tube from washer nozzles (LH/RH).
- Remove fender protector (RH). Refer to Removal and Installation .
- Disconnect washer tube from front washer motor.
- Disconnect clips using suitable tool and remove washer tube.
