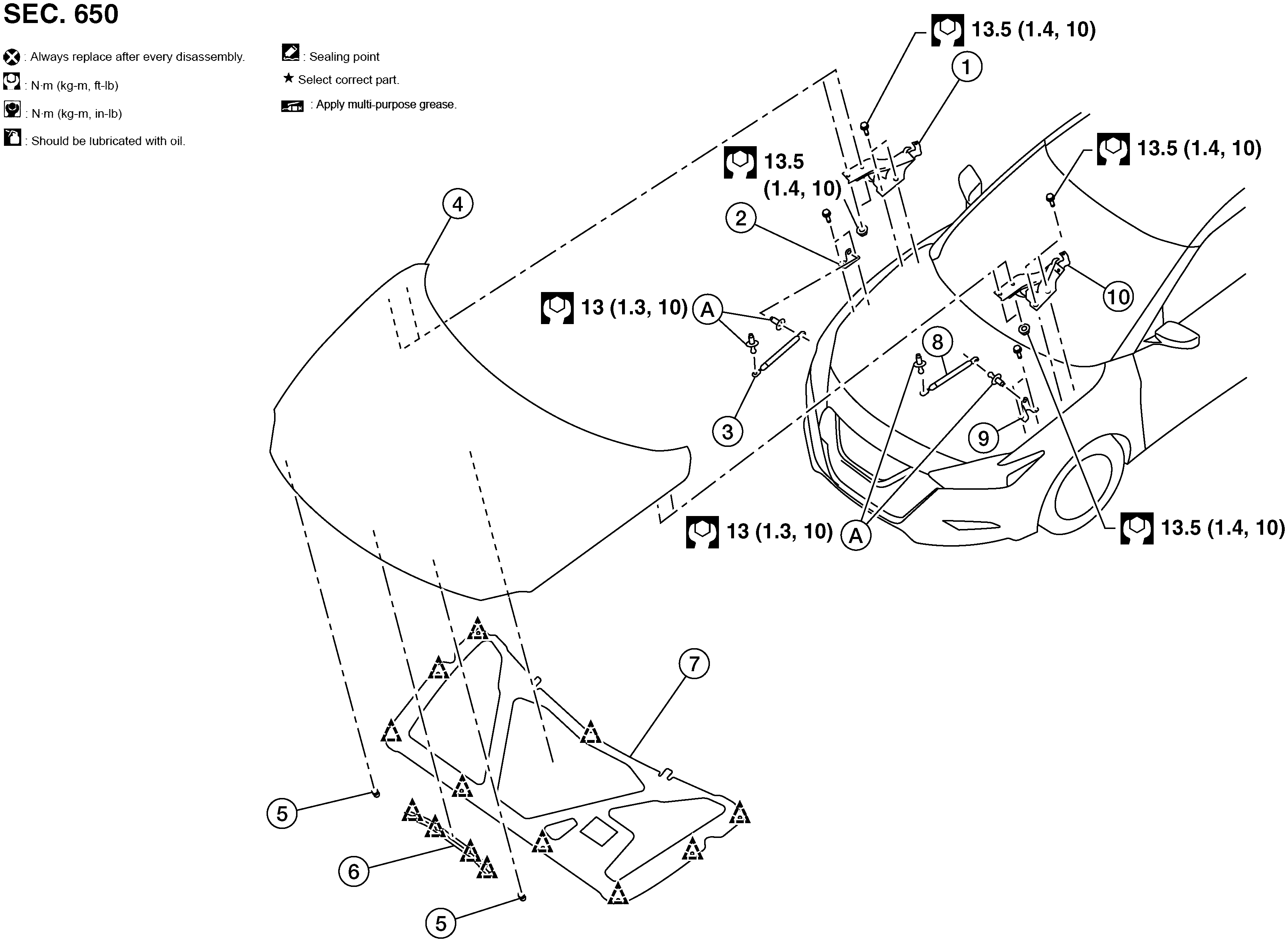

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Hood hinge (RH)
|
2.
|
Stud ball bracket (RH)
|
3.
|
Hood stay (RH)
|
|
4.
|
Hood
|
5.
|
Bumper rubber (LH/RH)
|
6.
|
Hood seal
|
|
7.
|
Hood insulator
|
8.
|
Hood stay (LH)
|
9.
|
Stud ball bracket (LH)
|
|
10.
|
Hood hinge (LH)
|
A.
|
Hood stay stud ball (LH/RH)
|
|
Clip
|
|
