Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove clips (A), then remove the core support cover (1).
    GNSALKIA4008Z-008Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

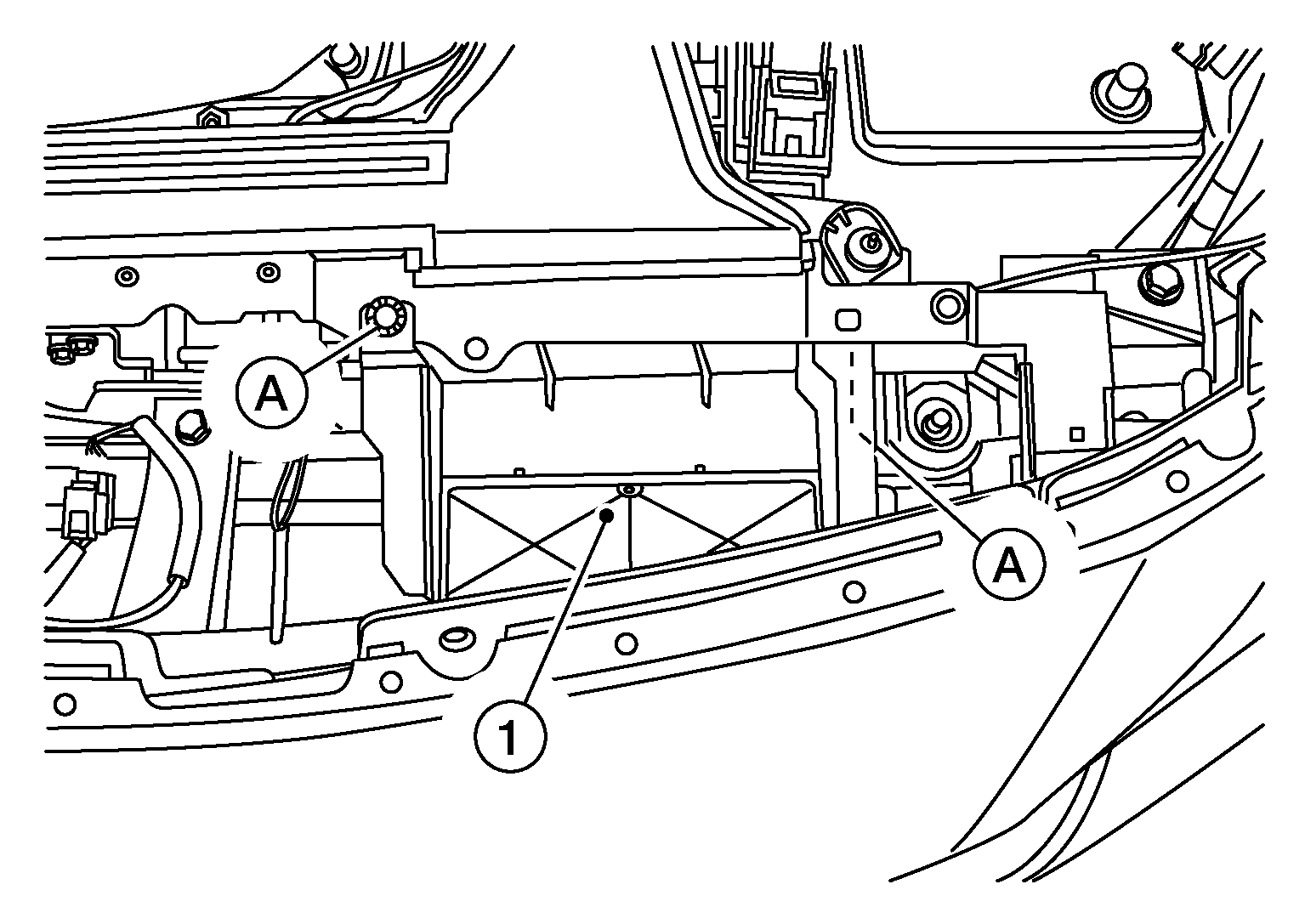

  2. Remove clips (A) and remove intake air duct splashguard (1).
    GNSALKIA4063Z-063Courtesy of NISSAN NORTH AMERICA, INC.

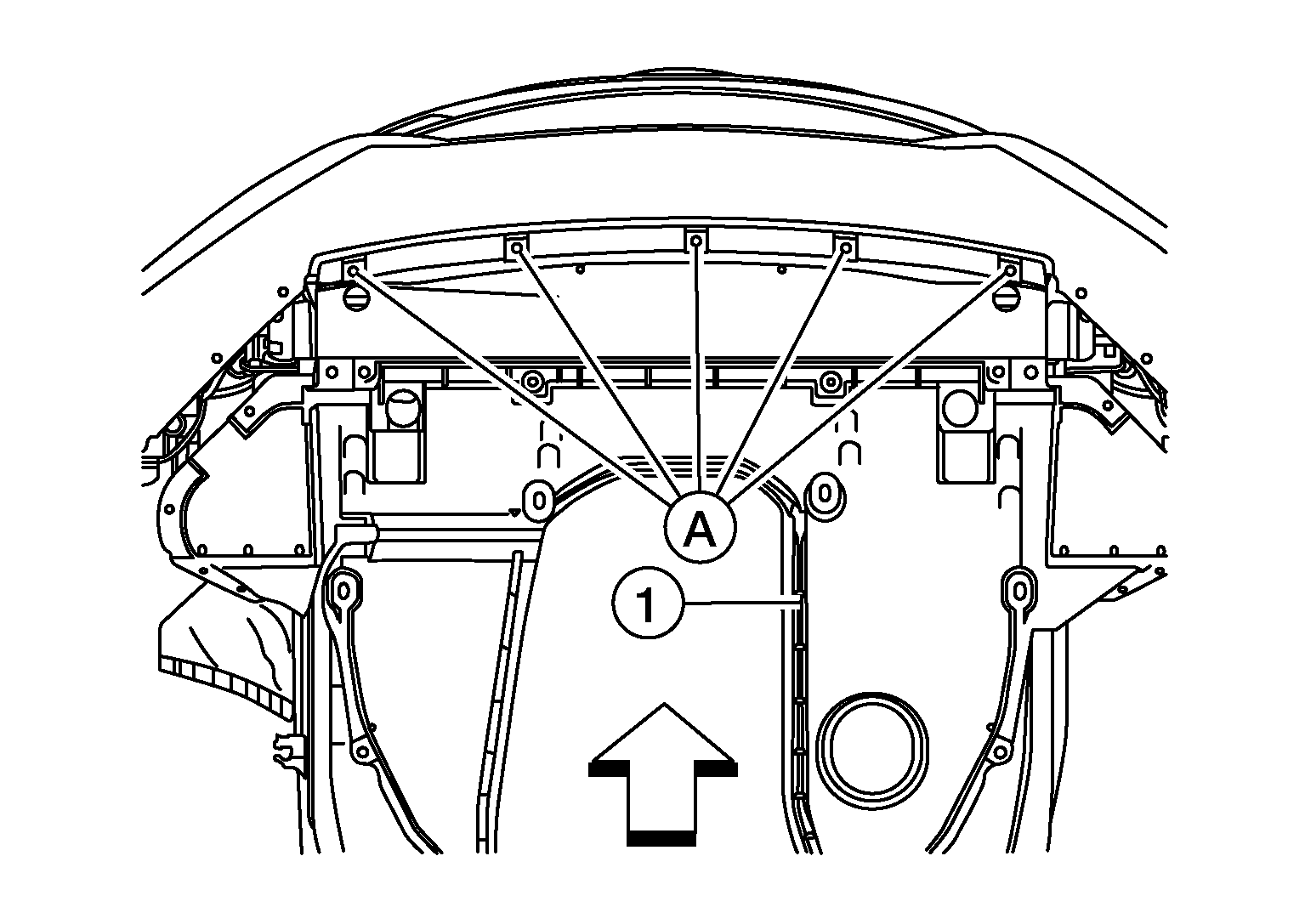

  3. Remove bolts (A) from engine undercover (1).
    GNSALKIA4009Z-009Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  4. Remove the front fender protector side covers (RH/LH). Refer to Exploded View .
  5. Partially remove front fender protector. Refer to Exploded View .

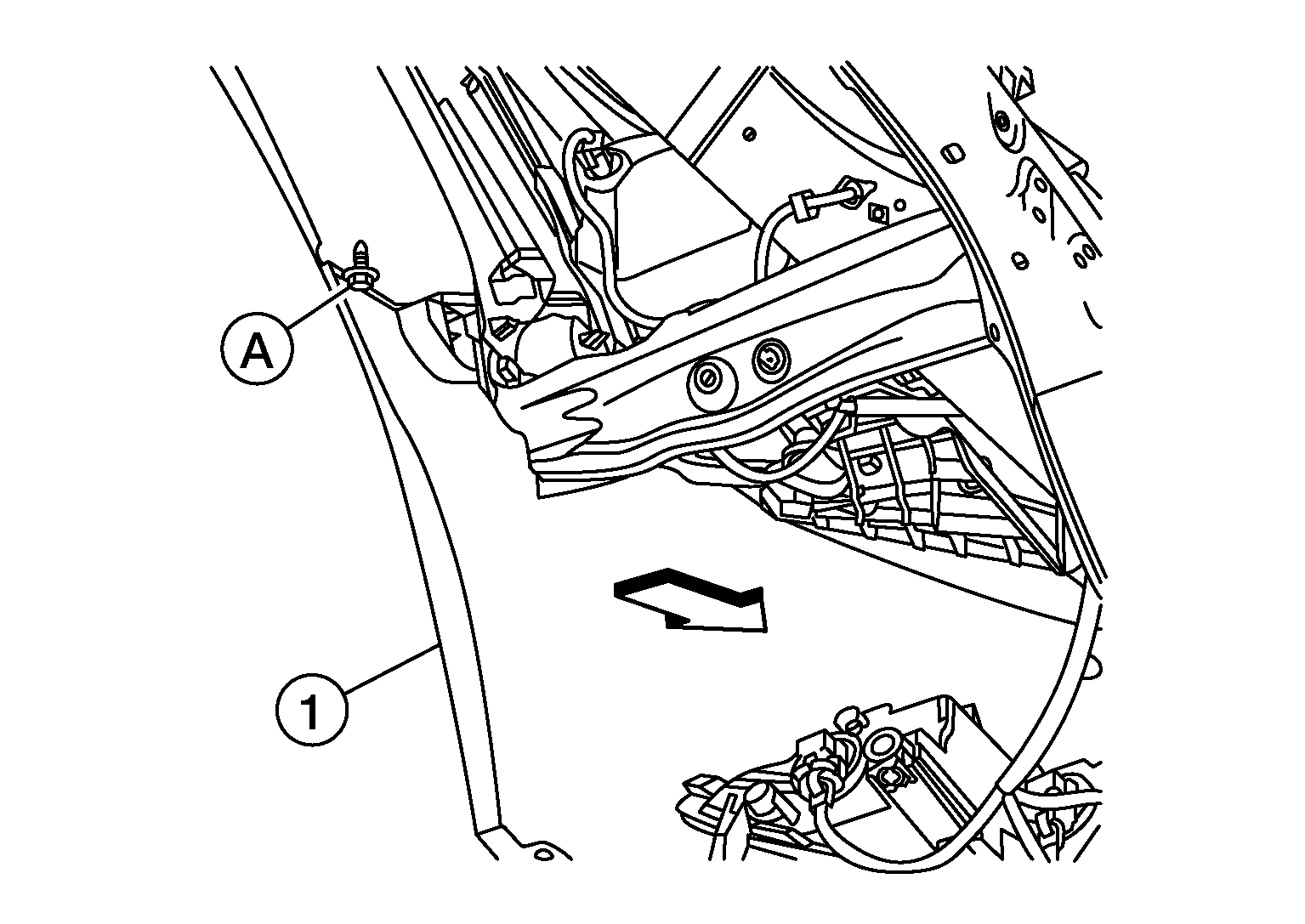

  6. Remove front fascia bolt (A) from front fascia (1).
    GNSALKIA4010Z-010Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
    NOTE: LH shown above, RH similar

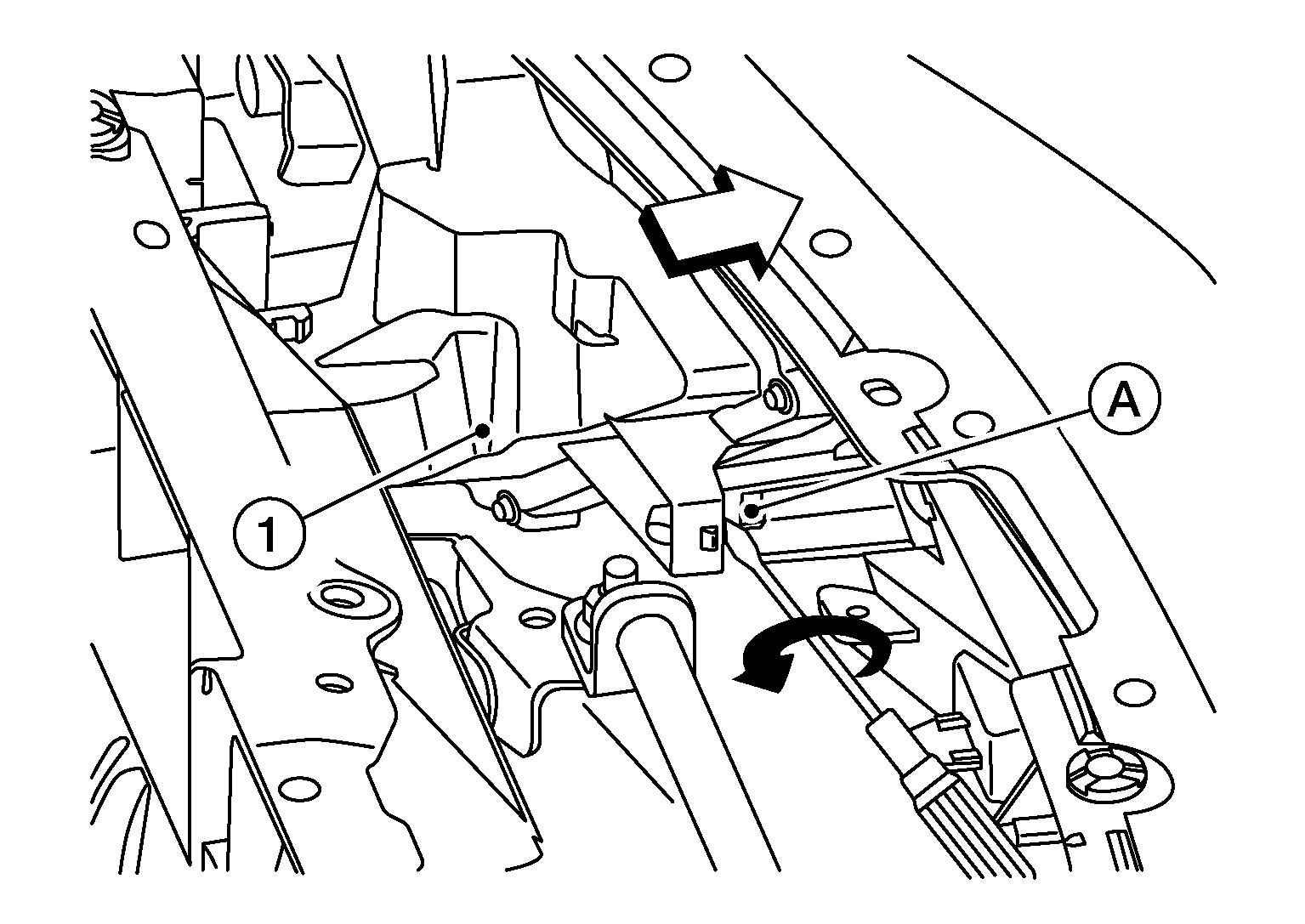

  7. To release turn fasteners, insert suitable tool into slot between turn fastener (A) and headlamp (1) and rotate as shown below.
    GNSALKIA4011Z-011Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  8. Disconnect the harness connectors from the following:
  9. Remove the front bumper fascia.
    CAUTION: When removing front bumper fascia, two operators are needed to prevent damage.
  10. Remove the following from the front bumper fascia after removing (if necessary):
  11. Remove front energy absorber (if necessary).
  12. Remove horns (high/low) (if necessary). Refer to Removal and Installation .

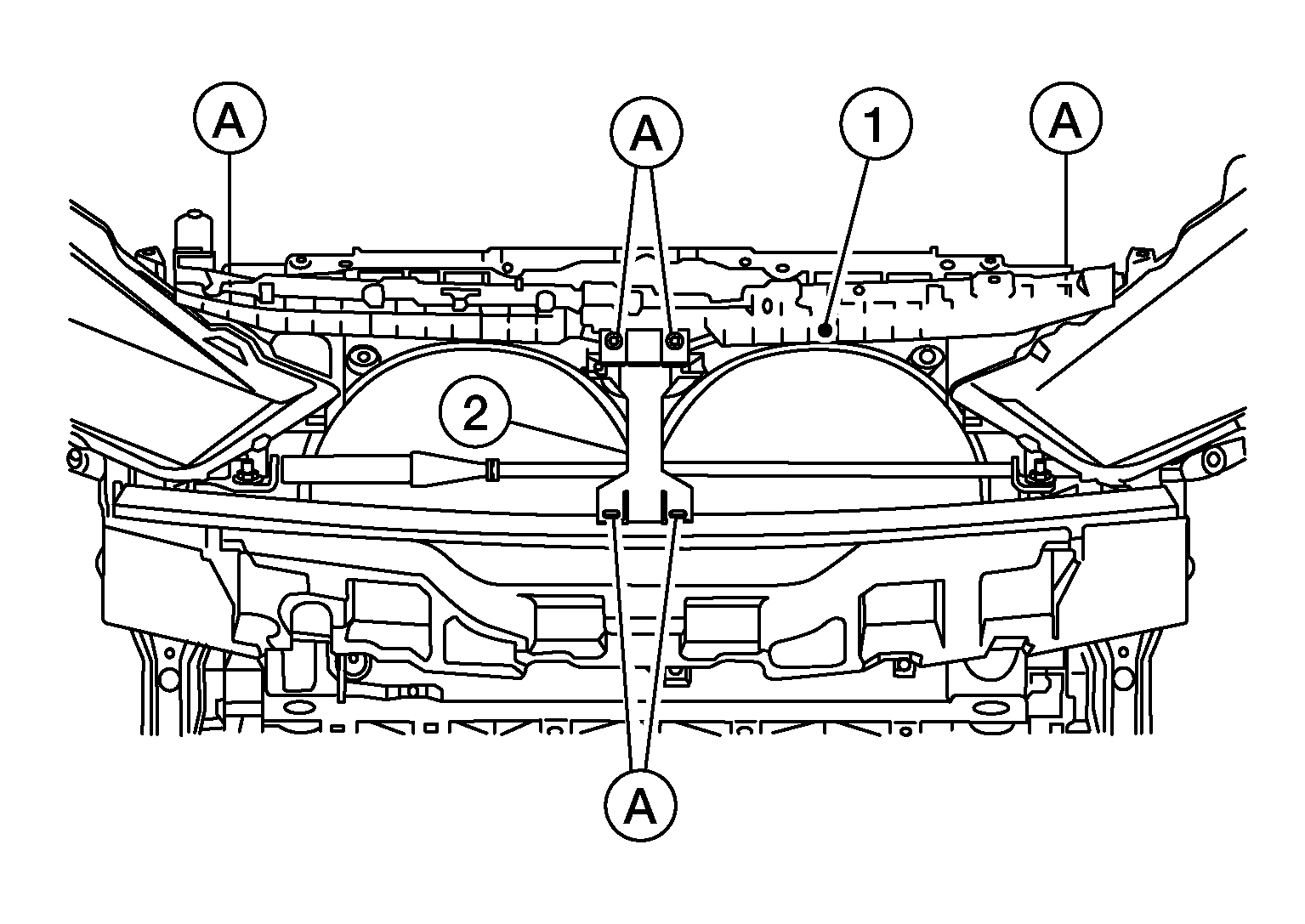

  13. Remove the bolts (A) and then remove bumper upper retainer (1) and bumper stay retainer (2) (if necessary).
    GNSALKIA4012Z-012Courtesy of NISSAN NORTH AMERICA, INC.
