Removal and Installation - Front Sonar Sensors

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove front bumper fascia. Refer to Removal and Installation .
Disconnect harness connector from front sonar sensor.

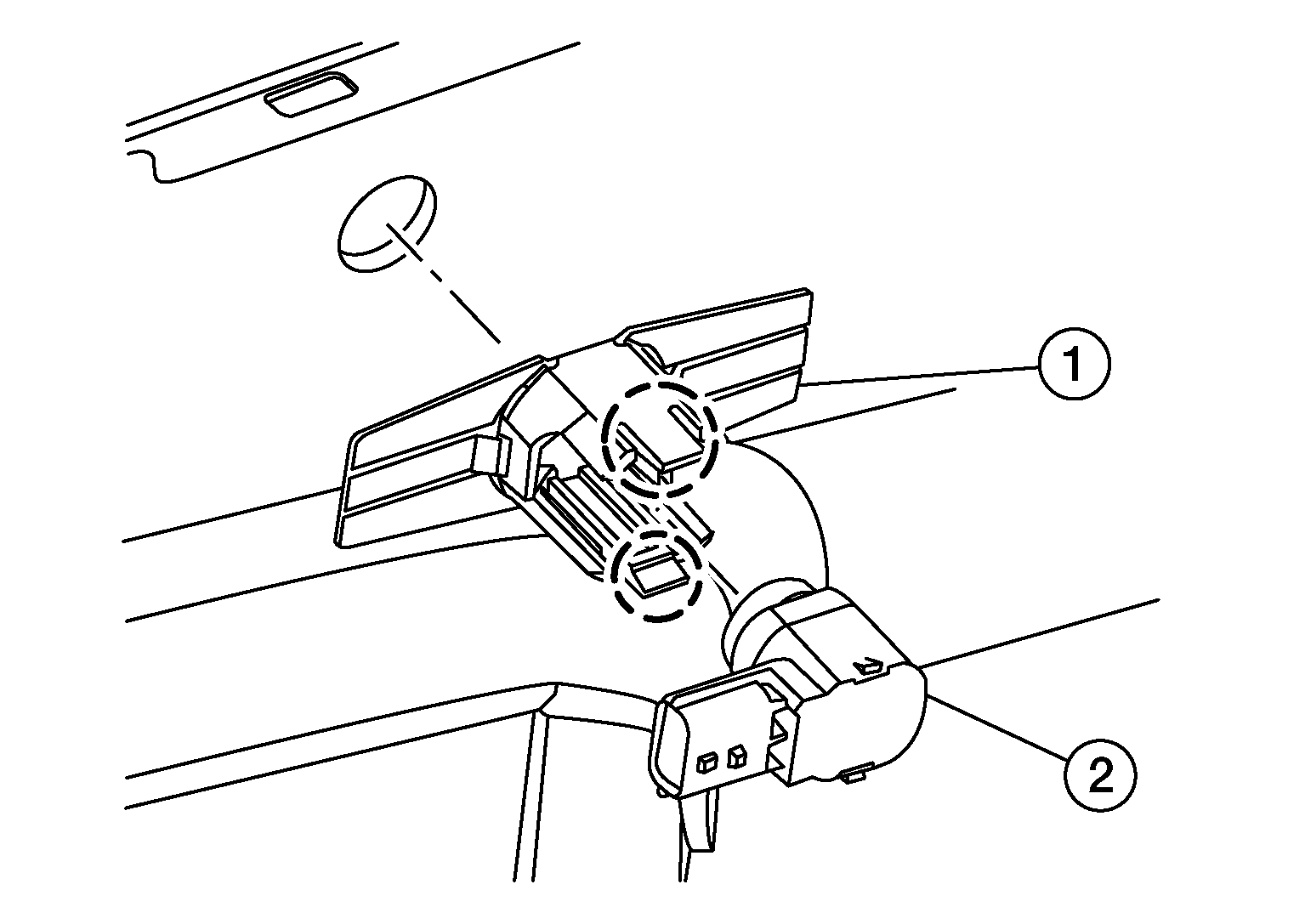

Release front sonar sensor finisher (1) pawls using suitable tool and remove front sonar sensor (2) from front sonar sensor finisher.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Remove front sonar sensor finisher (1) from front bumper fascia (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: If front sonar sensor finisher is replaced, clean area before installation.
