Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both wiper arms (RH/LH). Refer to Removal and Installation .
  2. Release the cowl top cover seal clips, then remove cowl top cover seal.

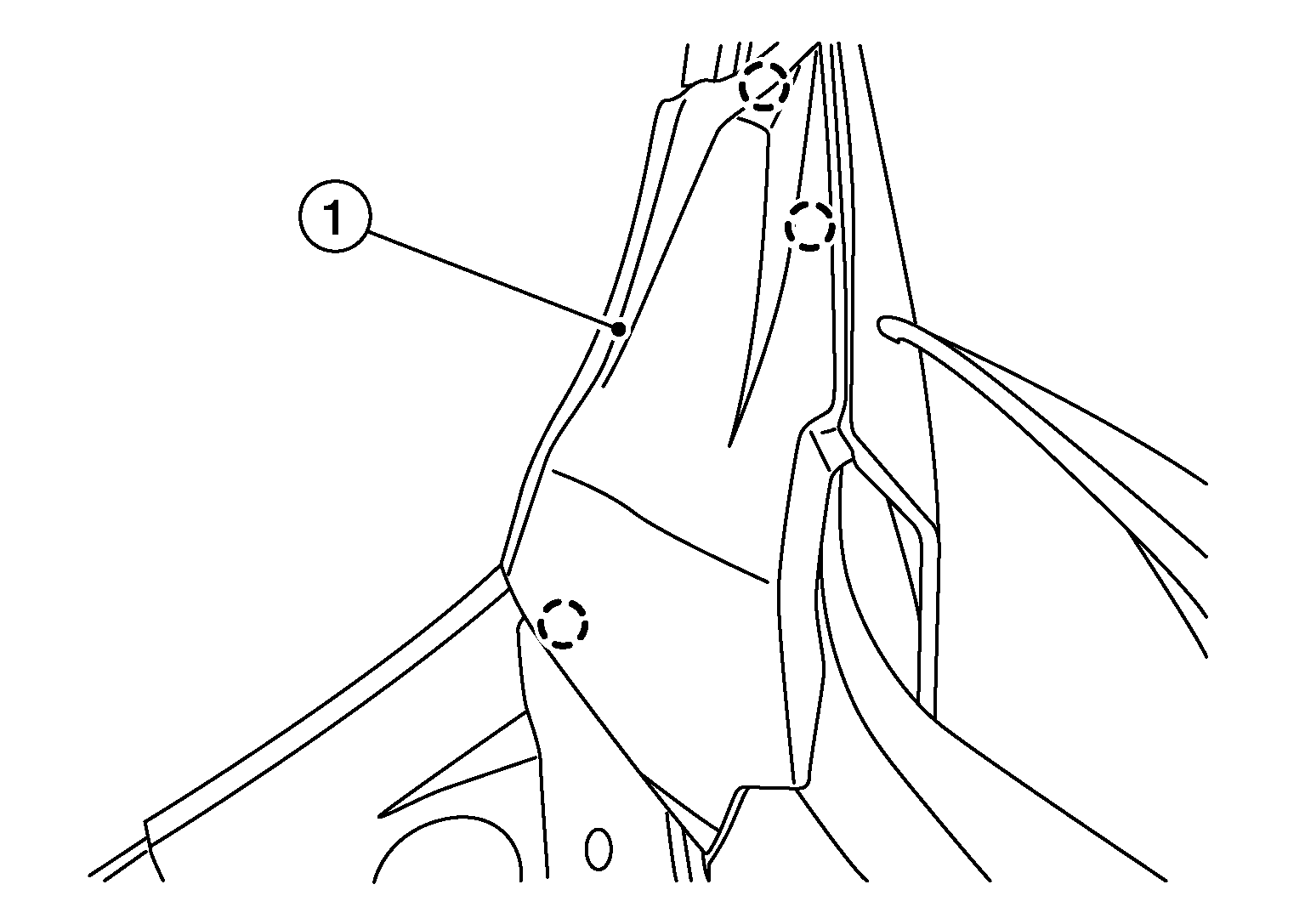

  3. Release the pawls, then remove the front fender covers (1) (RH/LH).
    NOTE: LH shown below, RH similar
    GNSALKIA4046Z-046Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  4. Disconnect the washer nozzle supply hose.
  5. Release the cowl top cover clips, then remove cowl top cover.
  6. Disconnect the harness connector from the wiper motor. Refer to Exploded View .
  7. Remove wiper motor harness clip and cowl top extension bolts, then remove the cowl top extension.
  8. Remove the front wiper drive assembly. Refer to Removal and Installation .
  9. Remove the cowl top brace (RH/LH) bolts, then remove cowl top brace (RH/LH) (if necessary).
