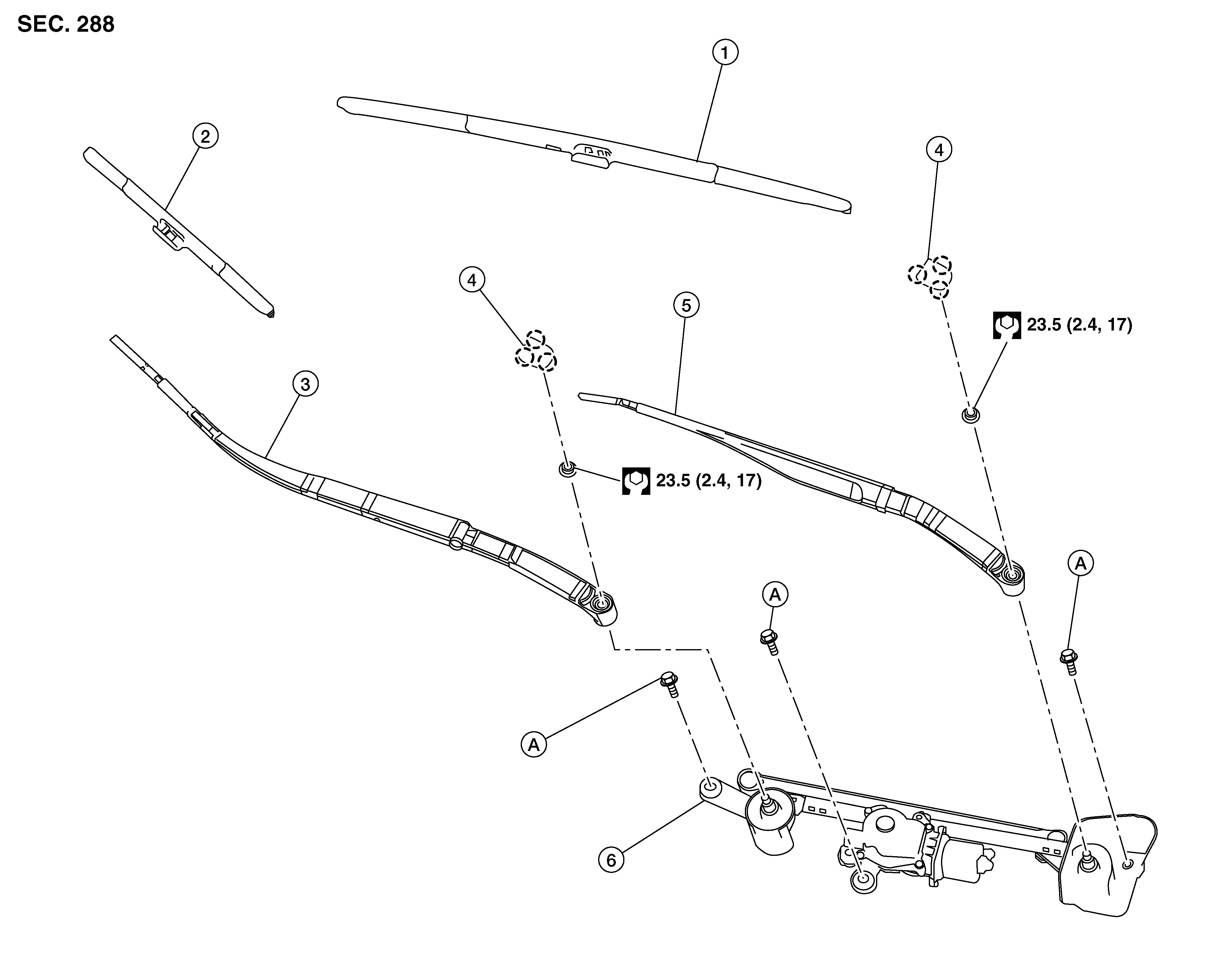

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Wiper blade (LH) |
2. |
Wiper blade (RH) |
3. |
Wiper arm (LH) |
|
4. |
Wiper arm cover |
5. |
Wiper arm (RH) |
6. |
Wiper drive assembly |
|
A. |
Refer to INSTALLATION |
|
Pawl |
