Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to Removal and Installation .
  2. Remove center console bin. Refer to Exploded View .
  3. Disconnect the harness connectors from the video distributor.

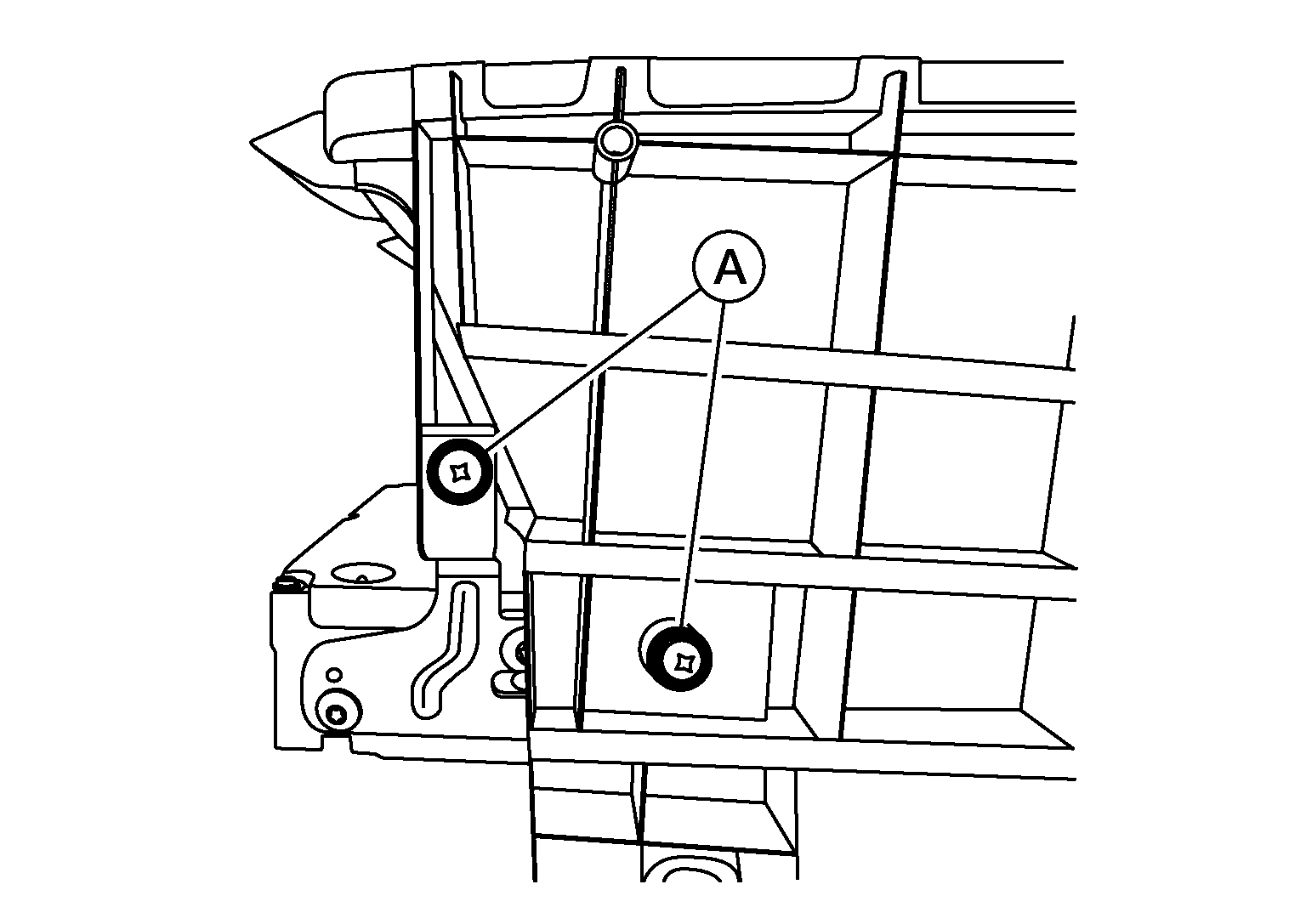

  4. Remove screws [A (LH/RH)].
    GNSALNIA2008Z-008Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH shown, RH similar.
  5. Remove the video distributor and brackets from the vehicle as a single unit.

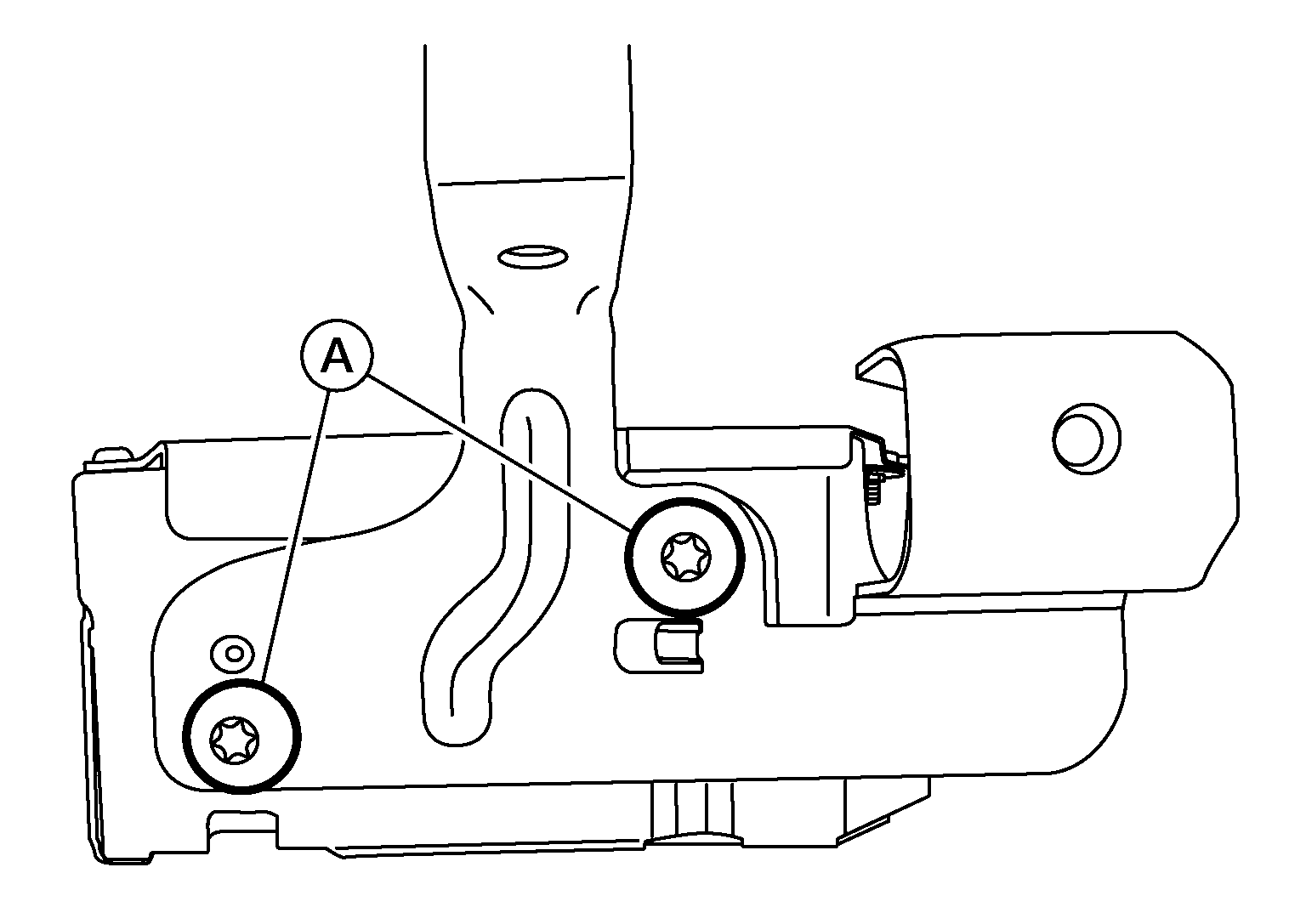

  6. Remove screws [A (LH/RH)].
    GNSALNIA2009Z-009Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH shown, RH similar.
  7. Remove video distributor.
