Toe-In Adjustment

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

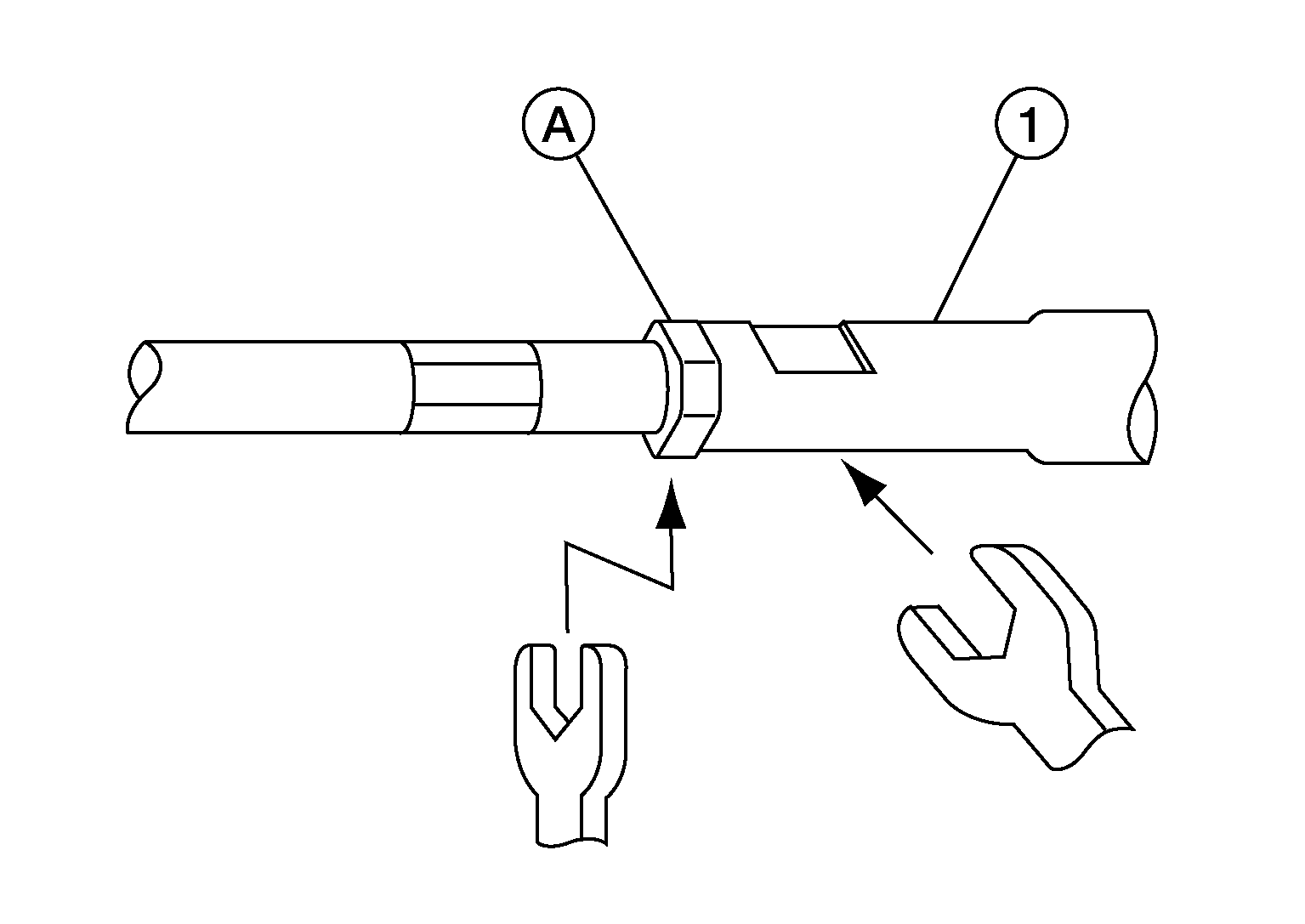

Loosen the inner socket locknut (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: To prevent damage, hold outer socket (1) across flats using suitable tool while loosening inner socket lock nut.

Adjust the toe using the inner socket.

CAUTION: Always evenly adjust toe using LH and RH inner sockets alternately and adjust the total toe-in to the standard.

Total toe-in

: Refer to Wheel Alignment (Unladen*1) .

Tighten the inner socket locknut. Refer to Exploded View .
CAUTION:
- To prevent damage, hold outer socket across flats using suitable tool while tightening inner socket lock nut.
- Inspect to make sure no boot deformation has occurred during toe-in adjustment. Adjust boot as necessary.
After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to Description .
