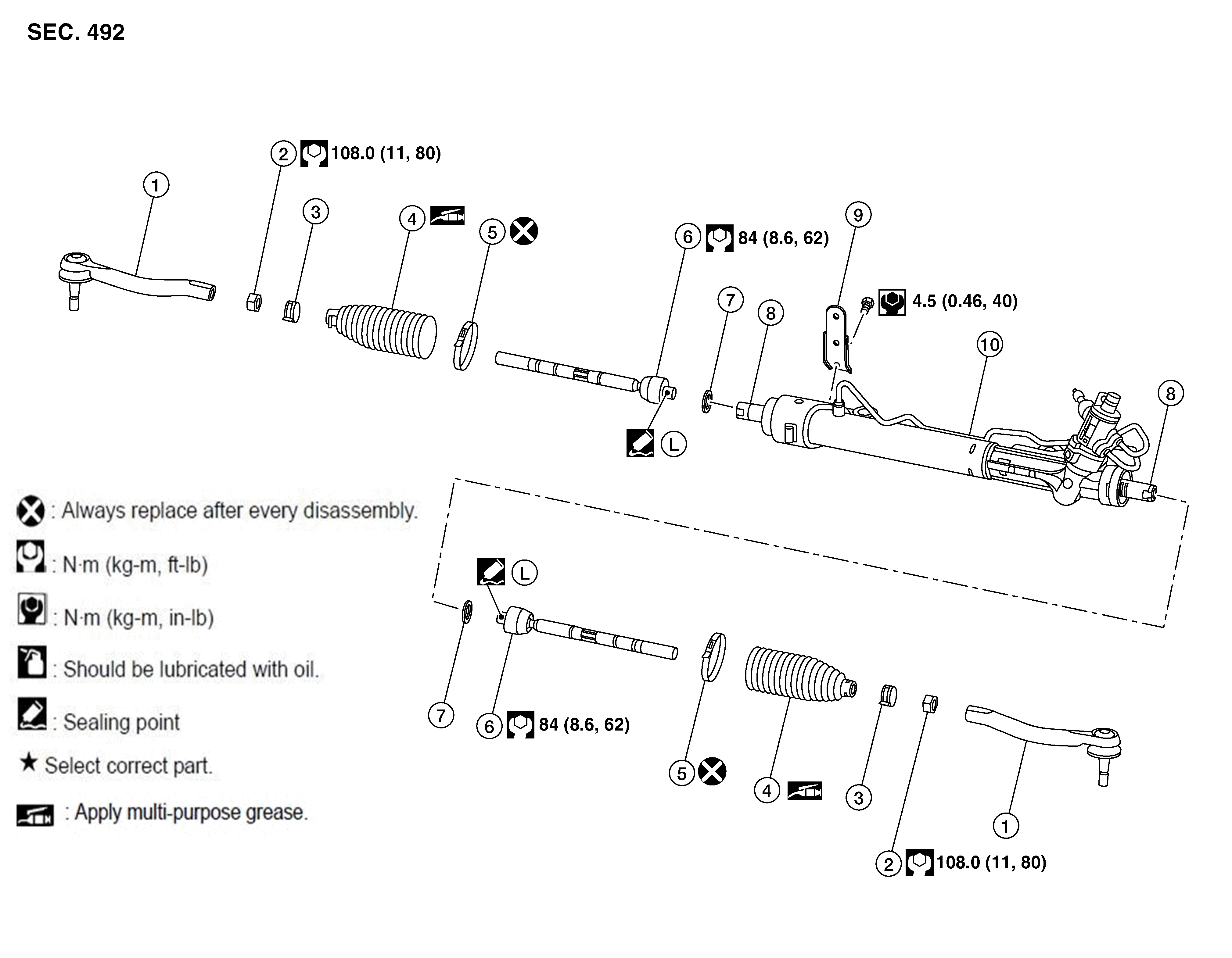

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Outer socket
|
2.
|
Inner socket lock nut
|
3.
|
Small boot clamp
|
|
4.
|
Boot
|
5.
|
Large boot clamp
|
6.
|
Inner socket
|
|
7.
|
Spacer
|
8.
|
Rack bar (not serviceable)
|
9.
|
Bracket
|
|
10.
|
Steering gear
|
