Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel tweeter grille. Refer to Exploded View .

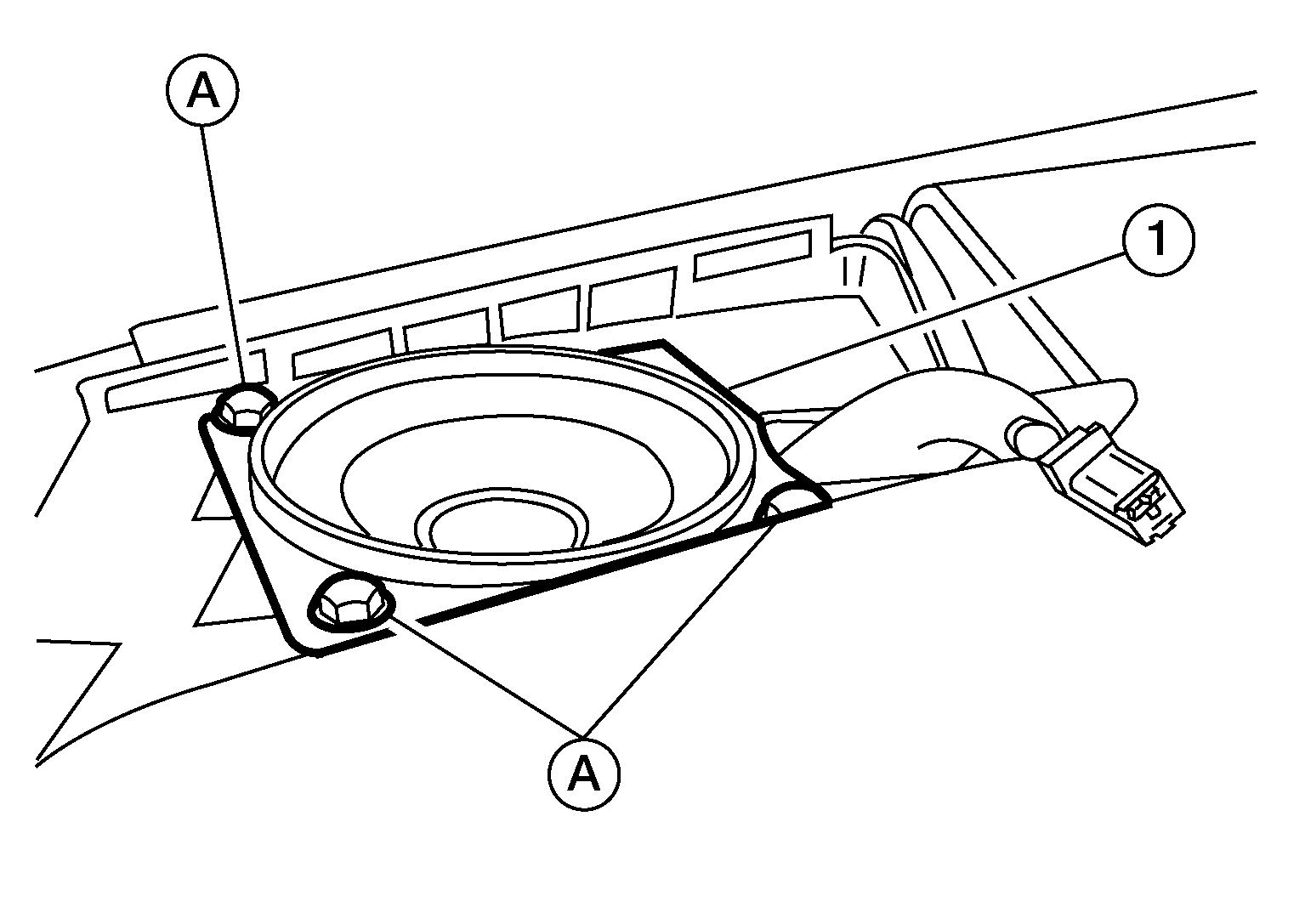

  2. Remove the screws (A), then pull out the instrument panel tweeter (1).
    GNSAWNIA2220Z-220Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from the instrument panel tweeter (1) and remove.
