Bulb Replacement: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front undercover. Refer to Removal and Installation .
  2. Partially remove front fender protector. Refer to Exploded View .
  3. Disconnect the harness connector from the front fog lamp.

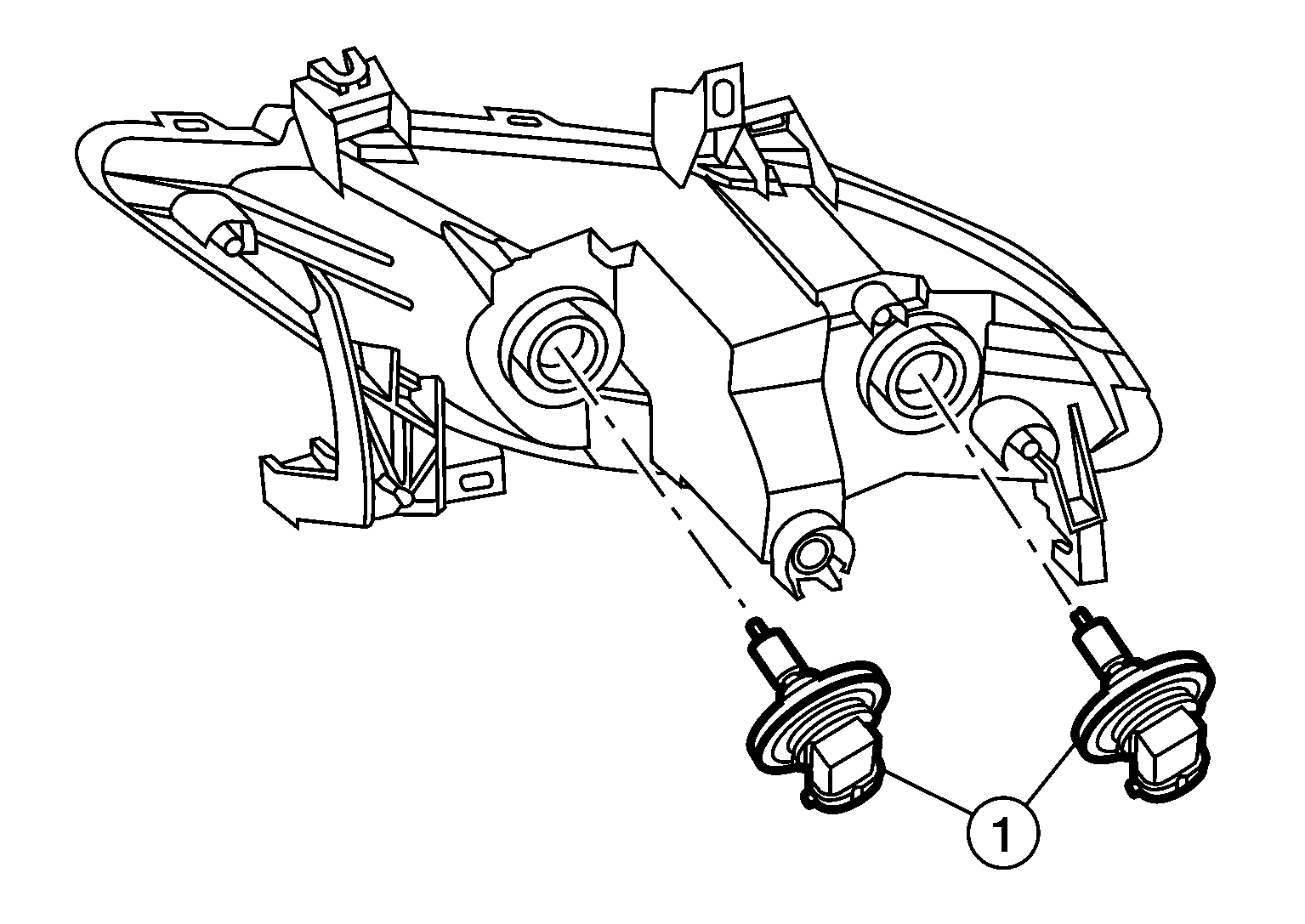

  4. Rotate bulb (1) counterclockwise and remove.
    GNSALLIA1834Z-834Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar.
