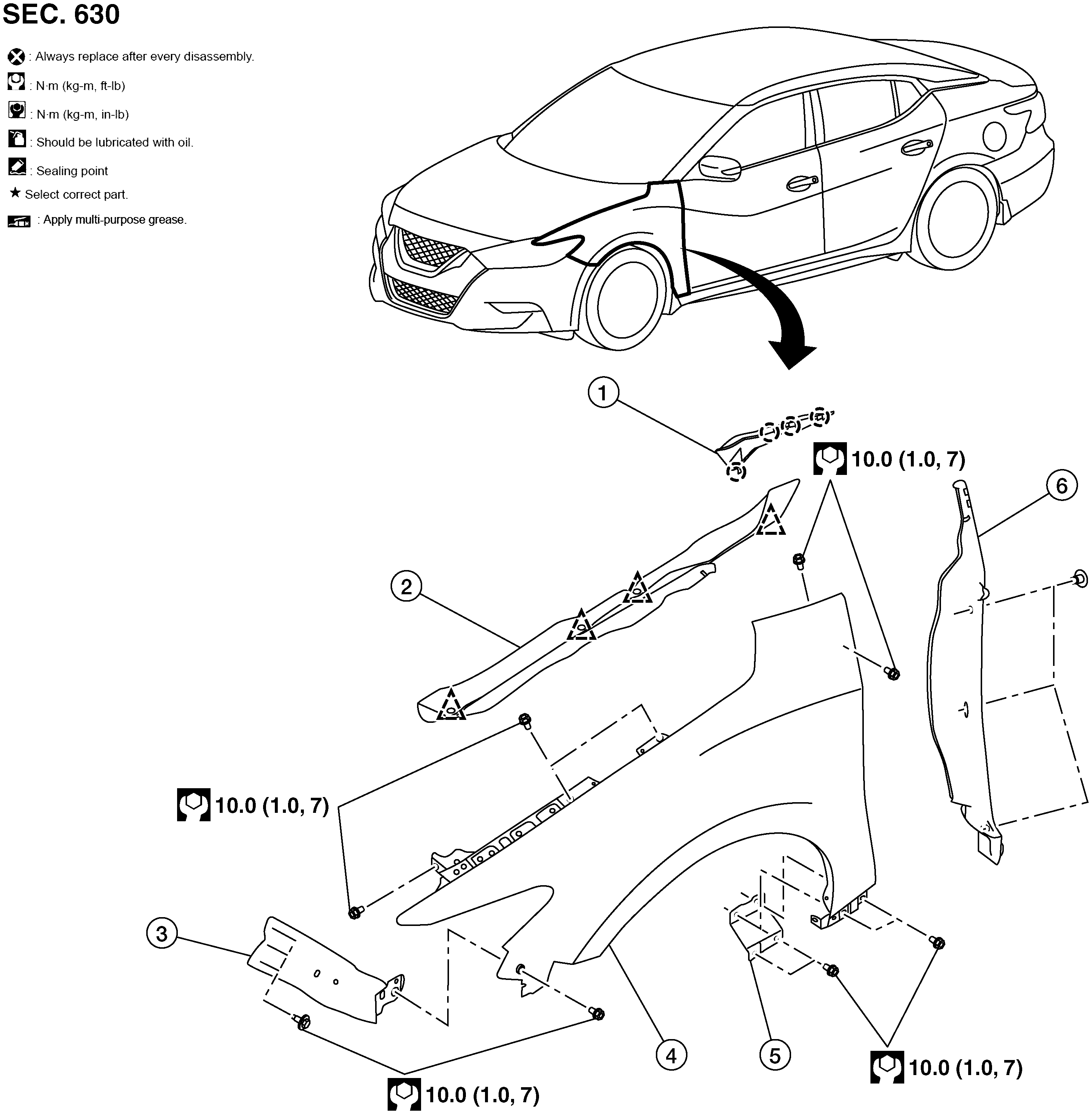

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cowl top side trim cover
|
2.
|
Hood ledge cover
|
3.
|
Front fender front bracket
|
|
4.
|
Front fender
|
5.
|
Front fender rear bracket
|
6.
|
Front fender baffle
|
|
|
Pawl
|
|
Clip
|
