Tie Rods
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Outer Tie Rod
REMOVAL
- Remove the wheel and tire assembly using power tool. Refer to Adjustment .
- Loosen the outer tie rod jam nut.

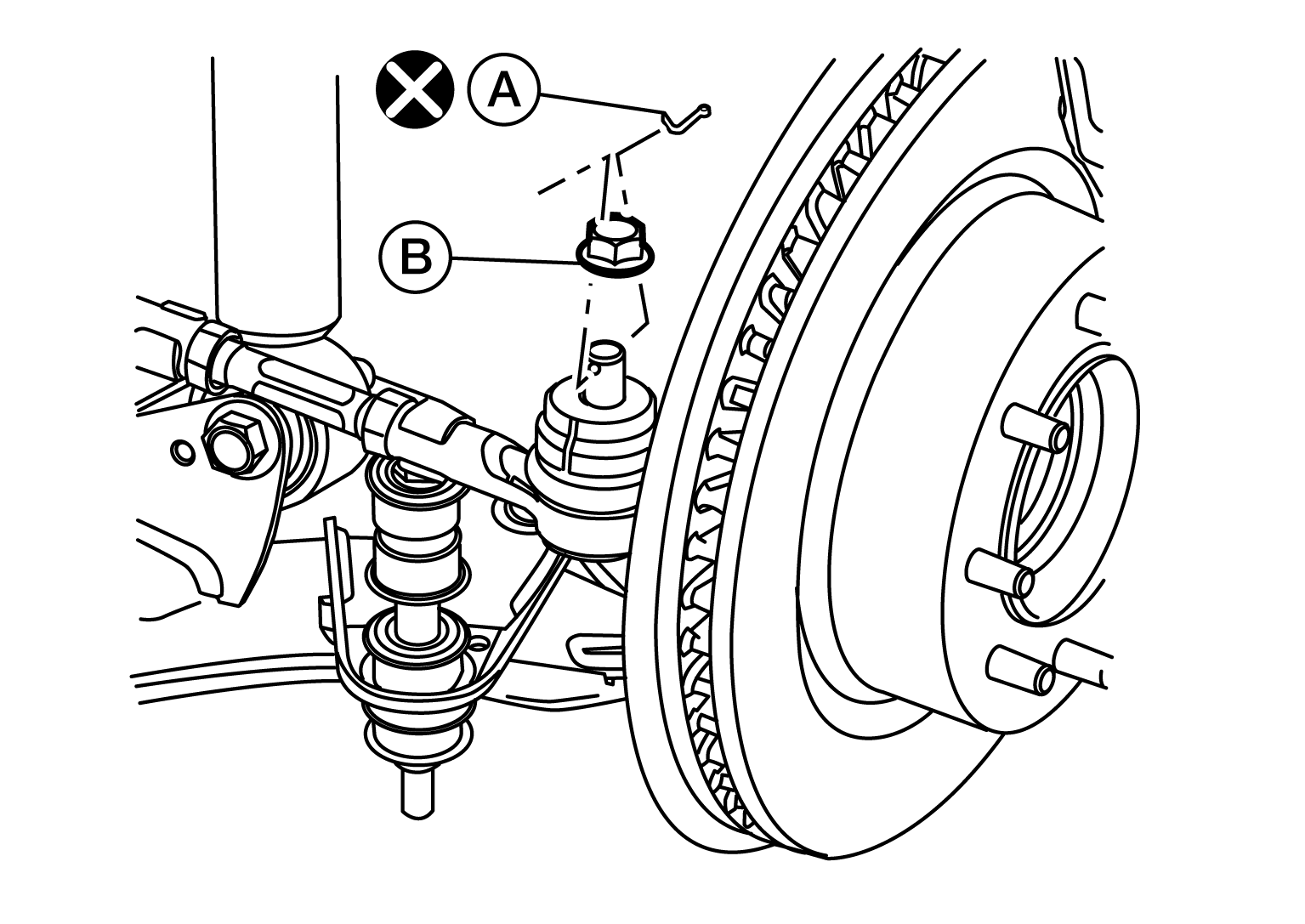

- Remove the cotter pin (A) and nut (B) from the outer tie rod. Separate the outer tie rod from the steering knuckle using suitable tool. Discard the cotter pin.
- Remove the outer tie rod from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse cotter pins.
- Tighten the fasteners to specification. Refer to Exploded View - Steering Linkage .
- Check wheel alignment. Refer to Front Wheel Alignment .
Inner Tie Rod
REMOVAL
- Remove the wheel and tire assembly using power tool. Refer to Adjustment .

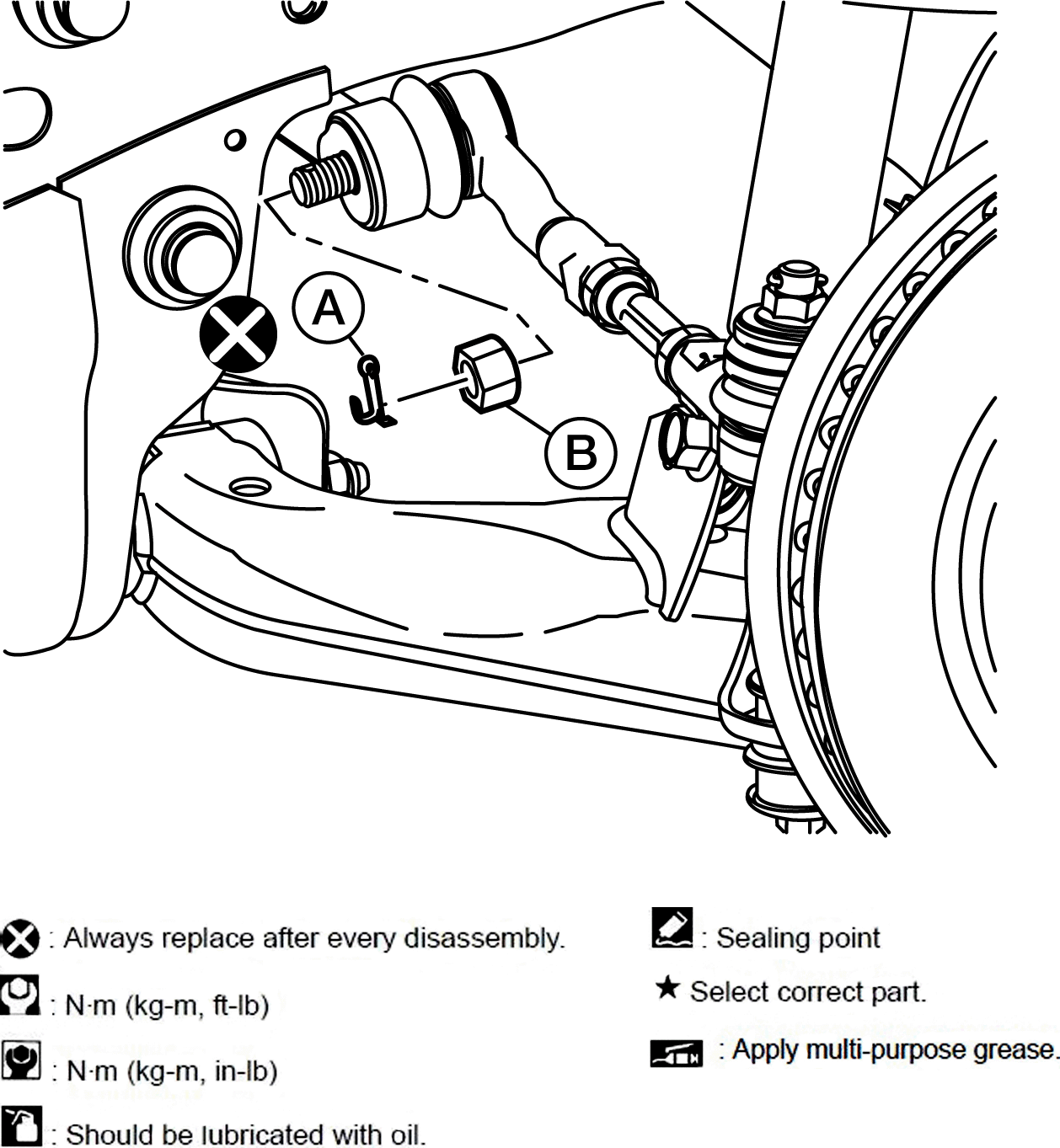

- Remove the cotter pin (A) and nut (B) from the inner tie rod. Separate the inner tie rod from the relay rod using suitable tool. Discard the cotter pin.
- Remove the cotter pin (A) and nut (B) from the outer tie rod. Separate the outer tie rod from the steering knuckle using suitable tool. Discard the cotter pin.
- Remove the inner tie rod and outer tie rod from the vehicle as an assembly. Separate the outer tie rod from the inner tie rod on a clean working surface.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse cotter pins.
- Tighten the fasteners to specification. Refer to Exploded View - Steering Linkage .
- Check wheel alignment. Refer to Front Wheel Alignment .
